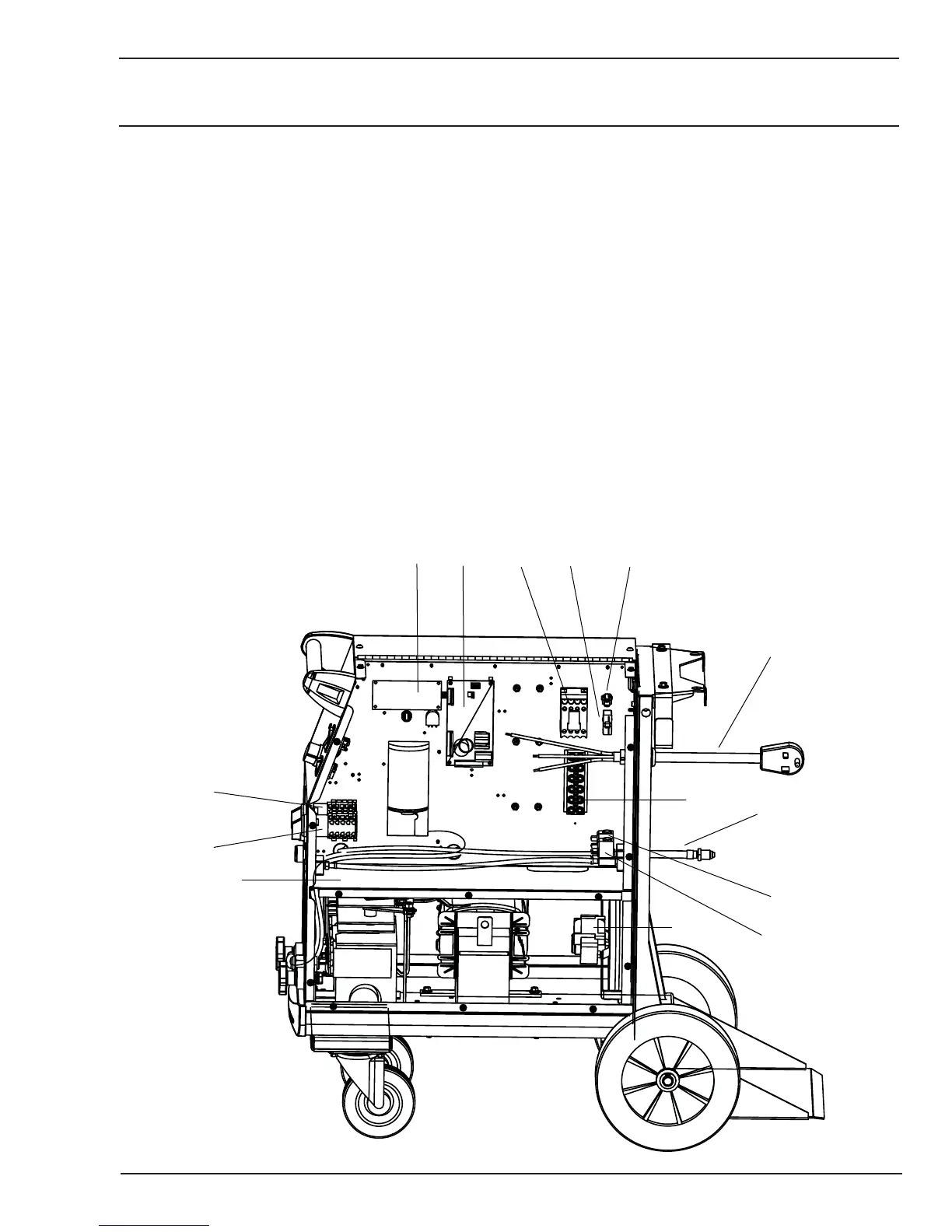

Thermal Arc A-07360 - Internal Replacement Parts (1)

FABRICATOR 210
June 19, 2006
9-5
13
11
1
12
23
7
4
5
6
9
10
14
8
Art # A-07559
9.05 Internal Replacement Parts (1)
ITEMITEM
ITEMITEM
ITEM
PP
PP
P
ARAR
ARAR
AR
T NUMBERT NUMBER
T NUMBERT NUMBER
T NUMBER
DESCRIPTIONDESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION
REF DESIGNAREF DESIGNA
REF DESIGNAREF DESIGNA
REF DESIGNA
TIONTION
TIONTION
TION
QTYQTY
QTYQTY
QTY
1 707216WBLKPKD Panel,Baffle,Fab210/251/281 1
2 7977964 PCB, Control, Fabricators PCB1 1
3 203627-001 Circuit Breaker, 5A CB2 1
4 7978041PKD Circuit Breaker, 2A CB1 1
5 401840-004 Cable, Power Cable, Fab190/210 1
6 707206PKD Gas Hose,5/8"BSP,Fabricators 1
7 7978001PKD Contactor,32A,3 Pole,24VAC W1 1
8 7976580 Terminal Block,6 Way,110A 1
9 707204PKD Solenoid Assy,Fabricators SOL1 1
10 707204PKD Solenoid Assy,Fabricators SOL2 1
11 7978042PKD Switch,20A,4 Pos,Fab210 SW3 1
12 7978042PKD Switch,20A,4 Pos,Fab210 SW4 1
13 7977965PKD PCB,Timer,Fab210/251/A2281 PCB2 1
14 7978038PKD Fan Assy, 208-230VAC,8",24VAC M1 1
