Thermal Arc A-07360 - Internal Replacement Parts-Spool Assembly

FABRICATOR 210
June 19, 2006
9-7

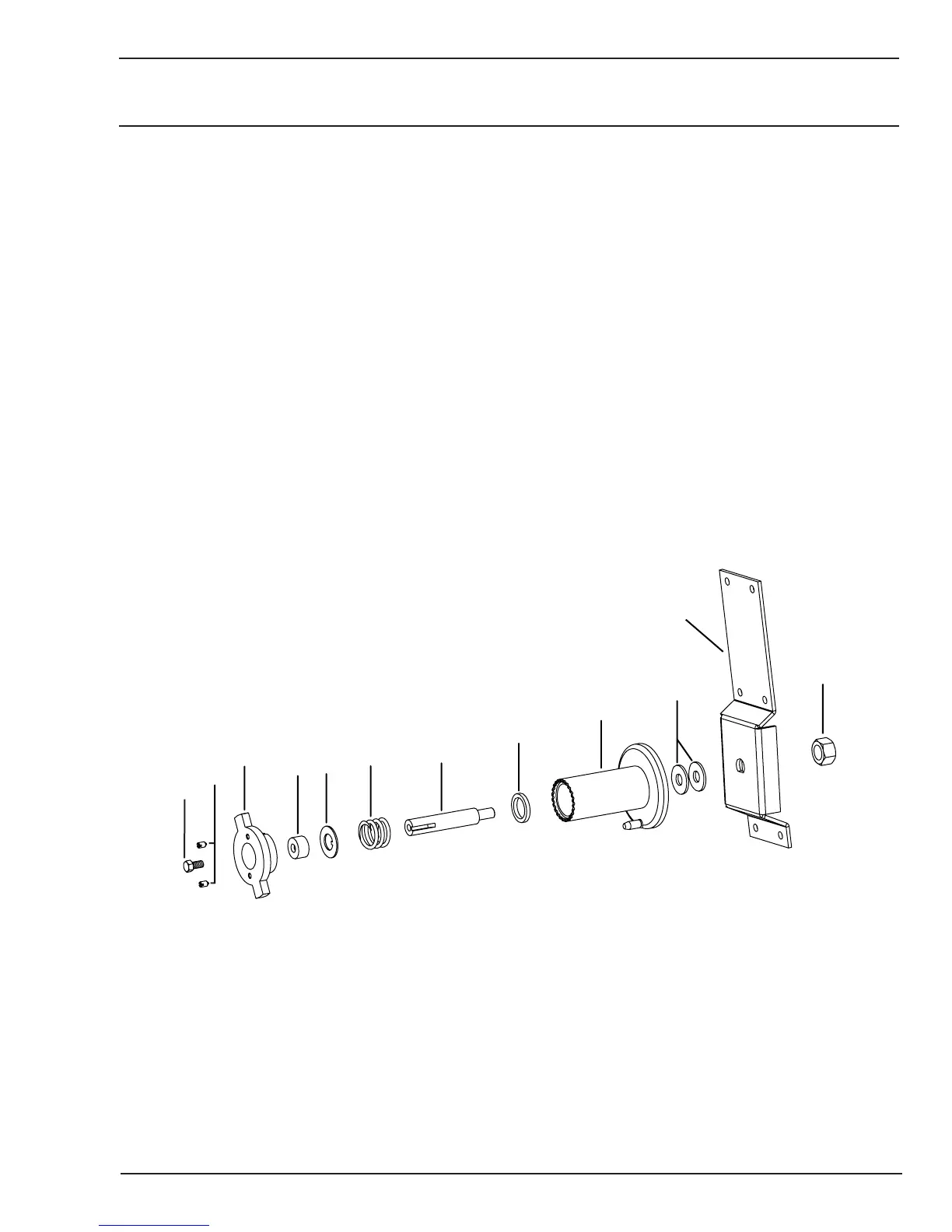

9.07 Internal Replacement Parts-Spool Assembly
ITEMITEM
ITEMITEM
ITEM
PP
PP
P
ARAR
ARAR
AR
T NUMBERT NUMBER
T NUMBERT NUMBER
T NUMBER
DESCRIPTIONDESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION
QTYQTY
QTYQTY
QTY
1 See Note Screw,Hex HD,3/8"-16x3/4",STZP 1
2 170459-001 Plunger, Spring, Nut Hub 2
3 405377 Nut, Wire Spool Hub 1
4 374552-001 Spacer,Spool Hub 1
5 374551 Washer,3/4",Flat,Keyed,Hub 1
6 400562-027 Spring,Spool Hub 1
7 707251PKD Shaft,Wire Spool Hub 1
8 405448 Washer,1-1/64",Flat,Nylon,Hub 1
9 405376 Hub, Wire Spool 1
10 See Note Washer,1/2" IDx1.45" OD,Flat 2
11 707197WBLKPKD Bracket,Wire Spool,Fab210/251 1
12 See Note Nut, Hex, 1/2"-13 1
Note
These parts are available at most hardware stores.
1
2
3
4
5
6
7
Art # A-07517
8
9
10
11
12
