INSTALLATION 3-6 Manual 0-2971
C. Installing Optional Two - Stage Air Filter Kit
This optional two - stage air line filter is also for use on compressed air shop systems. Filter removes moisture
and contaminants to at least 5 microns.
Connect the air supply as follows:
a. Attach the Two Stage Filter bracket to the back of the power supply per instructions supplied with the
filter assembly.
NOTE
For a secure seal, apply thread sealant to the fitting threads according to manufacturer's instructions. Do Not use
Teflon tape as a thread sealer as small particles of the tape may break off and block the small air passages in the torch.
b. Connect the two stage filter outlet hose to the inlet port of the Regulator / Filter Assembly.
c. Use customer - supplied fittings to connect the air line to the Filter. A 1/4 NPT to 1/4" hose barbed fitting
is shown as an example.

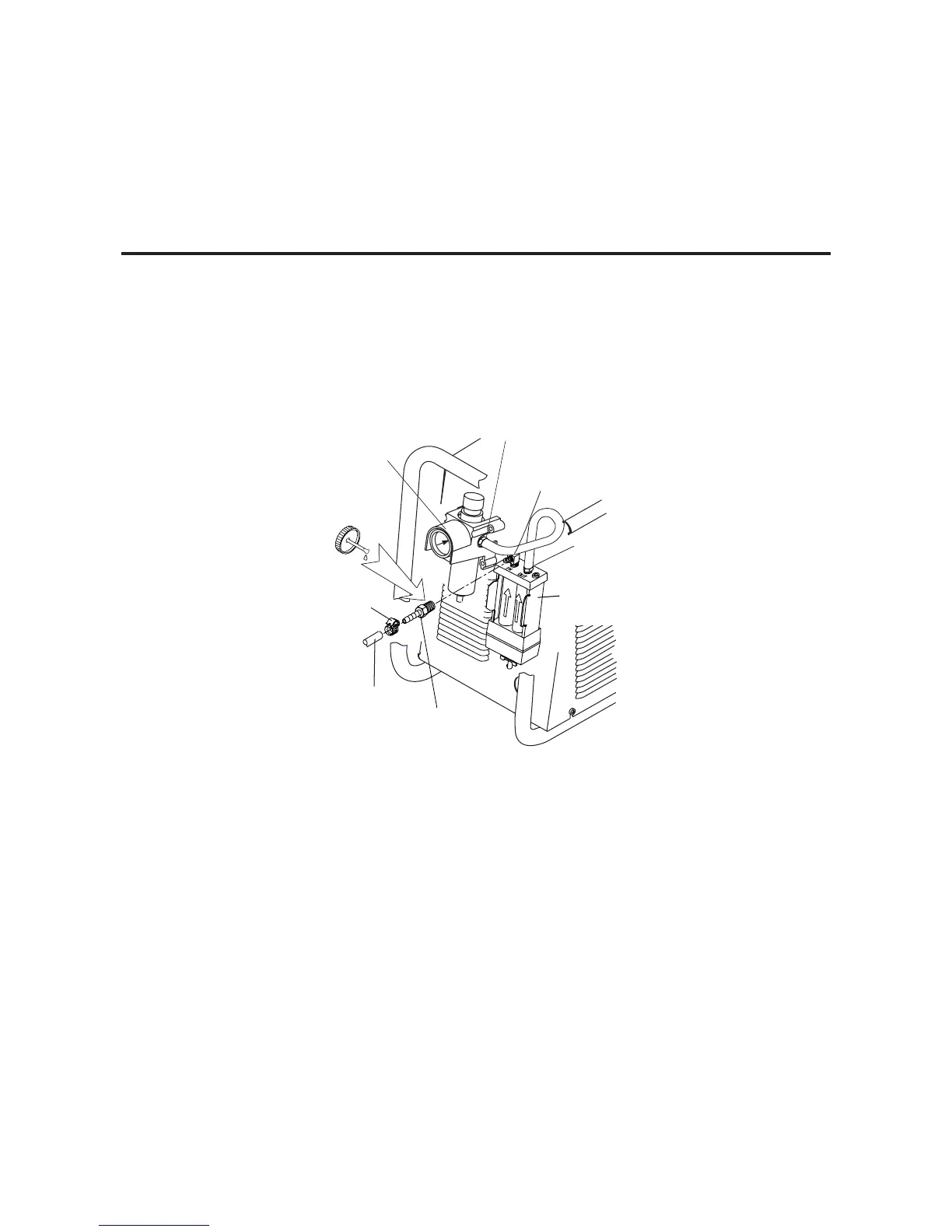

Art # A-03004
Regulator/Filter
Assembly
Hose
Clamp
1/4 NPT
Hose Fitting
1/4" (6 mm) Gas
Supply Hose)
2-Stage Filter
Inlet Port (IN)
Outlet Por
(OUT)
Regulator Inlet Port
Two Stage
Filter
Assembly
Optional Two - Stage Filter Installation
