G. Set Operating Pressure

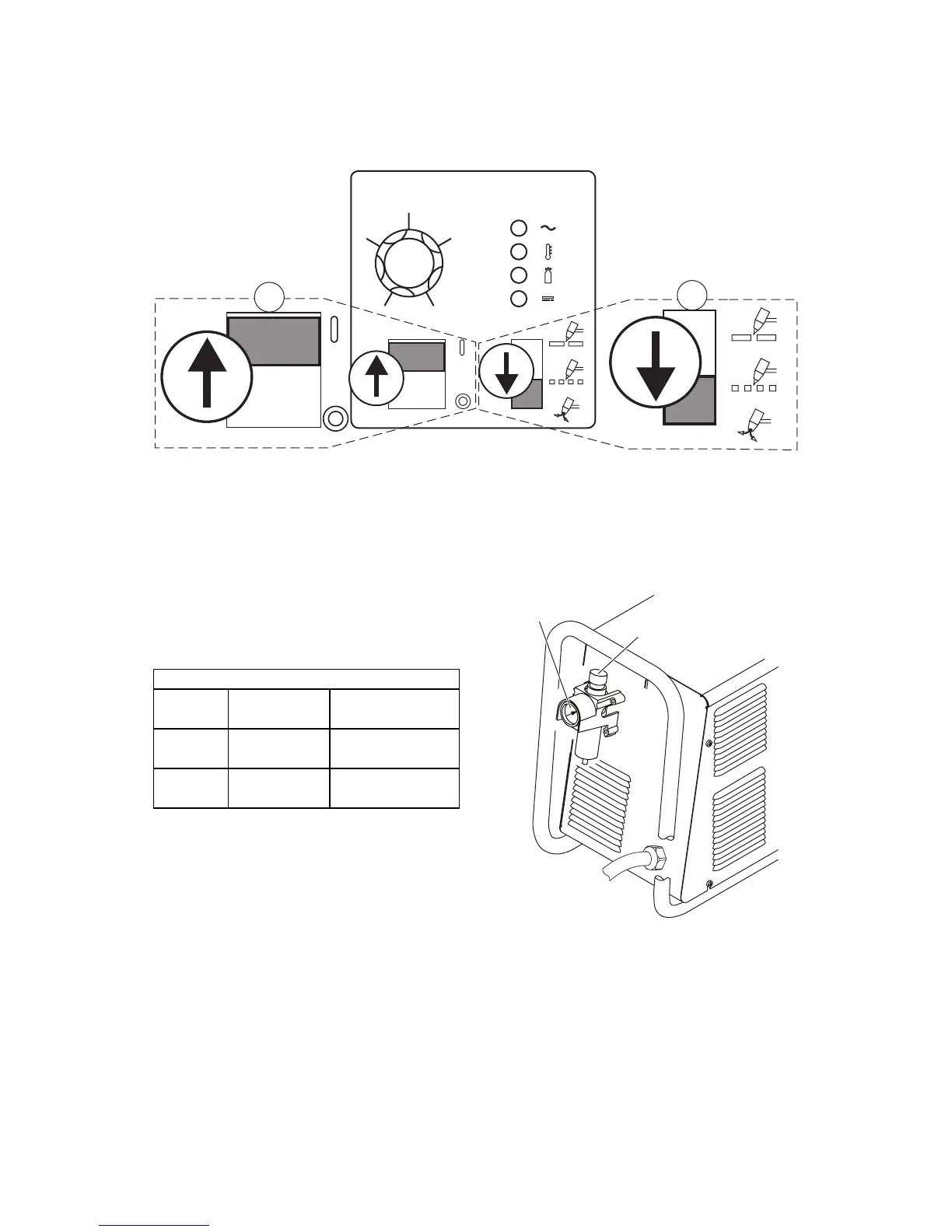

1. Place the Power Supply RUN / Rapid Auto Restart / SET switch to the SET (down) position. Gas will flow.
20
25
30
35
40
A
A-03690
1
2
2. Adjust gas pressure to 65 - 85 psi / 4.5 - 5.9 bar. Refer to the chart for pressure setting details.
Leads
Length
SL60
(Hand Torch)
SL100
(Machine Torch)
Up to 25'
(7.6 m)
75 psi
5.2 bar
65 psi
4.5 bar
Over 25'
(7.6 m)
85 psi
5.9 bar
70 psi
4.8 bar
CutMaster 51 Gas Pressure Settings
Art # A-03831
65 - 85 psi /
4.5- 5.9 bar
Pressure Control Knob /
Bouton De Contrôle
de Pression
