TORCH MAINTENANCE 7-2 Manual 0-4805 Auto-Cut 200
7.02 O-Ring Lubrication
Lubricate all three O-Rings on the Cartridge Assembly and all three O-Rings on the Torch Head periodically
with O-Ring Lubricant supplied. Remove the snap ring on the cartridge assembly and slide the locking ring
downward for access to the O-Ring under the locking ring.

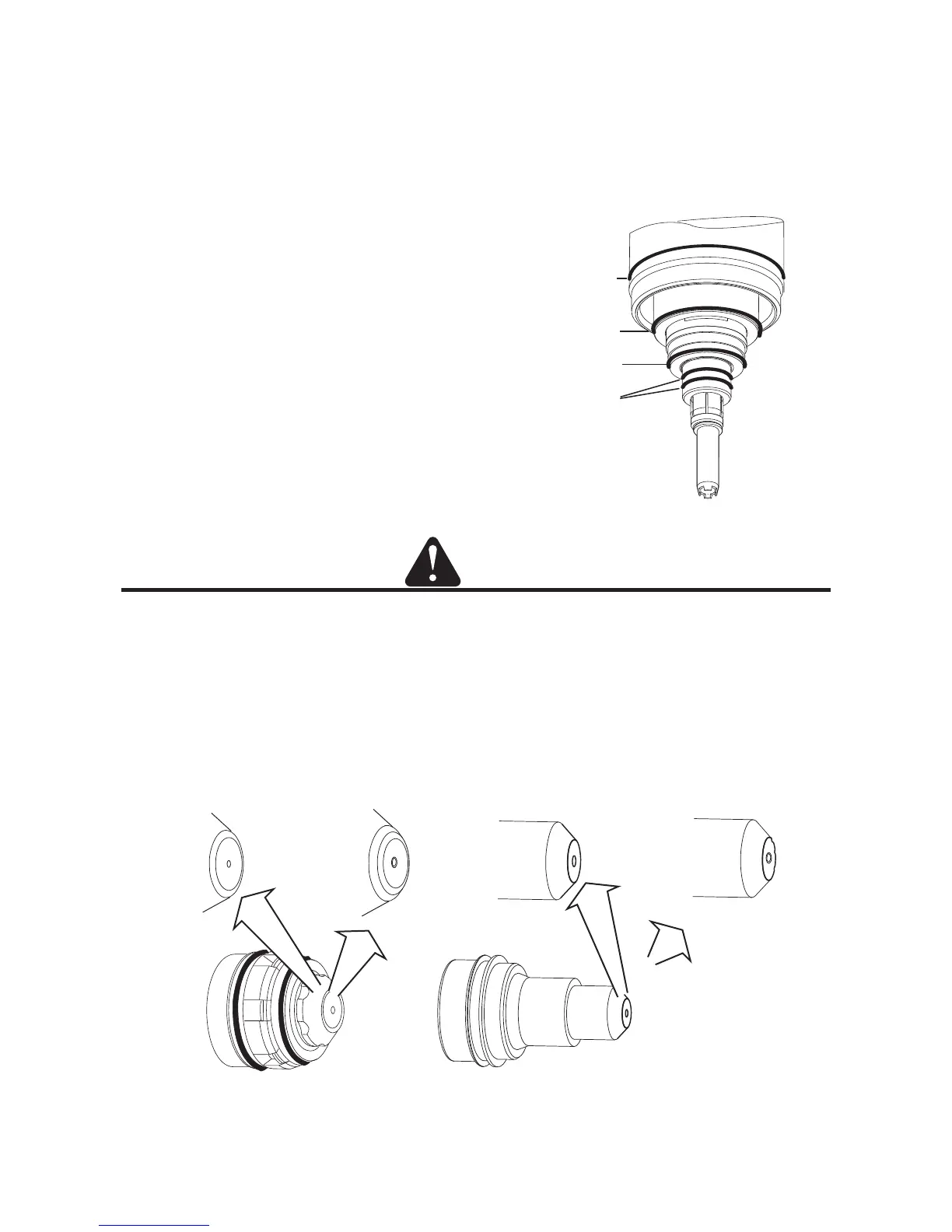

Art # A-04066_AC
O-Rings
Cat. No. 9-3027
Cat. No. 9-3026
Cat. No. 9-3025
Torch Head
Cat. No. 9-9041
CAUTION
Use only Thermal Dynamics No. 9-4893 O-Ring Lubricant (Christo Lube MCG-129) with this torch part. Use of
other lubricants may cause irreparable damage to the torch.
7.03 Parts Wear
Replace the Gas Distributor if it is charred or cracked.
Replace the Gas Distributor if the flange is damaged in any way.
Replace the tip and/or electrode if they are worn.
Good Electrode
Worn Electrode
Good Tip
Worn Tip
Art # A-04861
