Regulation on the stove is set in the way to modulate (power goes into
lowest one ) it's work when 4 C is reched below set temperature – read
6.5 Modulation

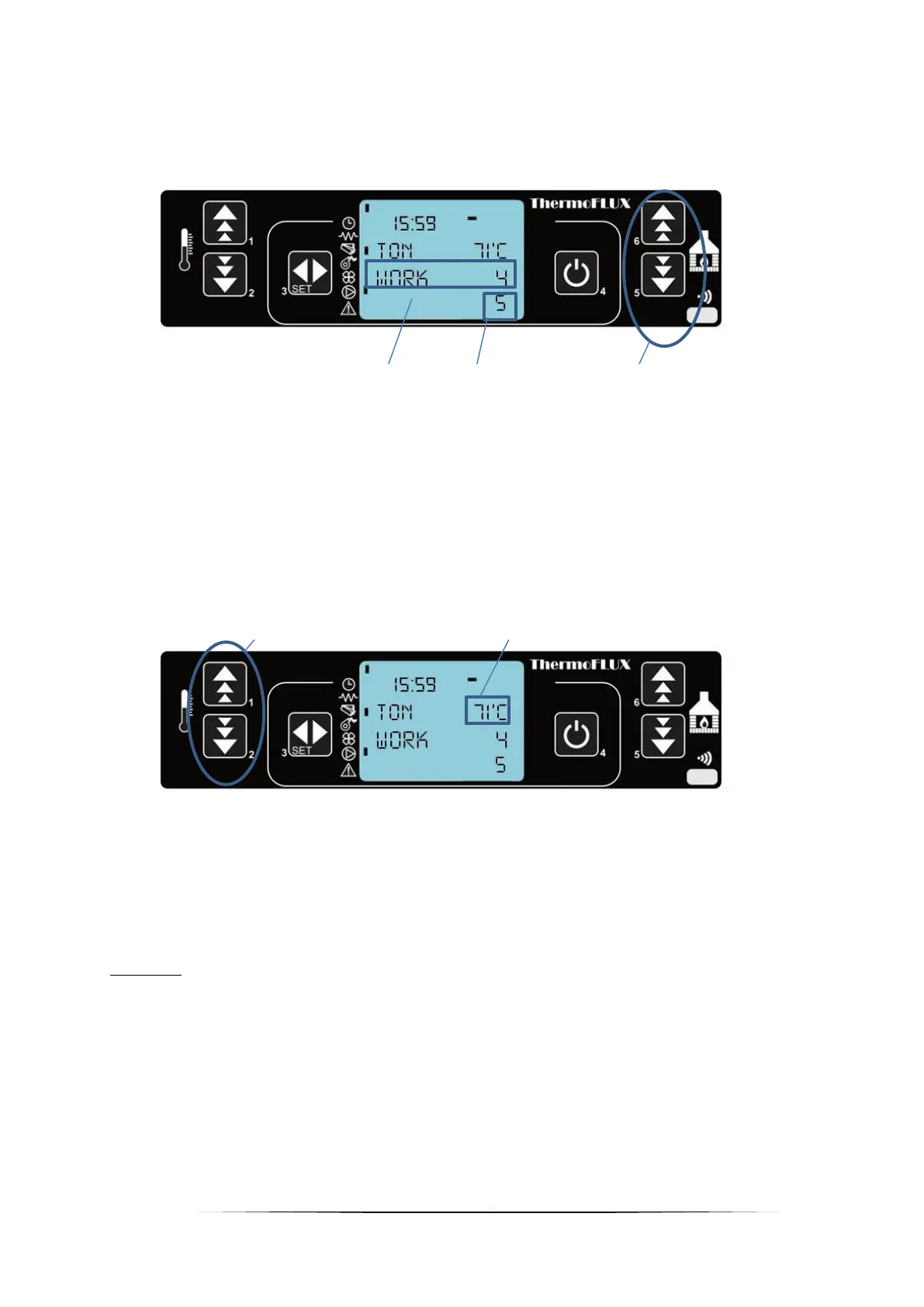

7.4 Adjustment of water temperature in stove
Adjustment of water temperature in the stove is done by pressing button 1
or 2 (*1). Temperature can be set in range from 55 °C to 80 °C (*2). These
are factory settings and it is not possible to set lower or higher temperature
then above mentioned.
7.5 Modulation
When water temperature in stove is near to set value regulation begins to modulate
its work and changes power to lowest. Modulation starts 4 °C below set temperature.
EXAMPLE: We have adjusted water temperature on 73°C and power 5, regulation will
work in power 4 when temperature is 70°C, on 71°C stove will work in power 3, on
72°C power is 2 and when 73°C is reached then stove is working in power 1.
MODULATION is displayed.
