BA EN 12.2019 Modification 02 from 01.12.19. Copies are not subject to the change service. 22 of 41
5.4.3 Vertical delivery
Mortal danger due to tipping over of the PHE
The PHE can tip over due to its high dead weight.
➢ Anchor or bolt the PHE firmly at the installation site before you undo the lifting means.
Mortal danger due to the PHE falling down
People can be killed by the high dead weight of the PHE if the lifting means are incorrectly dimensioned and
attached.
➢ Never attach the lifting means to the tensioning screws.
➢ Never attach the lifting means to the connections or intermediate frames.
➢ Ensure that the lifting means can bear the weight of the PHE. (Weight declarations in the order-related
documents, [► chapter 11]
Follow the following instructions:

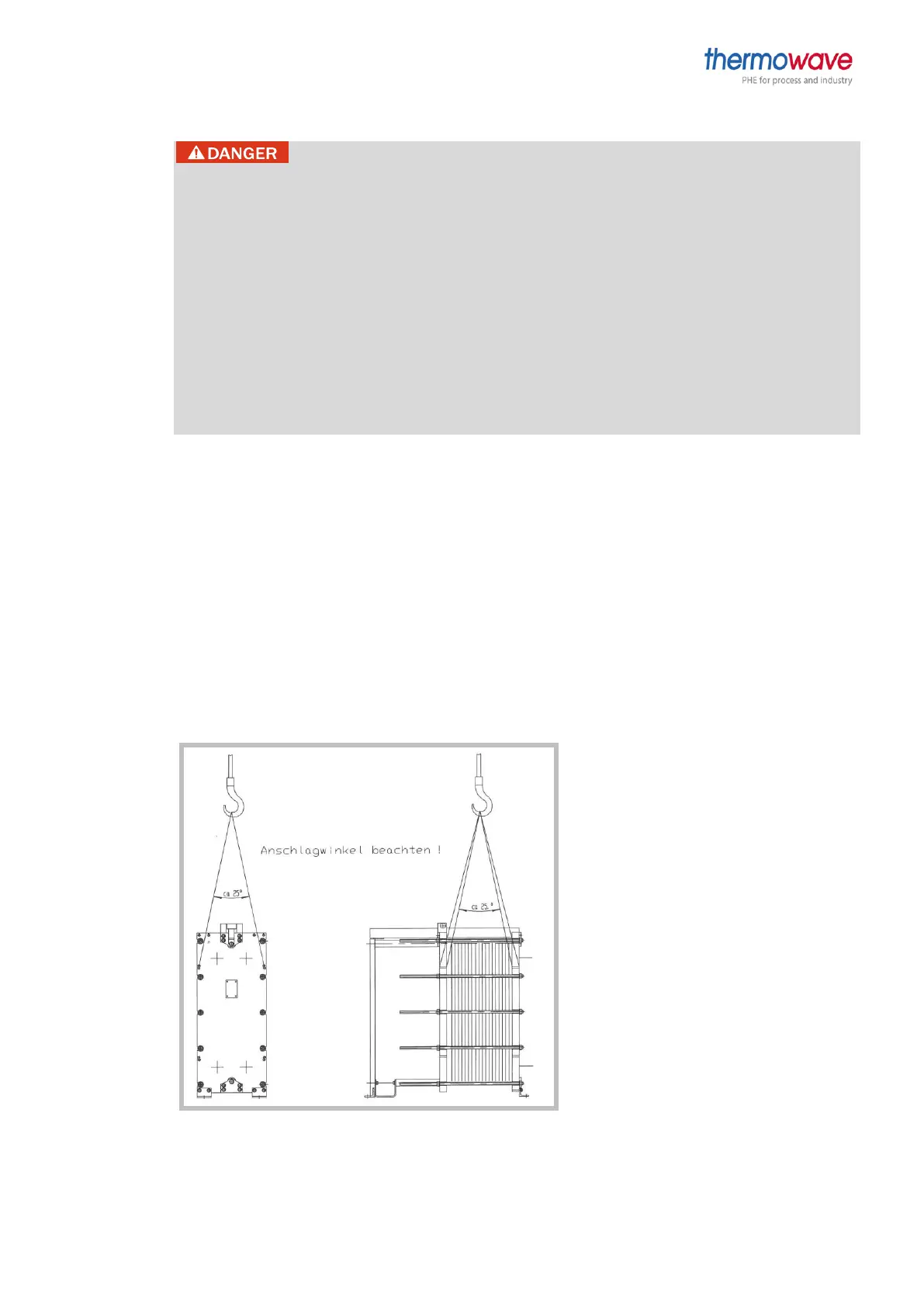

1. Attach suitable lifting means to the designated suspension eyes of the frame plates (Figure 28). Chain
suspensions may not be used. The PHE can be damaged and slip off.
2. Lift the PHE carefully in order to prevent lateral pendular movements.
3. Ensure that the stop angle is at the correct level of ca. 25° (Figure 28).
4. Carefully lower the PHE onto the base of the apparatus.
5. Use the order-related documents or the information specified on the name plate to check the tensioning
dimension. If these values are not in line with each other, contact thermowave’s customer service
department.
6. Check whether the screw locking varnish is ruptured [► chapter 4.1.2.2]. In case of damage, contact
thermowave’s customer service department.
Figure 28
