Page 9
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.3. Q-Series KMASS Modules
There are nine varieties of Q-Series KMASS Modules, each featuring a combination of one or
more USB HID, PS2 to USB HID, USB 2.0 and two-way, unbalanced Audio ports, including
models with dual ports and redundant fibers.
(See pg. 22 to contact a Thinklogical® sales
representative for more details.)
1.3.1. USB 2.0, USB HID, Audio and PS2 Modules
Each
Transmitter
(TX)
Module
features a USB HID port, a USB 2.0 port, two PS2 ports* (for local
keyboard & mouse) and a LINE IN and MIC OUT port. The
Receiver
(RX)
Module
features four
USB HID ports (including keyboard & mouse), four USB 2.0 ports and a LINE OUT and MIC IN
port. Each module also has a pair of fiber connectors used for transferring data between the
Transmitters and Receivers. Status LEDS provide system information.
*Use either the USB HID or the PS2 transmitter ports for keyboard and mouse. If both are used simultaneously, the HID
port will over-ride the PS2 ports.

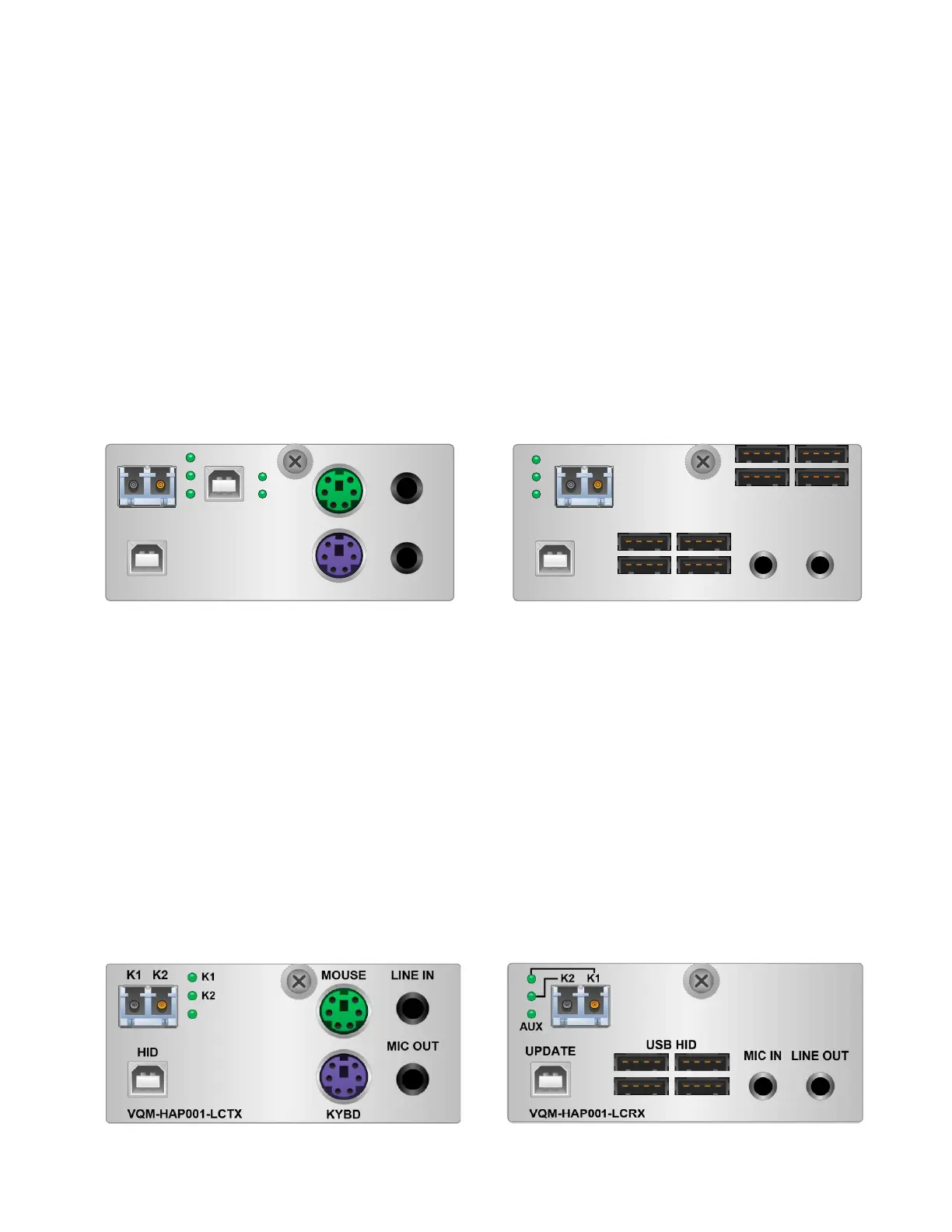

VQM-UAP001-LCTX (Transmitter) VQM-UAP001-LCRX (Receiver)
VQM-UAP001 LED functions:
TX: K 1; SFP Output Ready LINK; USB2.0 Extension Connected to Rx
K 2; Fiber Input Valid HOST; USB2.0 Link Connected CPU to Rx Ports
RX: K 2; SFP Output Ready K 1; Fiber Input Valid (Unmarked LEDs are AUX)
1.3.2. USB HID, Audio and PS2 Modules
Each
Transmitter
(TX)
Module
features two PS2 ports* (for local keyboard & mouse) and a LINE
IN and MIC OUT port. The
Receiver
(RX)
Module
features four USB HID ports and a LINE OUT
and MIC IN port. Each module also has a pair of fiber connectors used for transferring data
between the Transmitters and Receivers. Status LEDS provide system information.
*Use either the USB HID or the PS2 transmitter ports for keyboard and mouse. If both are used simultaneously, the HID
port will over-ride the PS2 ports.
VQM-HAP001-LCTX (Transmitter) VQM-HAP001-LCRX (Receiver)
