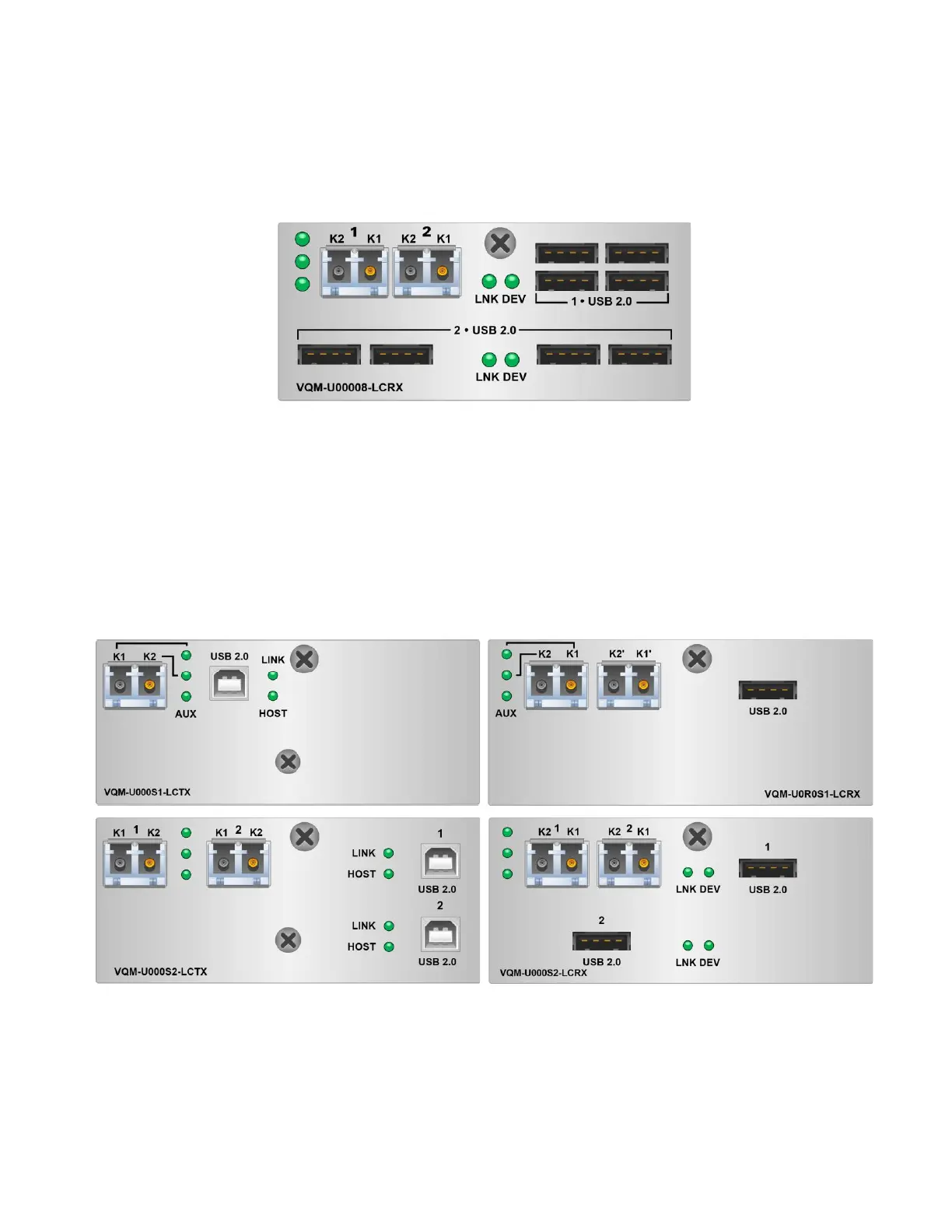

1.3.9. Dual 4-Port USB 2.0 Receiver Module
Each
Receiver
(RX)
Module
features two 4-Port sets of USB 2.0 A outputs. Each module also
has two pairs of fiber connectors used for transferring data between the Transmitters and
Receivers. Status LEDS provide system information.
VQM-U00008-LCRX (Receiver)
1.3.10. Secure USB 2.0 Transmitter and Receiver Modules
Thinklogical’s Secure Q-Series Modules communicate only with other Secure Q-Series
Modules.
Direct fiber-optic links prevent unauthorized signal access. Each Transmitter (Tx) and
Receiver (RX) Module features either one or two USB 2.0 ports and one or two pairs of fiber
connectors used for transferring data between the Transmitters and Receivers. Status LEDS
provide system information.*
VQM-U000S1-LCTX (Transmitter) VQM-U0R0S1-LCRX (Receiver)
VQM-U000S2-LCTX (Transmitter) VQM-U000S2-LCRX (Receiver)
*On the VQM-U0000S2-LCRX, the DEV LED does not function.
