Page 8
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1.2.2. Mixing Q-Series Modules and TLX Modules in a single Chassis
Besides Q-Series products, Thinklogical also carries the TLX line of 10G extension products in a
modular format. Non-Q-Series modules, such as TLX, are compatible with the Q-4300, Q-2300
and Q-1300 chassis as well as their own CHS-4, CHS-2 and CHS-1 chassis. However, because
VQM modules generate less heat than TLX modules, they were not deigned to allow air-flow through
their enclosures as in TLX modules.
1.2.2.1. Air-Flow through VQM Modules
To avoid over-heating of TLX modules when mixed with non-TLX modules, the simple solution
is to always install all non-TLX modules on the left side of the chassis (as looking from the back
where the modules are loaded) and install all TLX modules on the right side, next to the cooling-
air intake fans (The side next to the power cord receptacles). This will allow proper air-flow over the
warmer TLX modules and will prevent over-heating. This is true for both the Q-4300 and Q-2300
Chassis and for both the CHS-4 and CHS-2 Chassis.
Warning! To avoid over-heating of TLX modules, always install all non-TLX modules
on the left side of the chassis (as looking from the back where the modules are loaded)
and install all TLX modules on the right side, next to the cooling-air intake fans (The side next
to the power cord receptacles) .
Note: Non-TLX modules, such as Thinklogical’s Q-Series (VQM), were not deigned to
allow air-flow through their enclosures as in TLX modules.

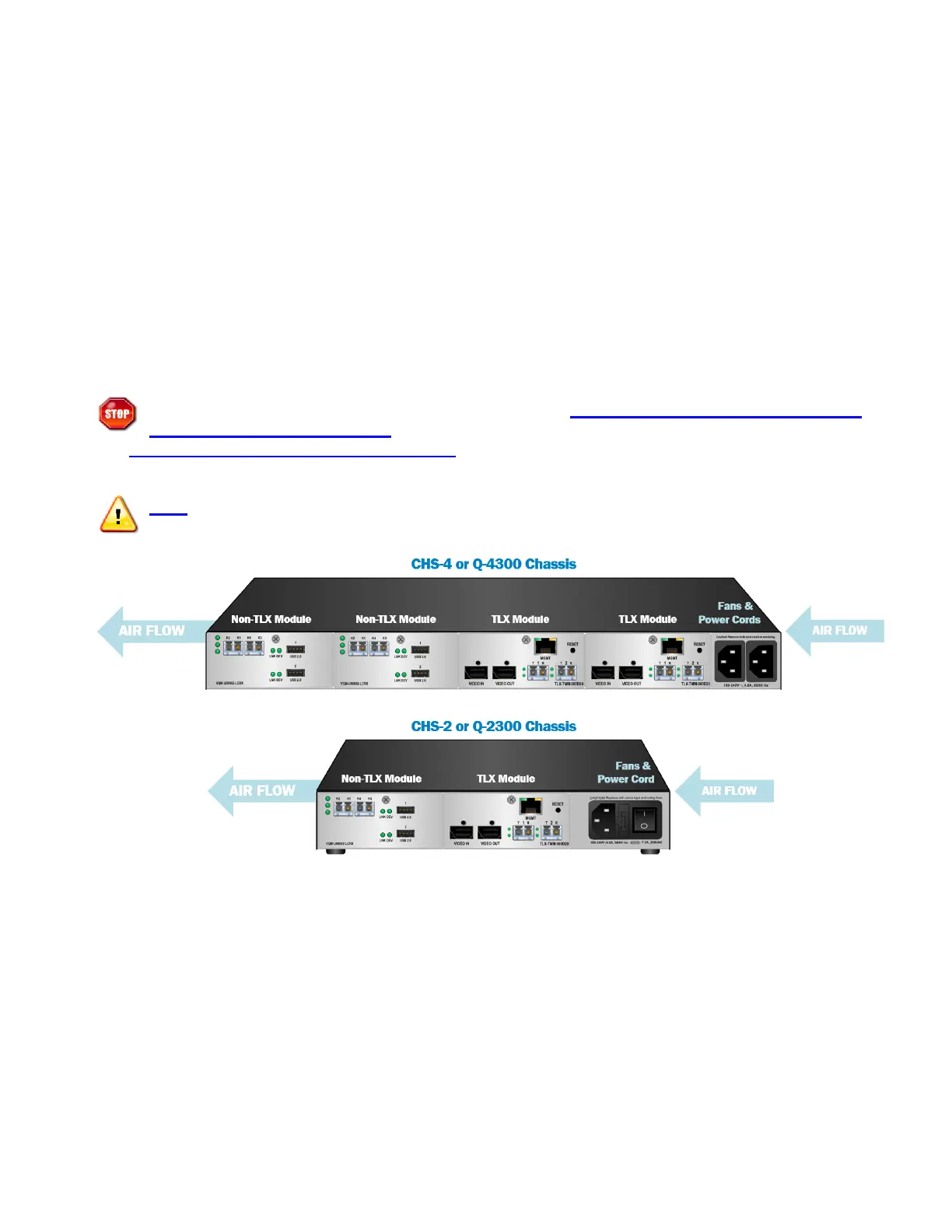

To avoid over-heating, always install all non-TLX modules on the left side of the chassis and install
all TLX modules on the right
