3. Updating Q-Series KMASS Modules
FPGA and Firmware Upgrade Applications are available through Thinklogical’s® Technical
Assistance Department. Please call us at 1-203-647-8700 and we’ll be happy to provide you with
all the assistance you’ll need to keep your system up and running at its optimum performance
level.
USB-A
CPU
USB-B
Quad Module Rack Mount Chassis
Q-4300
enterPOWER
POWER
UPDATE
Thi nkl ogi cal
Q4300 Rack Ct r l V23. XX

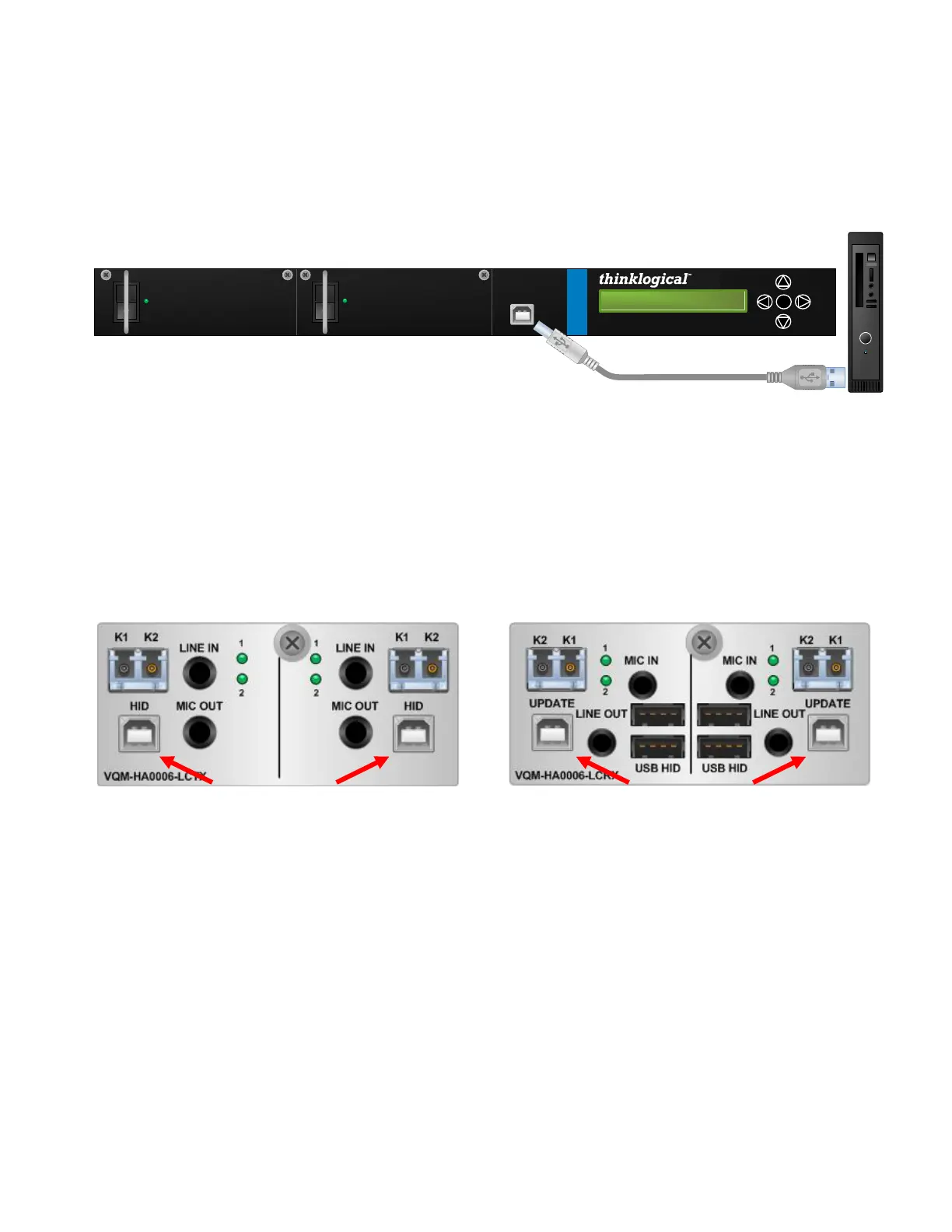

Q-4300 Front Panel
3.1. HID Microprocessor Programming
Each Q-Series KMASS Transmitter Module with USB HID has an HID PORT that serves as both an
HID Microprocessor Programming port and as a USB HID source. Each Q-Series KMASS Receiver
Module with USB HID has an UPDATE PORT that serves as an HID Microprocessor Programming
port.
A transmitter’s USB HID port is to update DEVICE firmware. A receiver’s USB UPDATE
port is to update HOST firmware.
DEVICE HOST
When updating the transmitter device port, the USB cable must be removed from the HID port
while the chassis power is off in order to reboot the module.
