Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®

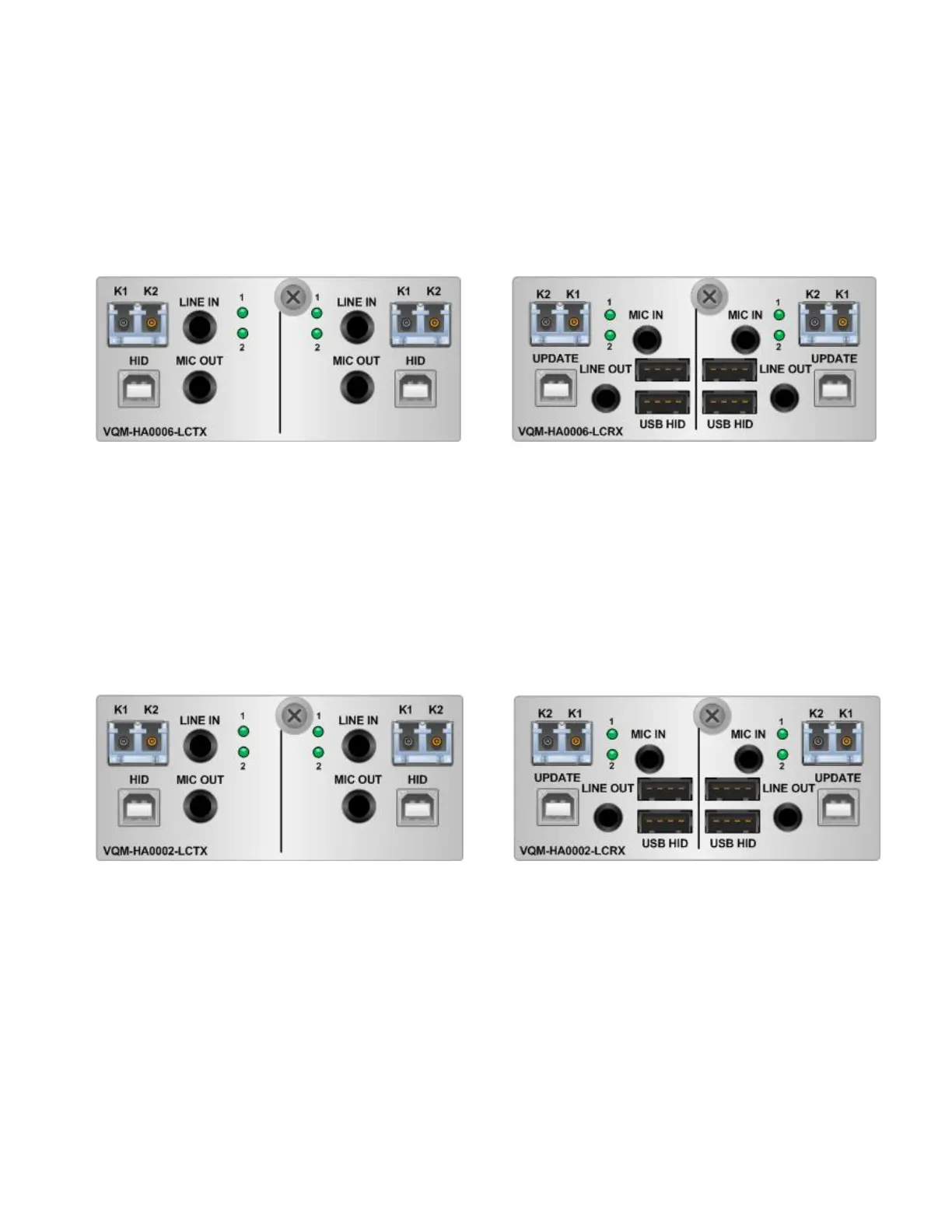

1.3.3. Dual USB HID and Audio Modules (6 Gbps)
Each Dual Transmitter (TX) Module features a pair of USB HID ports and a pair of LINE IN and
MIC OUT ports. The Dual Receiver (Rx) Module features two pairs of USB HID ports and a pair
of LINE OUT and MIC IN ports. Each module also has two pairs of fiber connectors used for
transferring data between the Transmitters and Receivers at a data rate of 6 Gbps. Status LEDS
provide system information.
VQM-HA0006-LCTX (Transmitter) VQM-HA0006-LCRX (Receiver)
1.3.4. Dual USB HID and Audio Modules (2 Gbps)
Each Dual Transmitter (TX) Module features a pair of USB HID ports and a pair of LINE IN and
MIC OUT ports. The Dual Receiver (Rx) Module features two pairs of USB HID ports and a pair
of LINE OUT and MIC IN ports. Each module also has two pairs of fiber connectors used for
transferring data between the Transmitters and Receivers at a data rate of 2 Gbps. Status LEDS
provide system information.
VQM-HA0002-LCTX (Transmitter) VQM-HA0002-LCRX (Receiver)
VQM-HAP001, VQM-HA0002 and VQM-HA0006 LED functions:
TX: LED 1; SFP Output Ready LED 2; Fiber Input Valid
RX: LED 1; Fiber Input Valid LED 2; SFP Output Ready
