Page 17
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
2.5. Q-Series System Connections
The Q-4300’s chassis allows up to four hot-swappable interface modules to be used in a variety
of applications, as either transmitters, receivers, or as transceivers. Q-Series KMASS modules
support audio, high speed USB 2.0 (480 Mbps) and low speed USB HID (1.5 Mbps). Transmitters
can be connected directly to receivers or through a KVM Matrix Switch.
Also see the Quick Start Guide in Appendix A, pg. 23.
Mod
.
1
Mod
.
2
Mod
.
3
Mod
.
4
PS
2
(
Kybd
/
Mouse
)
Source
4
Mod
.
4
Control CPU
VX
160
Router
Q-4300:
VQM-UAP001-LCTX
Transmitters (4)
Source CPUs
1
2
3
4
Mod
.
3
Mod
.
2
Mod
.
1
4
3
1
2
Q-4300:
VQM-UAP001-LCRX
Receivers (4)
Fiber Optic Cables:
K1: KMASS Tx to Rx
K2: KMASS Rx to Tx
Copper Cables:
USB (HID cable and/or 2.0 cable)
Audio (IN and OUT cables)
PS2 (Kybd. and Mouse cables)
Rx
Tx

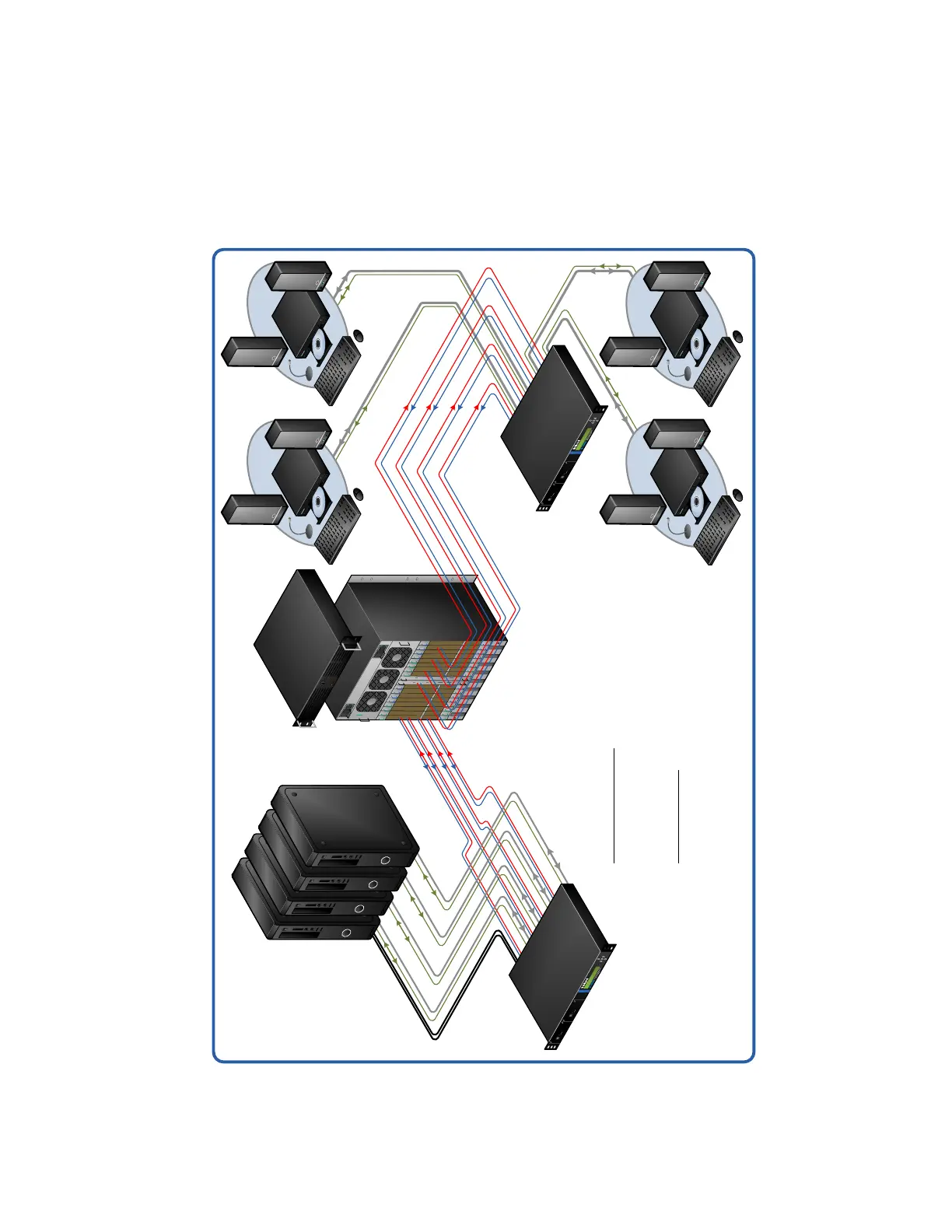

The Q-4300 Fiber Extension System-VQM-UAP001: Extend up to 4 sets of USB HID, USB 2.0 and Audio
signals over 8 fibers in a 1 Rack Unit chassis using four VQM-UAP001 Tx and Rx Modules. In this example,
all transmitters are connected to the receivers through a KVM Matrix Switch (Thinklogical’s VX160®).
