Page 6
Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®
1. Thinklogical’s® Q-Series KMASS Modules
1.1. Product Overview
Thinklogical’s Q-Series KMASS Modules provide users with a convenient, cost-effective and
space-saving way to extend audio and USB over fiber.

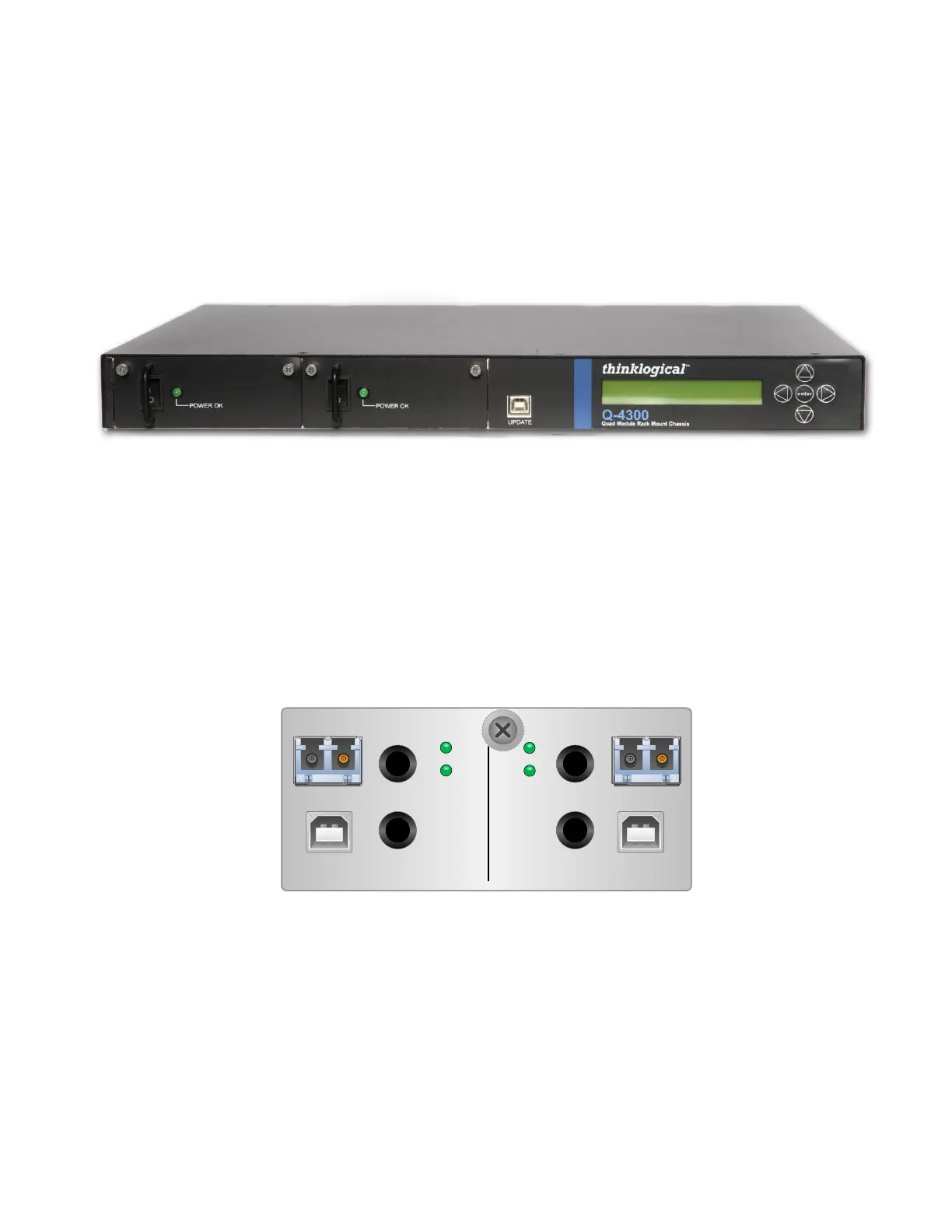

Up to four modules can be housed in a
single, one rack unit Q-4300 Chassis, making the Q-Series an ideal solution where space, security
and economy are vital. And if one module is all you need do the job, Thinklogical also offers a
single-module Q-1300 chassis for desktop applications.
Incorporating standard SFP+ transceivers, the system uses fiber-optic cables to
allow the placement
of audio and USB devices up to 1000 meters (3280 feet) away from the controlling computer
without loss of signal or resolution. Installation is plug-and-play and no adjustments are
necessary.
All Q-Series KMASS modules are connected by fiber-optic cables to provide communications
between the transmitters and receivers. The transmitter module connects to a CPU with supplied
audio (unbalanced), USB and PS2 cables. The receiver module provides an interface to the
destination audio and USB devices.
Q-Series Dual Transmitter with USB HID and Audio Ports
H: 1.592” (4.04cm) x D: 6.366” (16.17cm) x W: 3.693” (93.8cm)
