Q-Series KMASS Module Product Manual, Rev. E, March 2020 thinklogical®

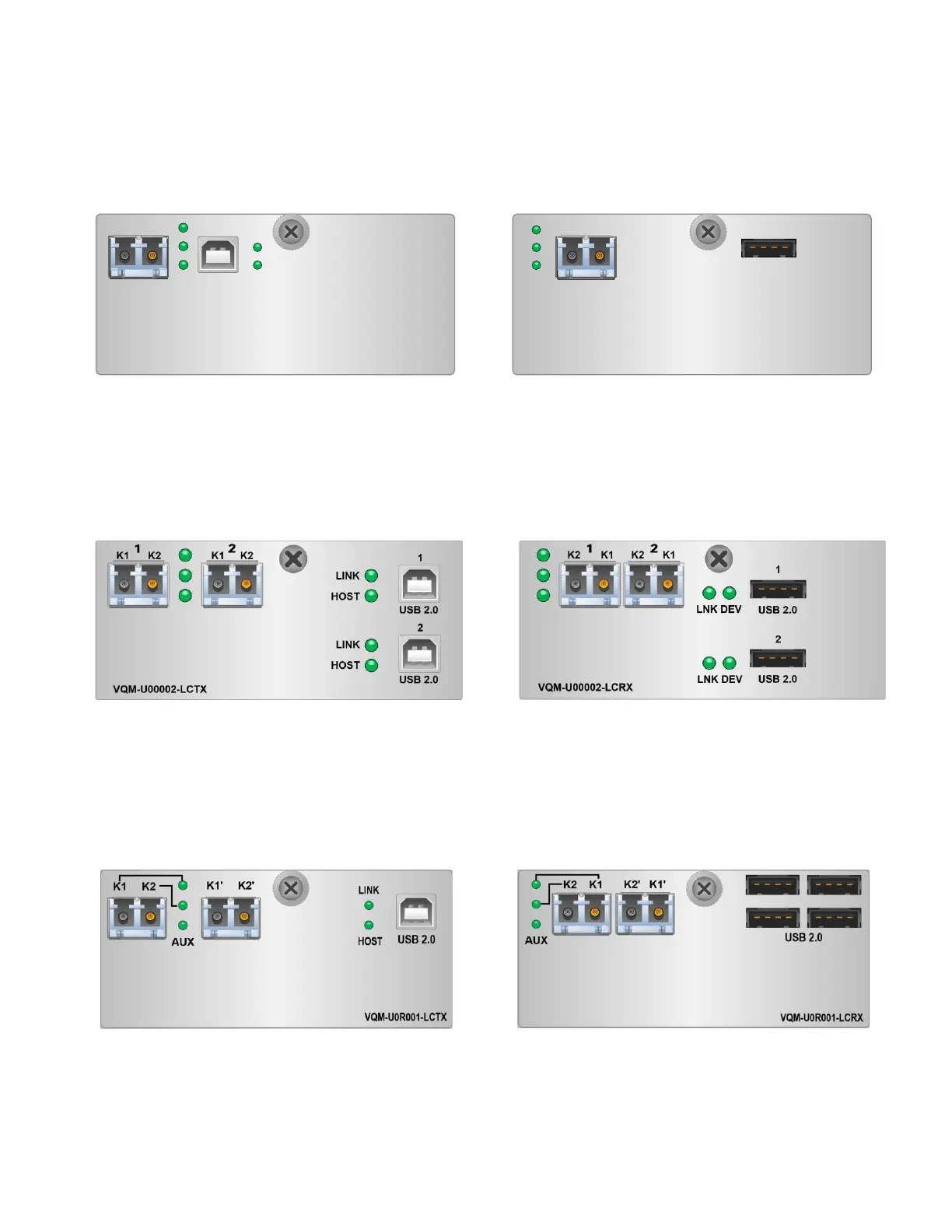

1.3.6. USB 2.0 Modules
Each Transmitter (TX) Module features a USB 2.0 B port. Each Receiver (RX) Module features
a USB 2.0 A port. Each module also has a pair of fiber connectors used for transferring data
between the Transmitters and Receivers. Status LEDS provide system information.
VQM-U00001-LCTX (Transmitter) VQM-U00001-LCRX (Receiver)
K1 K2
K2 K1
VQM-U00001-LCTX
K1
K2
VQM-U00001-LCRX
USB 2.0
USB 2.0
K1
K2
LINK
HOST
1.3.7. Dual USB 2.0 Modules
Each Transmitter (TX) Module features two USB 2.0 B ports. Each Receiver (RX) Module
features two USB 2.0 A ports. Each module also has two pairs of fiber connectors used for
transferring data between the Transmitters and Receivers. Status LEDS provide system
information.
VQM-U00002-LCTX (Transmitter) VQM-U00002-LCRX (Receiver)
1.3.8. Redundant USB 2.0 Modules
Each Redundant Transmitter (TX) Module features a USB 2.0. Each Redundant Receiver (RX)
Module features a pair of USB 2.0 ports. Each module also has two pairs of fiber connectors
(Primary and Redundant) used for transferring redundant data between the Transmitters and
Receivers. Status LEDS provide system information.
VQM-U0R001-LCTX (Transmitter) VQM-U0R001-LCRX (Receiver)
VQM-U0R001 LED functions:
TX: K 1; SFP Output Ready LINK; USB2.0 Extension Connected to Rx
K 2; Fiber Input Valid HOST; USB2.0 Link Connected CPU to Rx Ports
RX: K 2; SFP Output Ready K 1; Fiber Input Valid
