Thinky ARV-310 - External Vacuum Pipe

3. Installation
ARV-310 3-5

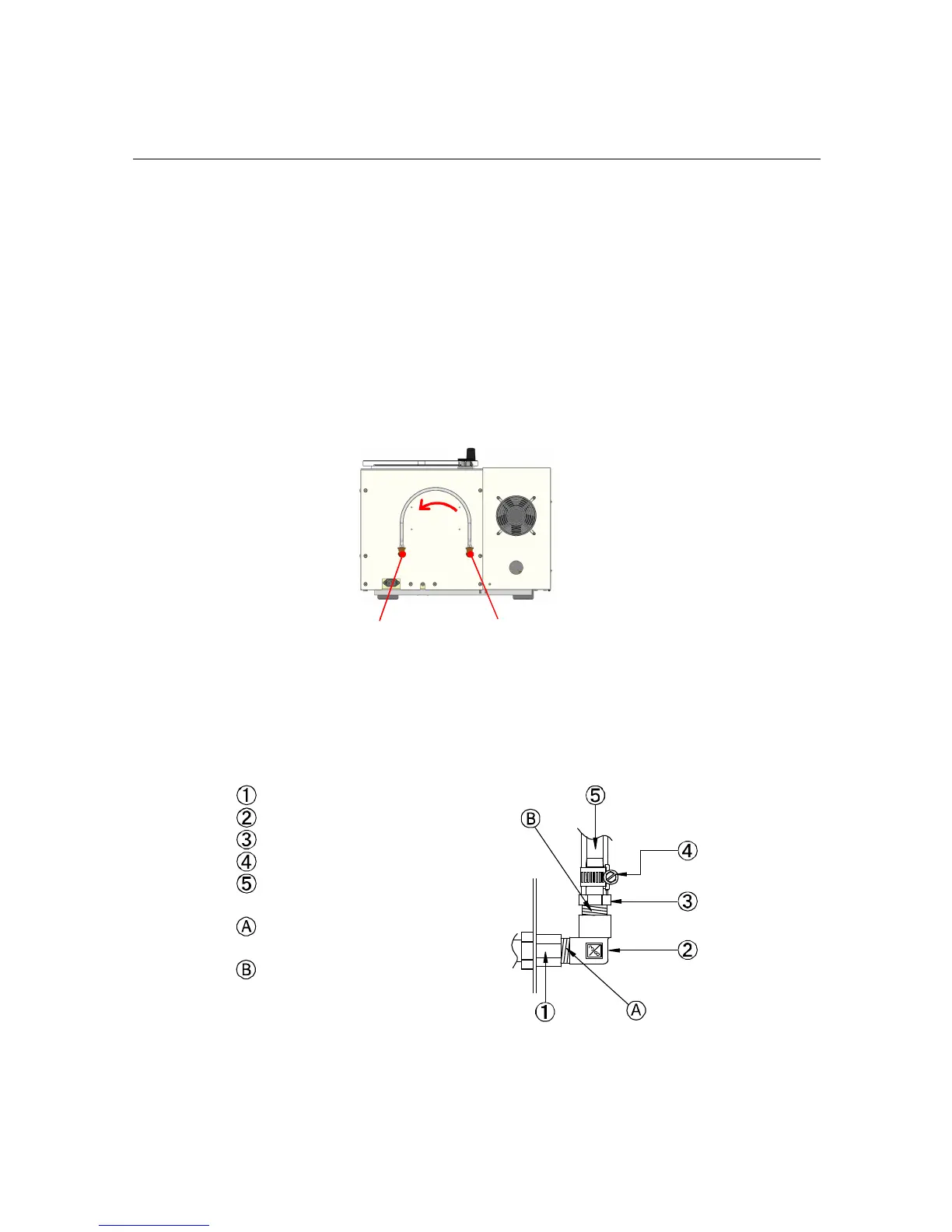

3-3 External Vacuum Pipe
This describes the external vacuum pipe on the rear side of the
unit.
● Airflow Direction of External Vacuum Pipe
Air flows from the vacuum chamber side to the vacuum pump
side.
● Standard Joints
Vacuum Chamber Side Vacuum Pump Side
Extraction Mouth
Elbow Joint
Hose Joint
Hose Band
Vacuum Hose
(ID: 11 mm)
3/8 PT Screw for Pipes
(with Tape Seal)
3/8 PT Screw for Pipes
(with Tape Seal)
