4. Operation
ARV-310 4-6
4-1-5 Adjustment of Counter Balance
After setting the container, adjust the counter balance.
Before starting the operation, make sure to adjust the counter balance.
This unit is designed with the container to be set only on one side of
the rotator. Therefore, the system equips adjustable dummy weight on
the opposite side of the cup holder to keep the balance in high speed
spinning motion.
If this adjustment is incorrect, the counter balance is disrupted and
vibration or abnormal noise would rise, imposing excessive loads on
the revolution mechanism, and this would cause damage to the unit.
Adjust the counter balance dial to the measured gross weight
of material container in the step 1) described in “4-1-4 Loading
Container”.

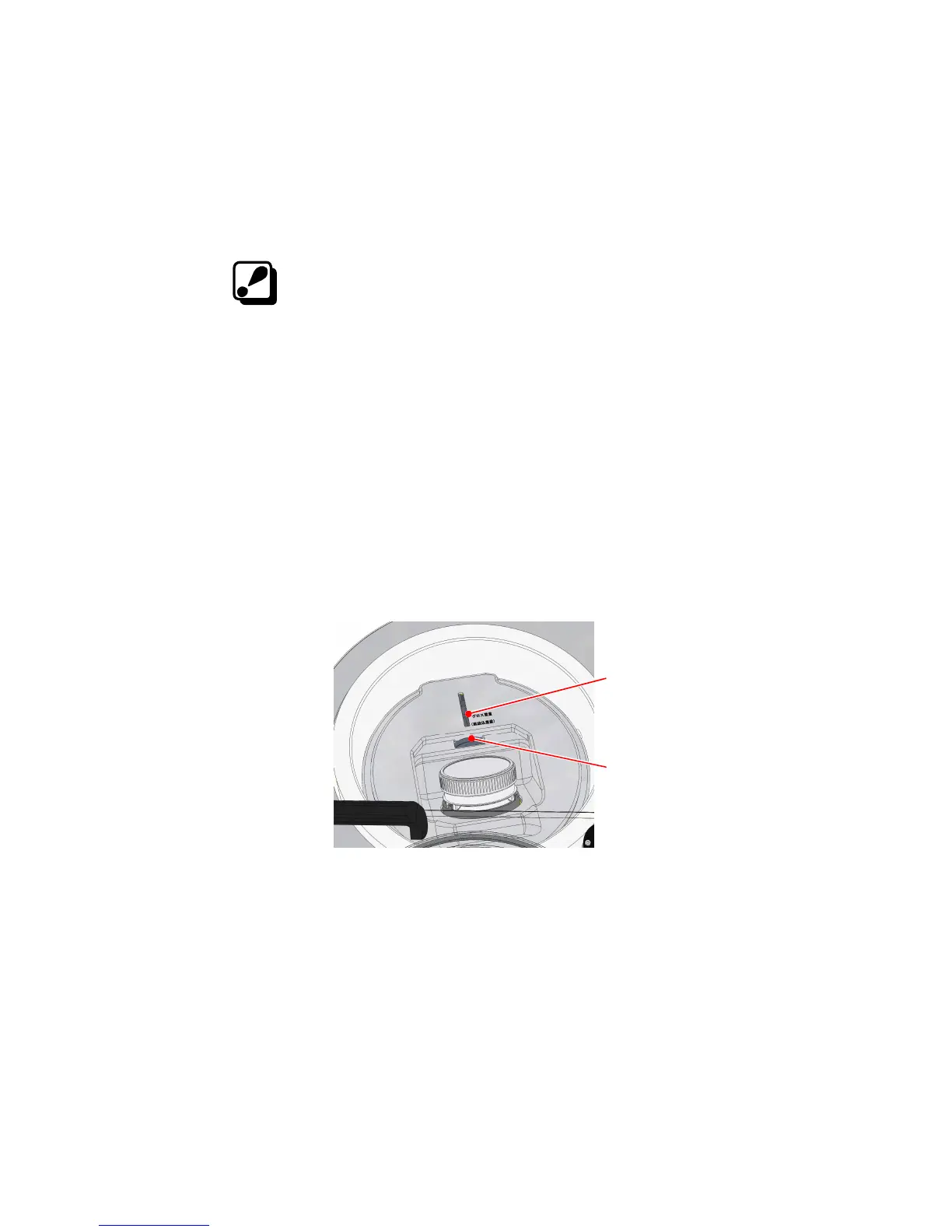

Counter Balance
Adjustment Dial
Counter Balance
Indicator
