3. Installation
ARV-310 3-8
2) Turn the rear-side shipping lock screw with the
standard box wrench clockwise until the wrench stops
in the same procedure for the front side one.
・ The fixed rotating mechanism base part on the rear side is
released.
When transporting the unit again, make sure to tighten the shipping
lock screws to fix the rotating mechanism.
At this time, tighten each of the front-side/rear-side shipping lock
screws alternately little by little. Tightening either of them firmly at a
time may incline the base plate causing damage of the unit.

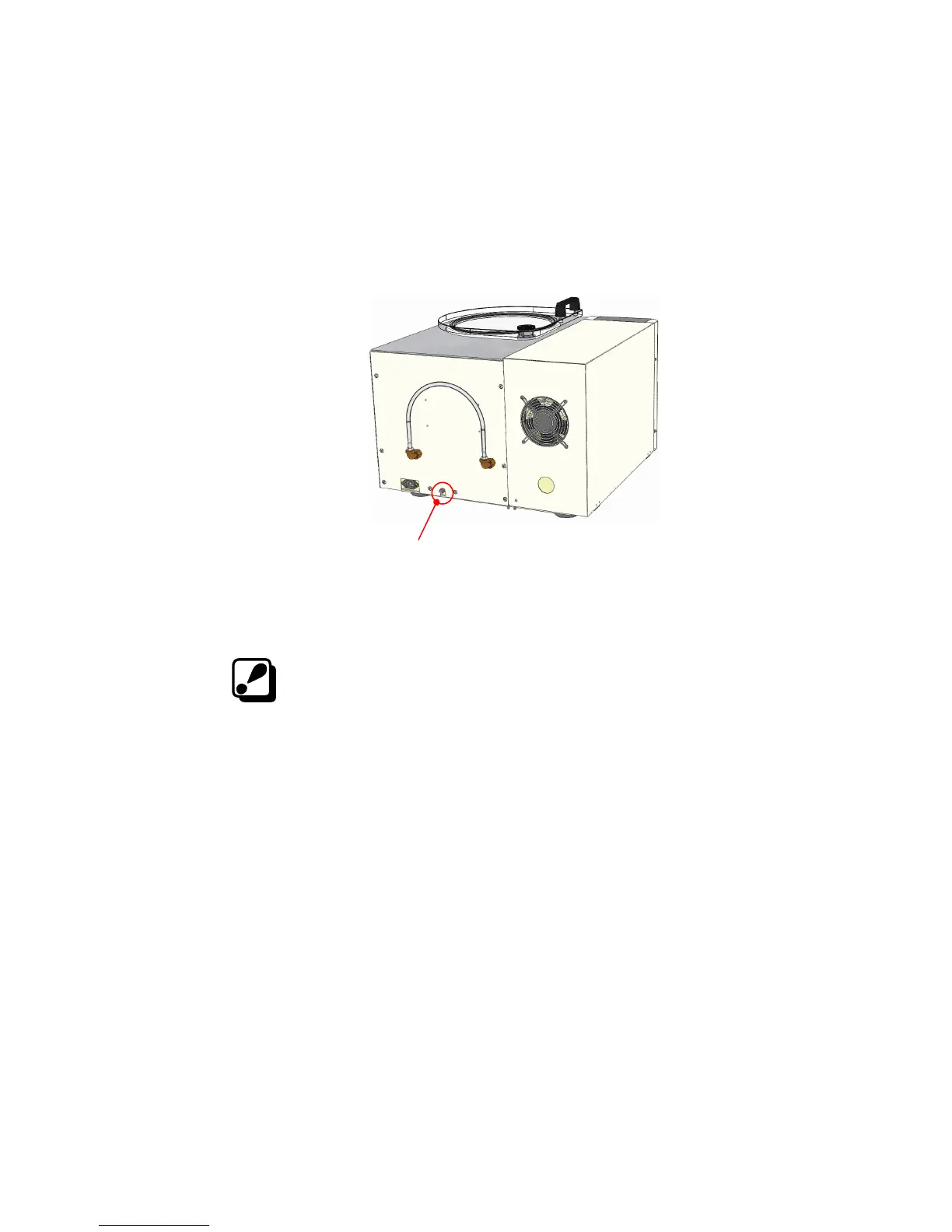

Rear-side Shipping Lock Screw
