4. Operation
ARV-310 4-16
3. Setting Procedure for Vacuum Decompression
When performing de-aerating only by vacuum decompression
without performing rotating/revolving motion, set the mixing
recipes in the following procedure.

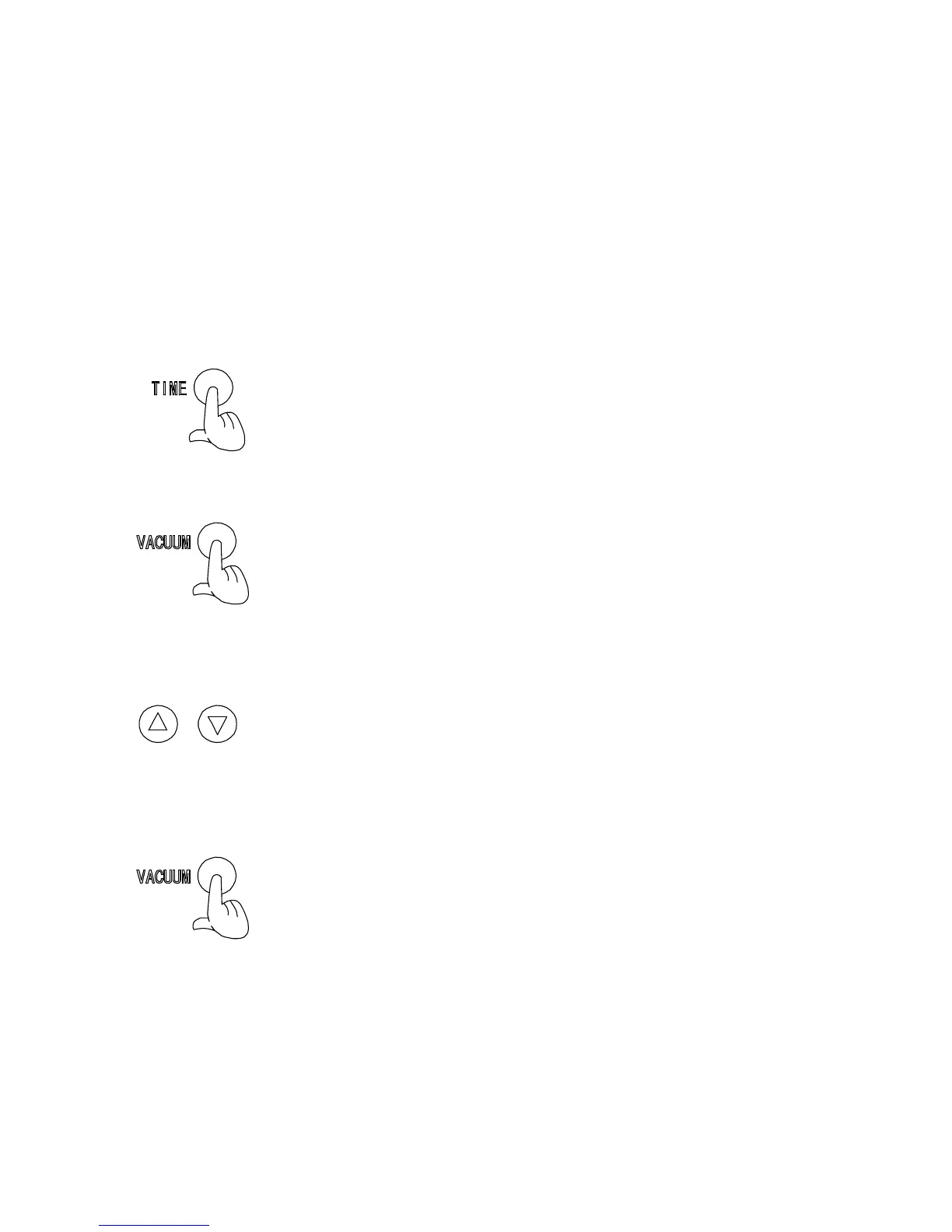

1) Press the TIME button for more than 1 second.
・ The SPEED and TIME indicators light out and then
setting the rotating/revolving motion becomes impossible.
2) Press the VACUUM button.
・ The brightness of the VACUUM indicator changes and
then you can set the vacuum decompression pressure
value.
3) Press the UP or DOWN button to display the vacuum
decompression pressure value to set on the VACUUM
indicator.
4) Press the VACUUM button.
・ The vacuum decompression pressure value is set.
To Next Page
