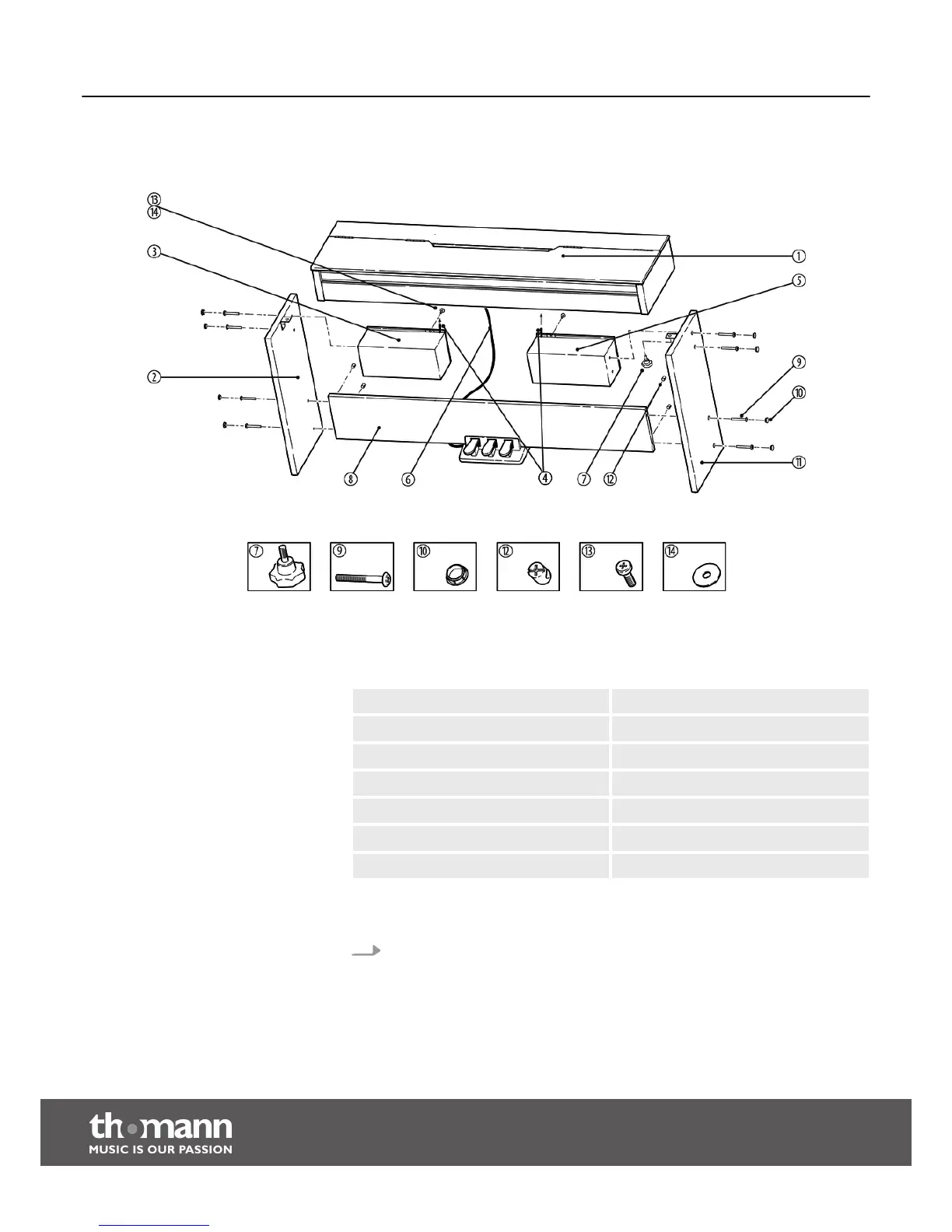

4 Assembly instructions
You need a Phillips screwdriver (not supplied) for the assembly of the digital piano.
Open the package and please make sure before assembling that the entire scope of
delivery is present, as posted here.
1. Digital piano housing 8. Pedal box with rear panel
2. Left side panel
9. Phillips-head screws 6 ´ 50 (8 pcs.)
3. Left speaker box 10. Screw caps (8 pcs.)
4. Speaker cable 11. Right side panel
5. Right speaker box 12. Phillips-head barrel nuts (4 pcs.)
6. Pedal cable
13. Phillips-head screws 4 ´ 15 (2 pcs.)
7. Hand screws (2 pcs.) 14. Seals (2 pcs.)
1. Proceed according to the illustrations and exclusively use the supplied screws.
Using other screws could damage the digital piano housing or the speaker
boxes or result in a reduced stability of the digital piano.
n (7) Hand screws (2 pcs.)
n (9) Phillips-head screws 6 ´ 50 (8 pcs.) and
n (11) Phillips-head screws 4 ´ 15 (2 pcs.)
Mechanical assembly
Assembly instructions
digital piano
10
