Thomas Cut 250 - Page 16

14
FluidConnectors
Parker Hannifin Corporation
Tube Fittings Division
Columbus, OH
Bulletin 4390-974250
Cut 250 Saw Use and Maintenance Manual
98
96
97
99
100
95
105 106
102
101
103
104

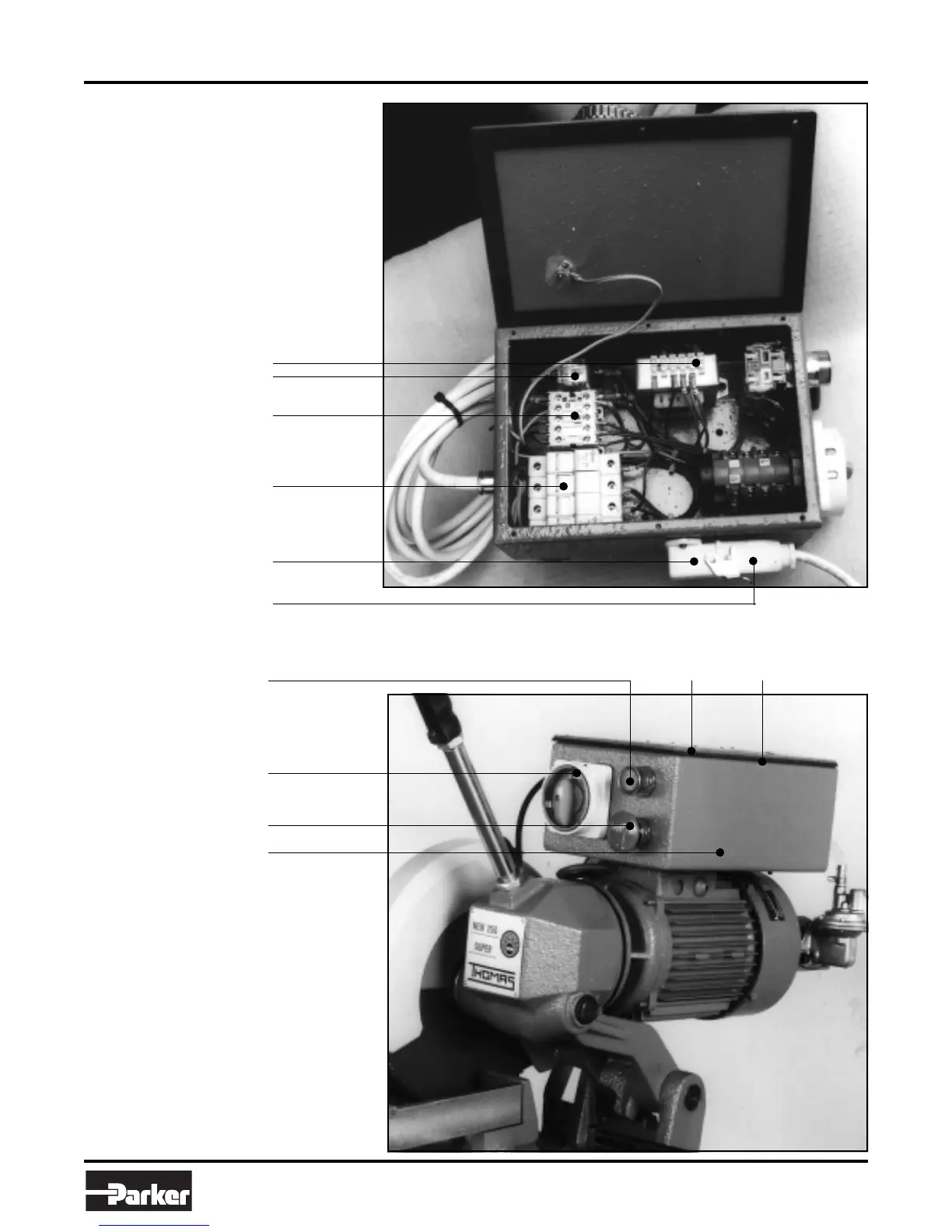

PARTS CALLOUT
95 Auxiliary relay
96 Remote control switch
97 Fuse carrier
98 Transformer
99 Socket connector
100 Plug Connector
PARTS CALLOUT
101 Speed switch
102 Reset button
103 Emergency push button
104 Electric components box
105 Box cover
106 Box gasket
