Cut 250 Saw Use and Maintenance Manual
11

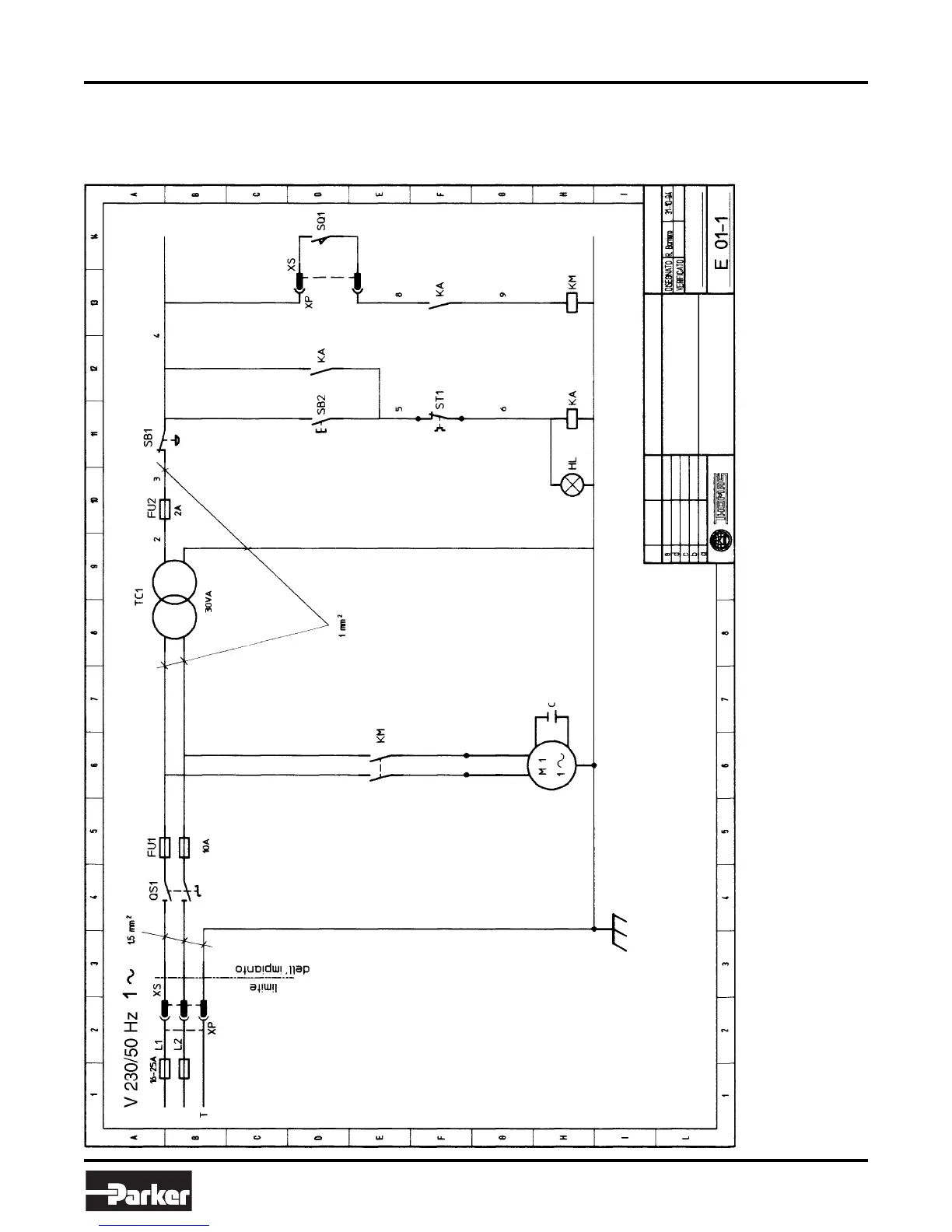

Wiring Diagrams
CODE DESCRIPTION M1 Disk motor XP Soket XS Plug SA Switch
CODE DESCRIPTION FU1 Fuse cartridge FU2 Fuse cartridge TC1 Transformer SQ1 Microswitch
CODE DESCRIPTION SB1 Mushroom button SB2 Luminous button HL Pilot lamp KA Auxiliary relay
CODE DESCRIPTION KM Remote control switch ST1 Thermal probe C Condenser
