4
FluidConnectors
Parker Hannifin Corporation
Tube Fittings Division
Columbus, OH
Bulletin 4390-974250
Cut 250 Saw Use and Maintenance Manual
•To obtain break-in of the machine it is advisable to start us-
ing it at intervals of about half an hour. This operation should
be repeated two or three times, after which the machine
may be used continuously.
•Before starting each cutting operation, ensure that the part
is firmly gripped in the vice and that the end is suitably sup-
ported.
•Do not use blades of a different size from those stated in the
machine specifications.
•If the blade jams in the tube, release the running button
immediately, switch off the machine, open the vice slowly,
remove the part and check that the blade or its teeth are not
broken. If they are broken, change the blade.
•Before carrying out any repairs on the machine, consult the
dealer or call Parker Tube Fittings Division.
3
Technical
Characteristics
3.1 — Table of cutting capacity
and technical details
Cutting
Capacity
90° 30 70 65 100 x 45
45° DX 25 60 55 65 x 150
•Three-phase el. motor for
2-speed blade rotation kW 0.75 ÷ 0.95
•Single-phase el. motor for
1-speed blade rotation kW 0.9
•Reduction gear in an oil bath Ratio=1:32
•Maximum blade diameter mm 250
•Blade rotation speed rpm 40 ÷ 80
•Vice opening mm 105
•Machine weight kg 80
4
Machine Dimensions –
Transport – Installation –
Dismantling

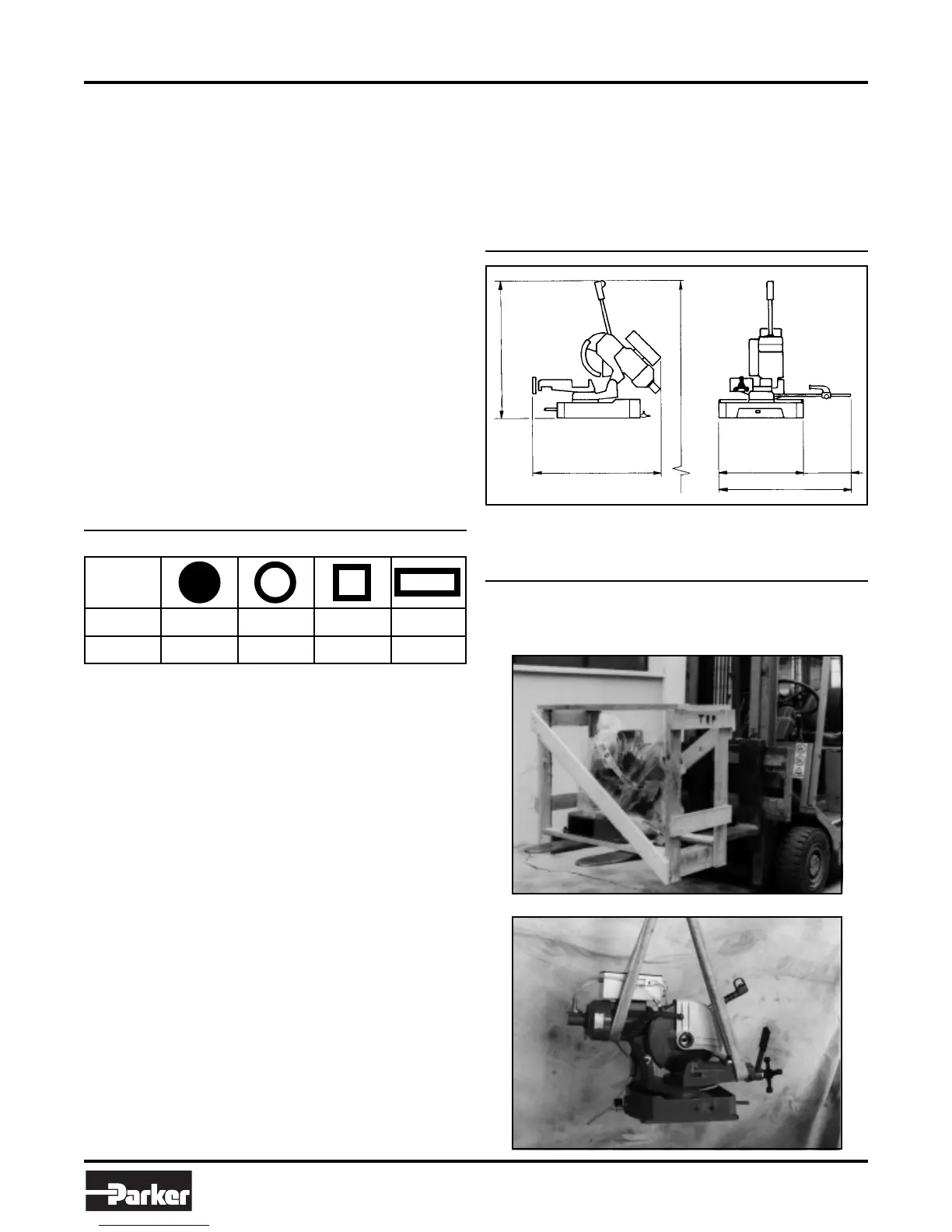

4.1 — Machine dimensions
4.2 — Transport and handling of the machine
If the machine has to be moved, use a fork-lift truck or sling it
with straps as illustrated.
800
940
410
360
770
1550 WITH PEDESTAL
