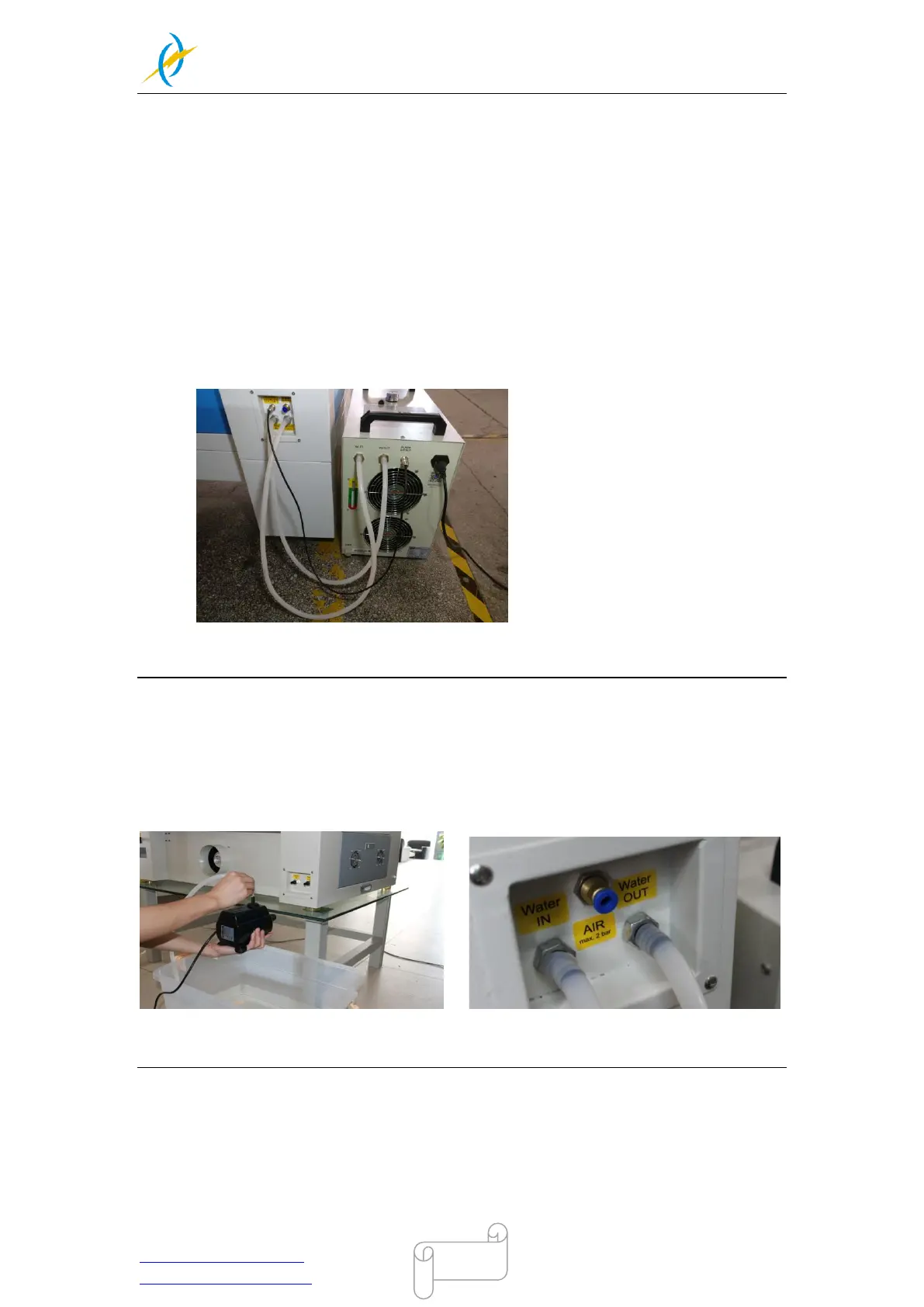

3.7.5 Connecting the Cooling System
If you have the water chiller, and please connect to the water chiller priority. If not, and
please connect to the water pump.
The connection of the machine and the Water chiller.
① Take out one of the water pipes and connect to the water chiller where marked as
“OUTLET”, the other side of the pipe connect to the machine where marked as
“Water IN”.
② The other pipe, please connect to “INLET” of water chiller and “Water OUT” of
machine.
③ Find the cable（in the toolbox）for “No Water” protection, please connect to
“ALARM OUTLET” of water chiller and machine.
We will provide a certain chiller power cable for different countries, and the power cable
will be put inside a box together with the water chiller.
The connection of the machine and the Water pump
① Take out one of the water pipes and connect to the water pump，the other side
connect to the machine where marked as “Water IN”.
② The other pipe, please connect to the machine where marked as “Water OUT”.,
the other side directly into the water.
Like below:
We will provide a certain pump power cable for different countries, and the power cable
has been connected to the pump already before we send it out.
Get through the water chiller or the water pump, and turn on the main power.
Check the water chiller or pump to work（If normally work, the green light will light or water
will flow from the pipe）.
