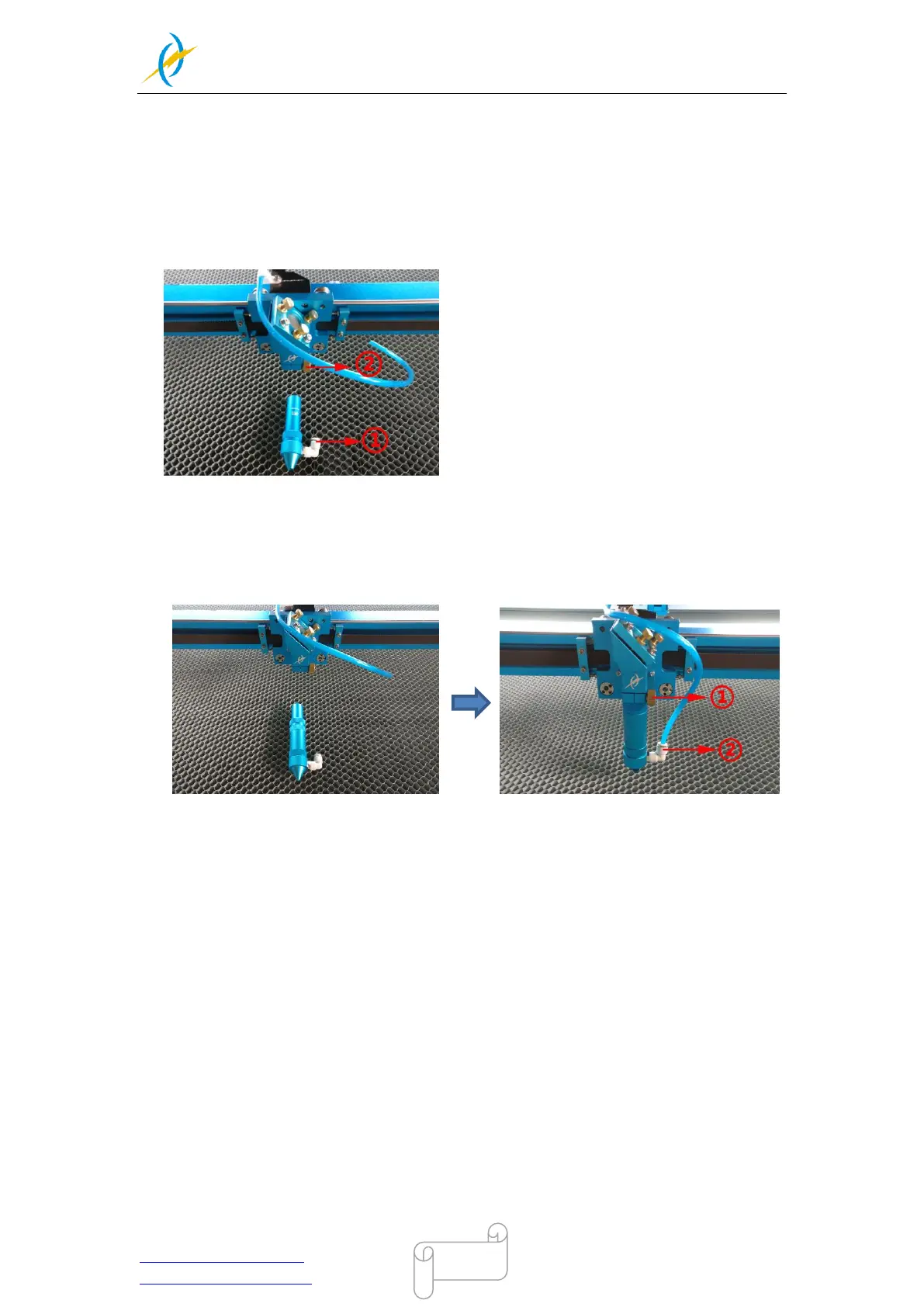

4.4 How to replace the 4 inch and HR laser head
1）How to replace the 4 inch laser head
1. Move the table down till there’s enough space to take the standard head out and
install the 4” laser head.
2. Remove the standard head like below：
①take out the air hose
②loosen the screw
3. Install the 4” laser head like below:
①fix the laser head
②connect the air hose
Tips: Please keep the 4’’ laser head to the max height of laser head.
