THUNDER TIGER Raptor 30 V2 - Servo Installation: Part 1

(1) HSE2612N
(9) BK0086
(5) BK0093
(2) HMF2-8N
(1) HSE2612N
(10) BK0086
(6) BK0094
(8) BK0105
(10) BK0086
(7) BK0100-1
(4) HME4-5B
(1) HSE2612N
(9) BK0075
(2) HMF2-8N
(1) HSE2612N
(1) HSE2612N
Aileron Servo
Rudder Servo
Elevator Servo

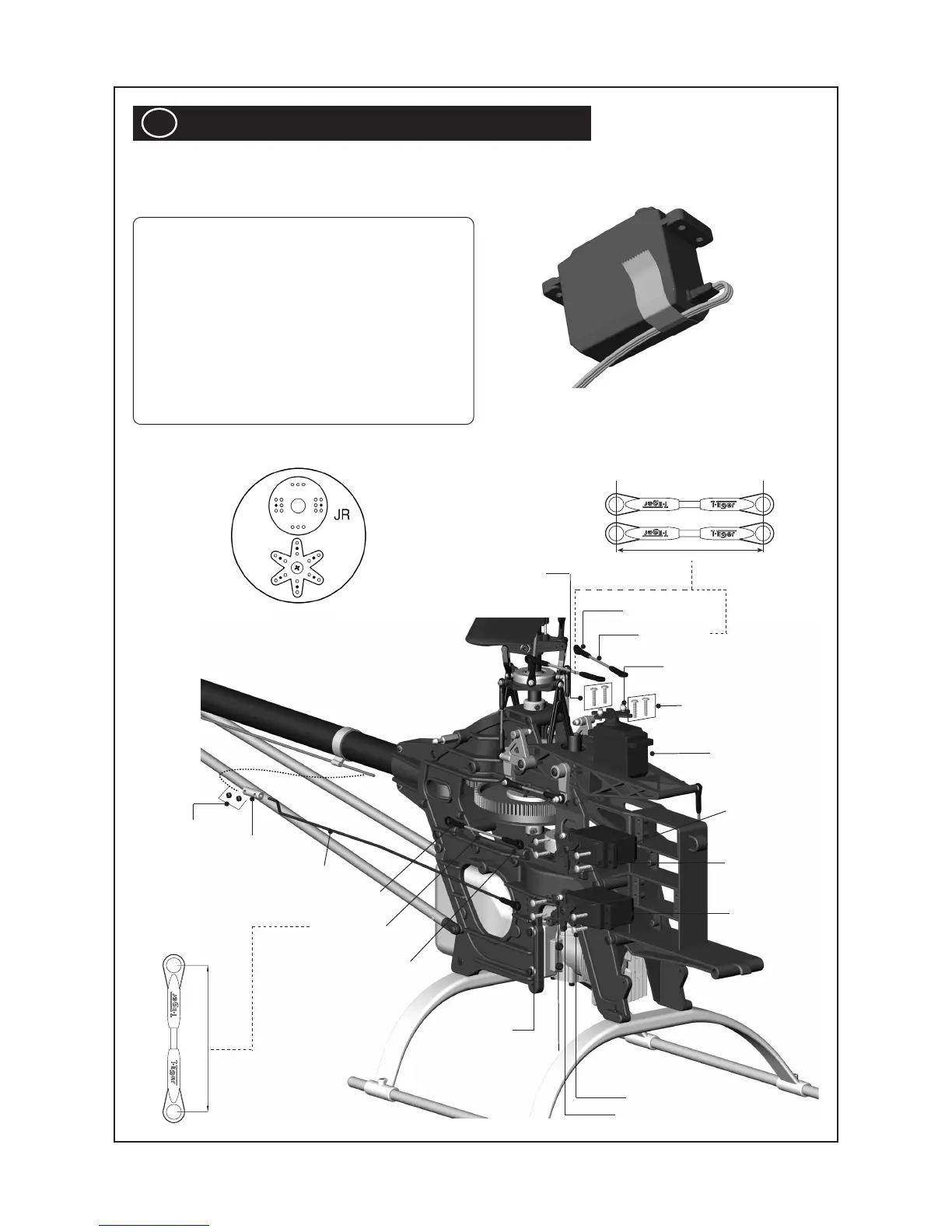

16 Servo Installation-Part1
Assembly Tip: Remove all the servo wheels prior to attaching the steel linkage
balls. Make sure all linkages are the correct length.
Before installing Aileron Servo, tape the
wire as shown.
84mm
72mm
Mount the Steel Linkage Balls at
10.5mm(approx 7/16") from the center of
the servo horn.
FUTABA
(1) HSE2612N Self Tapping Screw(M2.6x12)....12
(2) HMF2-8N Screw(M2x8)................................. 4
(3) HML2 Hex Nut(M2)....................................... 4
(4) HME4-5B Set Screw(M4x5).......................... 2
(5) BK0093 Linkage Rod.................................... 2
(6) BK0094 Linkage Rod..................................... 1
(7) BK0100-1 Linkage Rod................................. 1
(8) BK0105 Tail Control Rod Joint....................... 1
(9) BK0075 Linkage Ball..................................... 4
(10) BK0086 Ball Link......................................... 7
14
