(3) HMV740ZZ
(4) BK0077
(5) BK0079
(6) BK0075
(7) BK0015
(8) BK0016
(9) BK0014
(1) HMJ2-10N
(2) HMC3-10B
(3) HMV740ZZ
(1) HMJ2-10N
(8) BK0016
(3) HMV740ZZ
(5) BK0079
(6) BK0075
(3) HMV740ZZ
(4) BK0077
(2) HMC3-10B
(7) BK0015
For sport kit (29BB) version, (3) will be replaced by Bushing(BK0107x4)
7

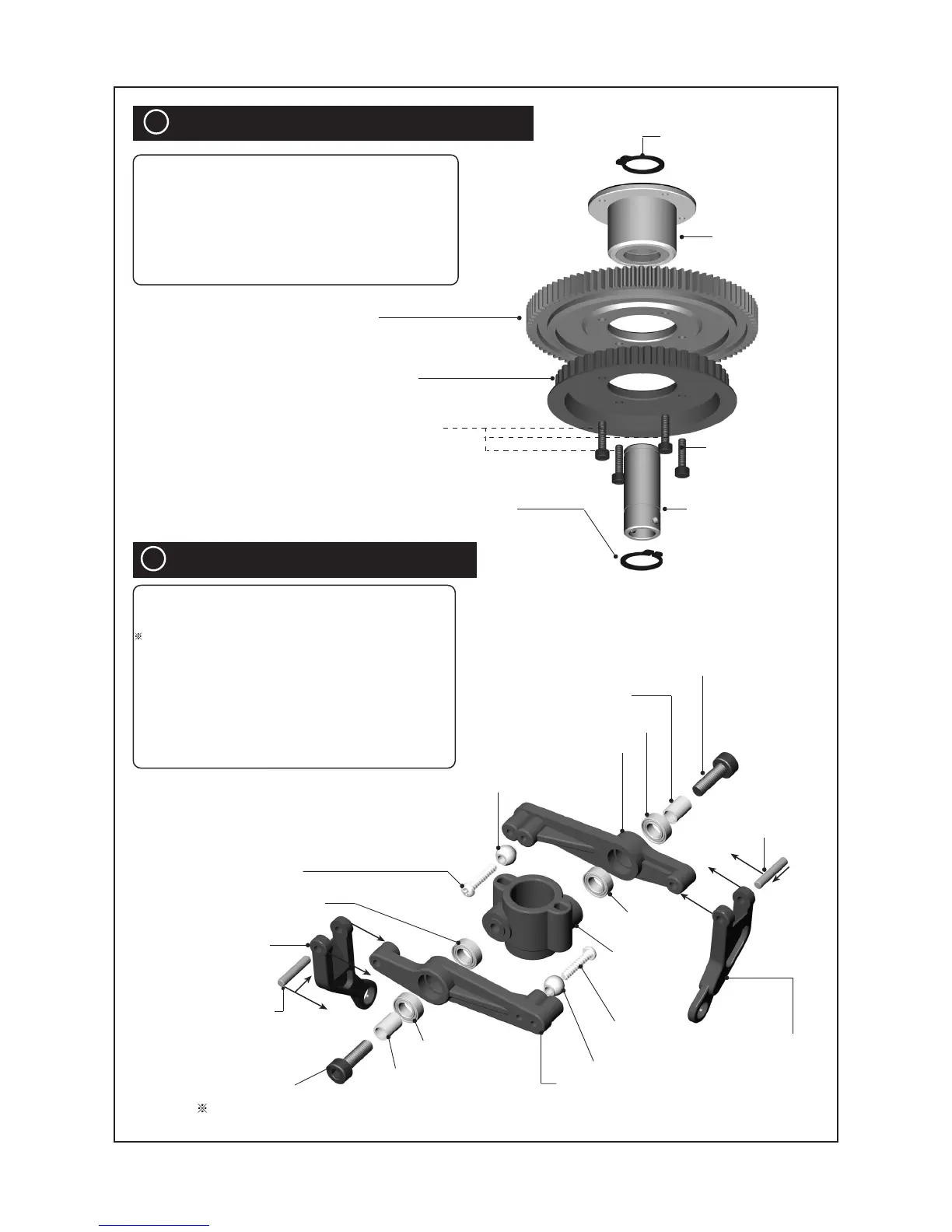

4 Main Drive Gear Assembly
(1) HMC3-12B Socket Screw (M3x12).......... 4
(2) HMQ14 Snap Ring.................................... 2
(3) BV0033 One Way Clutch Housing.............1
(4) BK0031 Main Spur Gear........................... 1
(5) BK0032 Tail Drive Pulley........................... 1
(6) BK0034 One Way Clutch Shaft..................1
5 Washout Assembly
(1) HMJ2-10N Self Tapping Screw(M2x10).. 2
(2) HMC3-10B Socket Screw (M3x10)......... 2
(3) HMV740ZZ Bearing (d4xD7xW2.5)........ 4
(4) BK0077 Collar ........................................ 2
(5) BK0079 Pin............................................. 2
(6) BK0075 Linkage Ball.............................. 2
(7) BK0015 Flybar Control Lever.................. 2
(8) BK0016 Washout Linkage ..................... 2
(9) BK0014 Washout Base............................1
Make sure Linkage Balls are attached to the
inside hole of each stabilizer control lever.
(1) HMC3-12B
(6) BK0034
(2) HMQ14
(5) BK0032
(4) BK0031
(2) HMQ14
(3) BV0033
Add a drop of Blue Locktite on the
thread of each of these four screws.
To Next Page
