(3 )BK0463
(2 )BK0062
(5 )CB0363-1
(4 )BE1867
(1) BK0605
To Engine
(6) BB362-2
(6) BB362-2
To Muffler
5

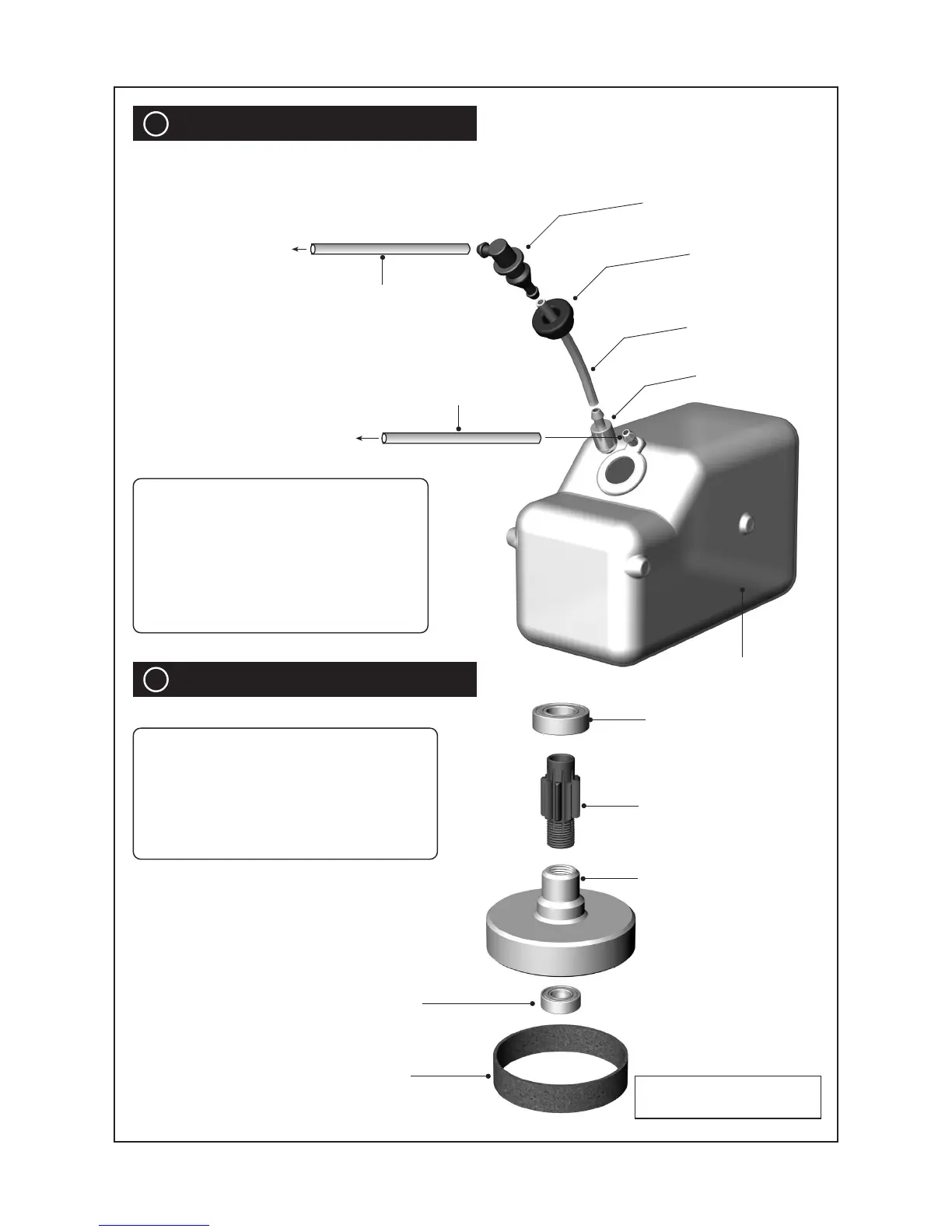

2 Clutch Bell Assembly
1 Fuel Tank Assembly
(1) BK0605 Fuel Tank .....................1
(2)BK0062 Fuel Tank Grommet.......1
(3)BK0463 Fuel Tank Nipple .......... 1
(4)BE1867 Clunk.............................1
(5)CB0363-1 Silicone Fuel Tube.....1
(6)BB0362-2 Silicone Fuel Tube.....2
Note: After assembly, check to make sure the Fuel Tank
clunk can move from top to bottom without touching the
back of tank. Also, a fuel filter (available from any hobby
shop, TTR1164) should be placed between the fuel tank
and the carburetor.
(1) HMV1680 Bearing (d8xD16xW5).....1
(2) HMV1260Y Bearing (d6xD12xW4)...1
(3) BK0591 Clutch Bell..........................1
(4) BK0593 Drive Gear(Pinion).............1
(5) BK0590 Clutch Liner........................1
(1) HMV1680
(4) BK0593
(3) BK0591
(2) HMV1260Y
(5) BK0590
The liner comes glued in the
clutch bell already.
To Next Page
