17
•On the left side frame, there are
three pitch scales molded onto
the plastic frame. The three
different scales are designed for
beginner, intermediate or expert
F3C and 3D pilots.
•Use the "pointer" on the collective
tray and the plastic molded scales
to set up the initial collective
control.
•The actual blade angle in degrees
can be checked using a pitch
gauge (sold seperately).

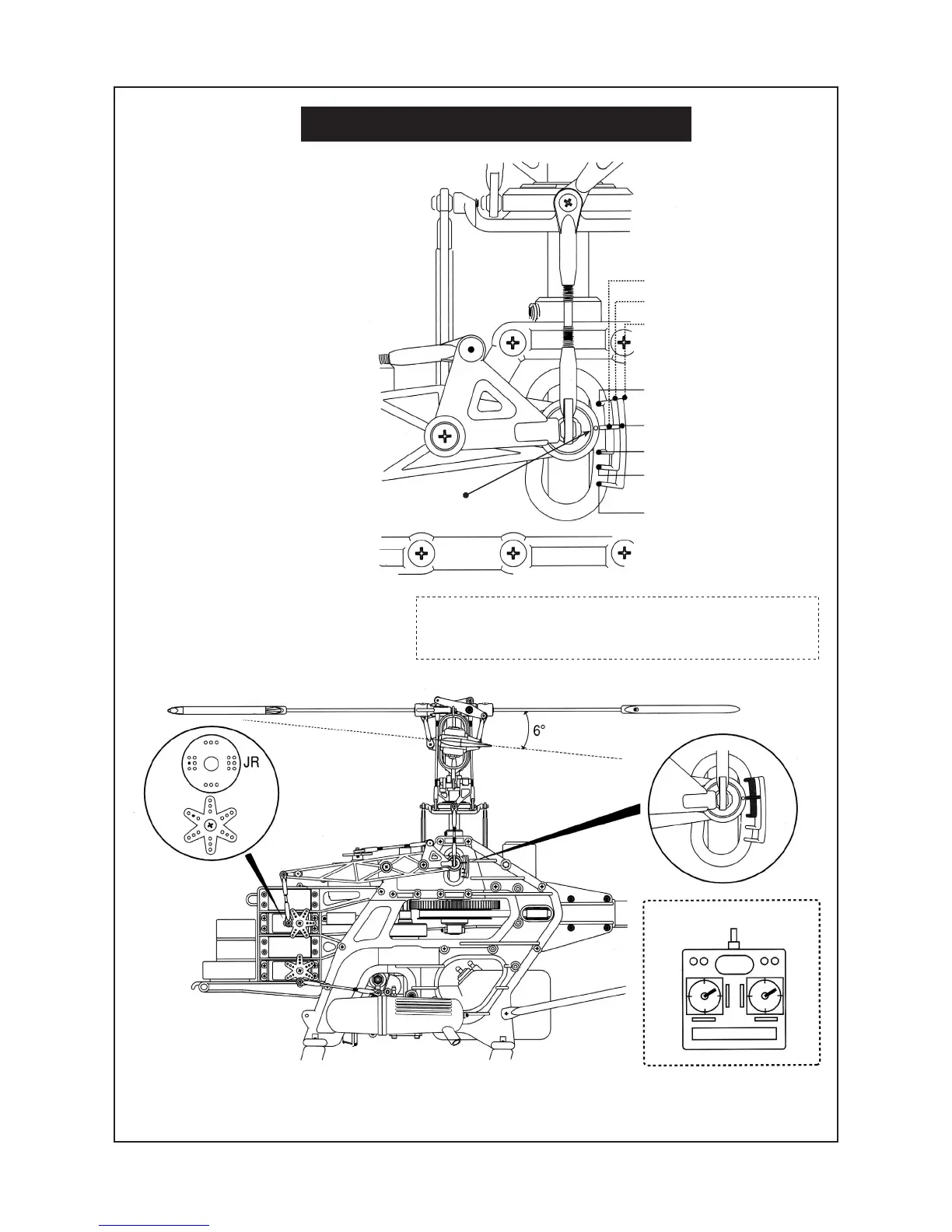

Setting up Main Rotor Blades Pitch Angle
The hoveing pitch angle should be at 6˚. To get the 0˚ to 12˚
collective range, mount the steel linkage ball at 10.5mm away
from the center of the collective servo horn.
6˚ hovering pitch angle is used for beginners, intermediates and experts. The throttle/collective must be
in the center position when adjusting the collective pushrod length to make the "point" line up with the 6˚
hover point on the molded scale(see above diagrams).
For Beginners
For Intermediates
For F3C or 3D
Top End Pitch 12˚
Hover 6˚
Beginners 0˚
Intermediates -4˚
Bottem End Pitch -8˚
Pointer
Throttle Stick in the center
position
Mount the Steel
Linkage Ball at
10.5mm from the
center of the servo
horn.
FUTABA
(Hint for beginners)
