(10) BK0600
(14) BK0594
(6) HME4-5B
(1) HSE3-12B
(2) HMV696Z
Top Starter Shaft
Bearing
(1) HSE3-12B
(8) BK0057
(15) Fuel Tank Ass'y
(16) Clutch Bell
Assembly
(13) BK0592
(3) HMV6800 Upper Main Shaft bearing
(4) BK0059 Main Frame Spacer(S)
(5) BK0058 Main Frame Spacer (L)
(11) BV0035
(1) HSE3-12B
(3) HMV6800
Lower Main Shaft Bearing
(9) BK0599
(7) BK0081
(12) BK0036
6
3 Main Frame Assembly-Part1
(1) HSE3-12B Self Tapping Screw (M3x12).. 30
(2) HMV696Z Bearing (d6xD15xW5).......... 1
(3) HMV6800 Bearing (d10xD19xW5).......... 2
(4) BK0059 Frame Spacer (S)....................... 8
(5) BK0058 Frame Spacer (L)...................... 4
(6) HME4-5B Set Screw (M4x5)................... 2
(7) BK0081 Pin............................................. 2
(8) BK0057 Servo Frame.............................. 1
(9) BK0599 Main Frame Left Side.............. 1
(10) BK0600 Main Frame Right Side..........1
(11) BV0035 Guide Pulley.......................... 2
(12) BK0036 Pulley Collar.......................... 4
(13) BK0592 Starter Shaft.......................... 1
(14) BK0594 Starter Coupling.................... 1
(15) Fuel Tank Assembly
(16) Clutch Assembly
(17) HMS5 E-CLIP..................................... 1
(18) BK0584 Thrust Washer.......................1

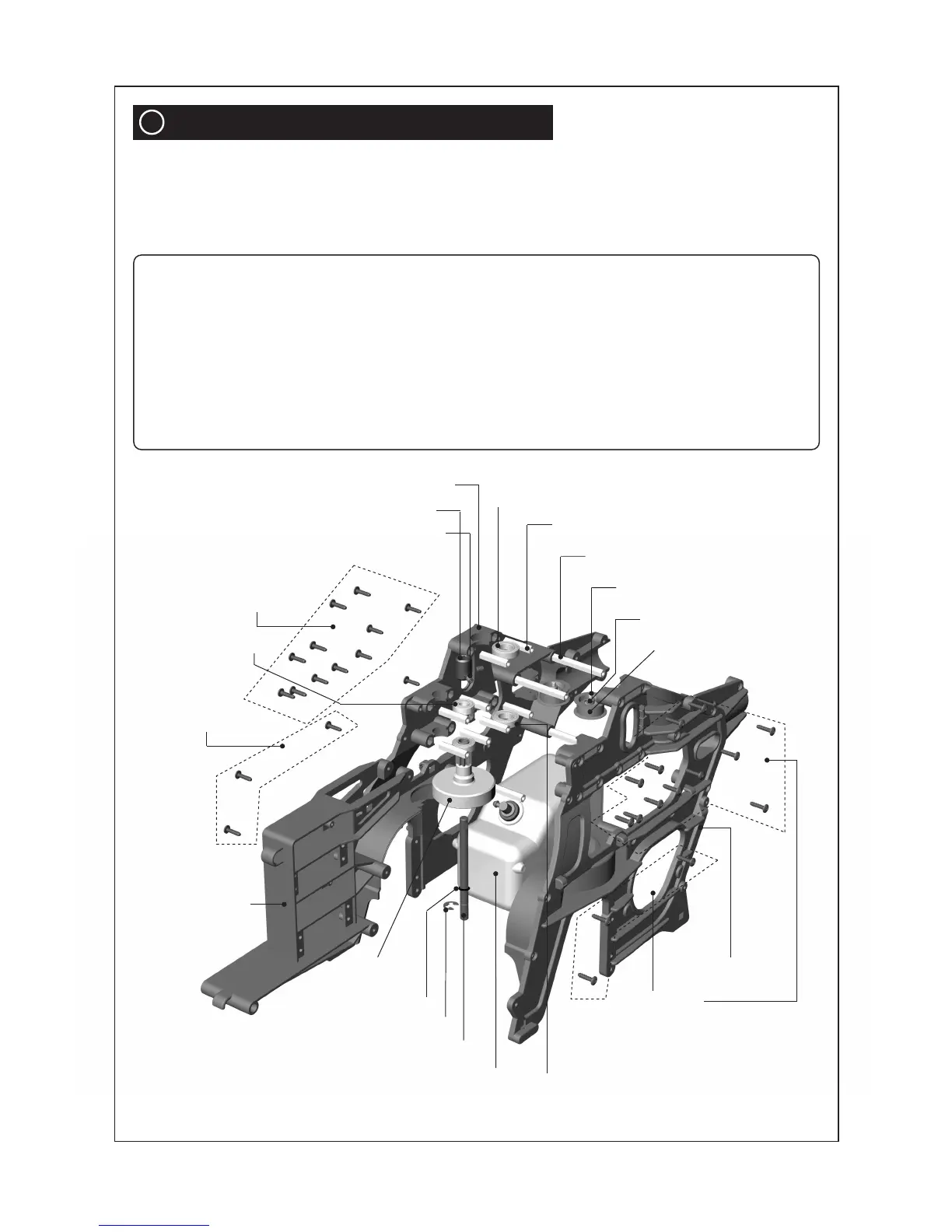

Please insert the frame spacers, bearings, pulley and parts in the frames according the drawing below. Tighten the
screws snugly, but do not over torque them which could strip the plastic.
Insert starter shaft through the center of the clutch bell assembly, through the top starter shaft bearing and into the
starter coupling. Secure with the two set screws. Make sure this is tightly secured.
(17) HMS5
(18) BK0584
