Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010

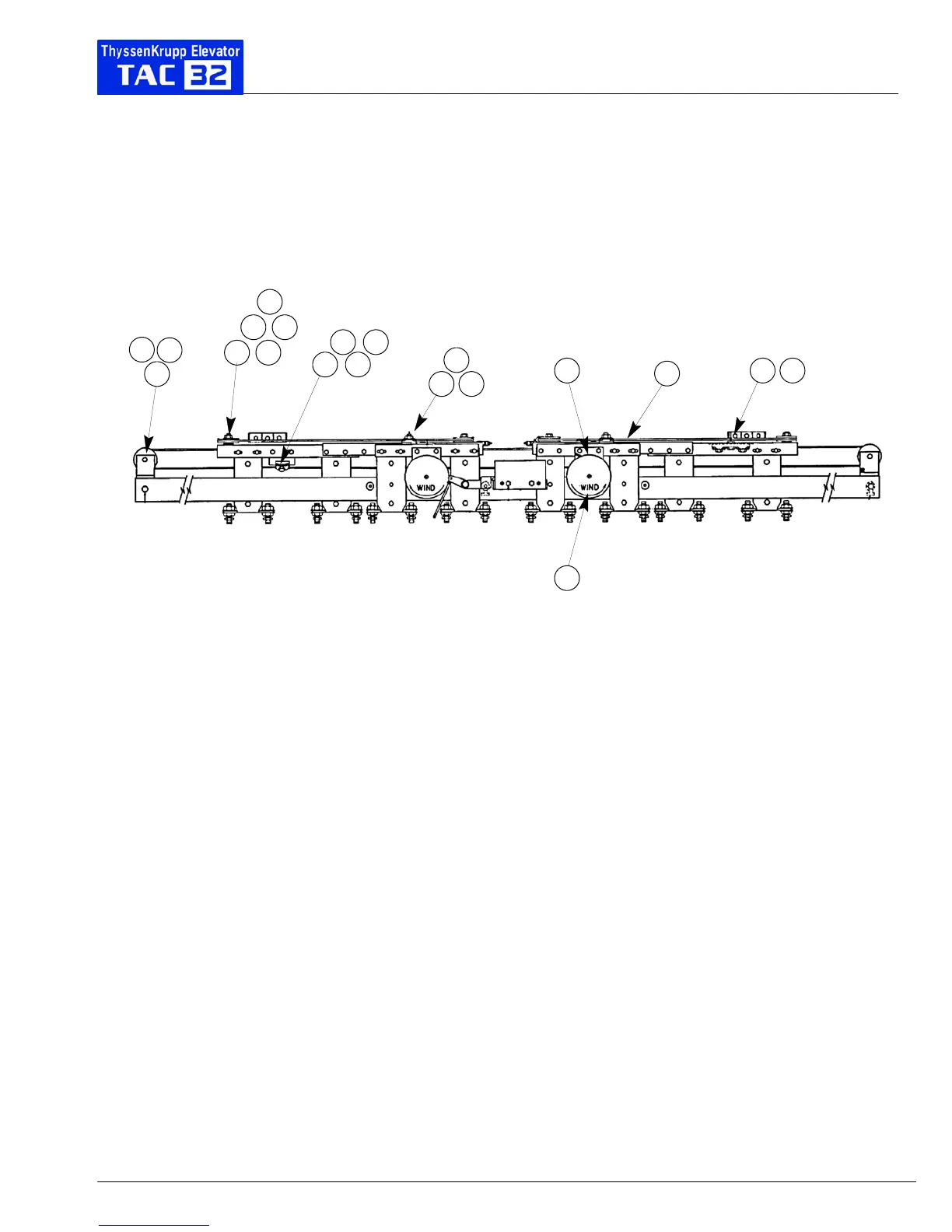

Hatch Hanger Assembly-7
Traditional Hatch Hanger
Center Opening, Two Speed
1
3
11
12
9
10
16
20
2
5
67
8
4
13
14
15
17
18
19
ITEM PART NO. PRINT NO.DESCRIPTION
1 9701588 40158 Sheave
2 147479 Bracket Assembly, Cable Tightener
3 9870921 77092 Ring, Retaining
4 9701588 40158 Sheave
5 700384 Washer
6 700422 Washer, LWET
7 700384 Washer, Flat
8 700564 Nut
9 700407 Washer, FS, LWHR .375 Z
10 700338 Screw, FS, CSH .250 x .375 Z
11 9951362 40130 Clip, Cable
12 9951313 40113 Anchor, Single C able
13 9951647 40029 Clamp, Cable
14 9951362 40130 Clip, Cable
15 9951313 40113 Anchor, Cable
16 9838429 63842 Bracket Assembly, Closer Reel
17 9871421 77142 Cable, .125 dia steel
18 9951398 40190 Anchor, Cable
19 9950953 63857 Bracket Assembly, Cable Clip
20 75987 Reel, Closer
