Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010
Signa 4 Signal Fixtures-27
4

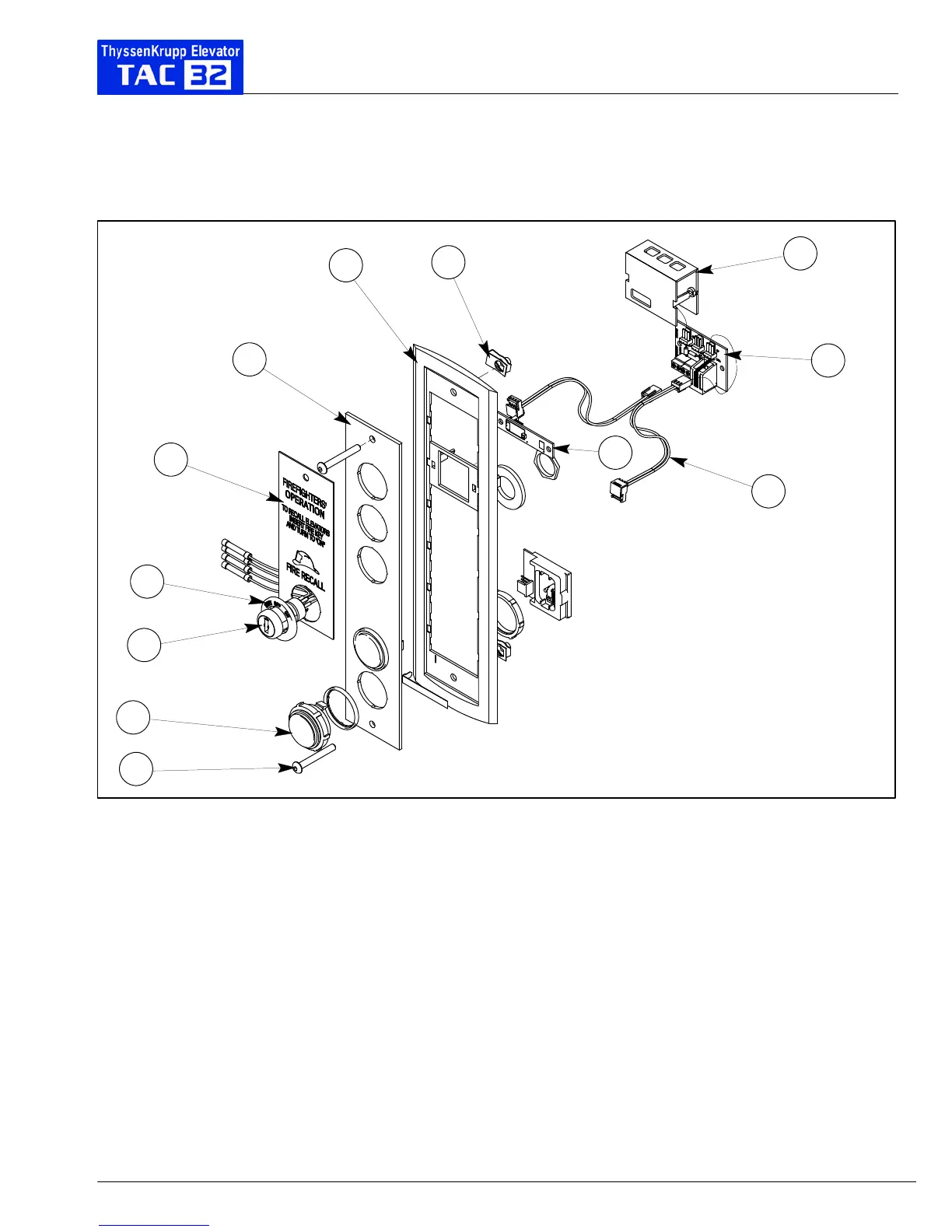

Hall Station Assembly
8503AN_2
1
2
3
4
6
5
7
8
9
10
11
12
ITEM PART NO. PRINT NO. DESCRIPTION
1 9752043 108288 FS, Screw, CSBHS, #10-24 x 1.500 SE
138148 FS, Screw, CSBHS, #10-24 x 1.500 SE, Mirror
9830224 130126 FS, Screw, CSBHS, #10-24 x 1.500 B, Laquered
130127 FS, Screw, CSBHS, #10-24 x 1.500 B, Mirror, Laquered
2 680AX See Button Assembly
3SeeKeyswitches
4 See Key Core Bezels
5 580YE8 Overlay, Fire Service, Asme Code, In Hall Station
580YE5 Overlay, Fire Service, Asme Code, In Hall Station (French)
6 141KN1 Faceplate, 2000 Emergency Power, #4 Stainless Steel ( + 2 Devices )
141KN2 Faceplate, 2000 Emergency Power, #8 Stainless Steel ( + 2 Devices )
141KN3 Faceplate, 2000 Emergency Power, #4 Muntz ( + 2 Devices )
