Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010
Common Elevator Components-2

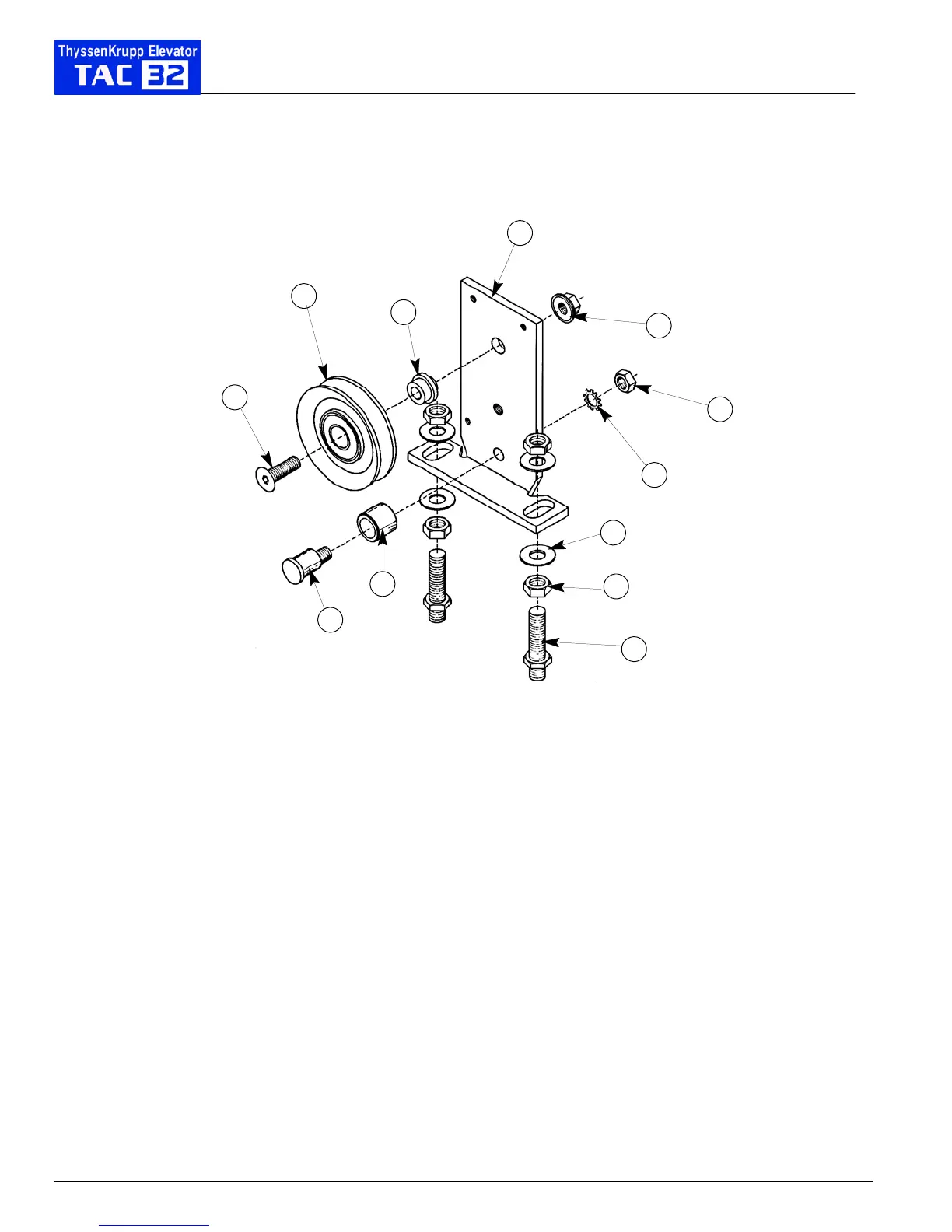

Door Hanger Assembly
63853 - High Pocket, 63834 - Low Pocket
1
2
4
5
6
7
8
9
3
10
11
12
ITEM PART NO. PRINT NO. DESCRIPTION
1 9752160 45216 Upthrust Shaft
2 77572 Nut
3 700422 Washer
4 700583 Nut
5 700309 Screw
6 9875426 67542 Roller Tire Assembly
7 9801170 40117 Spacer, Roller
8 9752249 45220 Low Pocket Hanger
9752158 45217 High Pocket Hanger
9 9838302 63830 Roller Assembly (Low Pocket)
9864295 124580 Roller Assembly (High Pocket)
10 9700780 40139 Studhanger
11 700579 Nut, .500”
12 700378 Washer, .500”
