Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010
Signa 4 Signal Fixtures-33

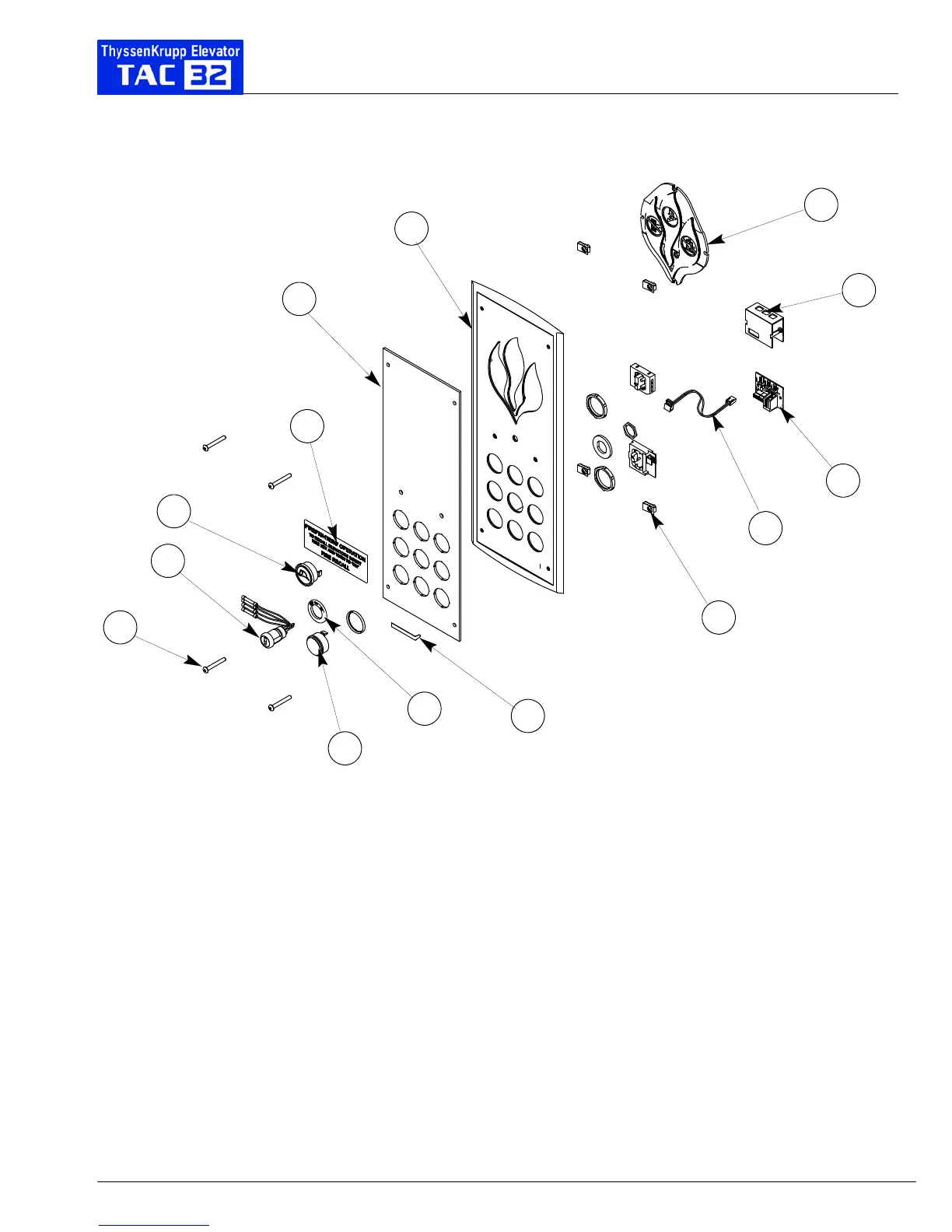

Hall Station Assembly
8503AN_5
1
2
4
5
3
7
8
9
14
10
12
11
13
6
ITEM PART NO. PRINT NO. DESCRIPTION
1 9752043 108288 FS, Screw, CSBHS, #10-24 x 1.500 SE
138148 FS, Screw, CSBHS, #10-24 x 1.500 SE, Mirror
9830224 130126 FS, Screw, CSBHS, #10-24 x 1.500 B, Laquered
130127 FS, Screw, CSBHS, #10-24 x 1.500 B, Mirror, Laquered
2SeeKeySwitches
3 680AP12 J ewel Assembly, Firehat
4 680AX See Push Button Assembly
5 See Key Core Bezels
6 297CG1 Contact Blade, Ground
7 580AET1 Marker, Hall Fire Service
8 141LM1 Faceplate, Parametric, #4 SS
141LM2 Faceplate, Parametric, #8 SS
141LM3 Faceplate, Parametric, #4 Muntz Metal
141LM4 Faceplate, Parametric, #8 Muntz Metal
To Next Page
