ThyssenKrupp TAC 32 User Manual

Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010

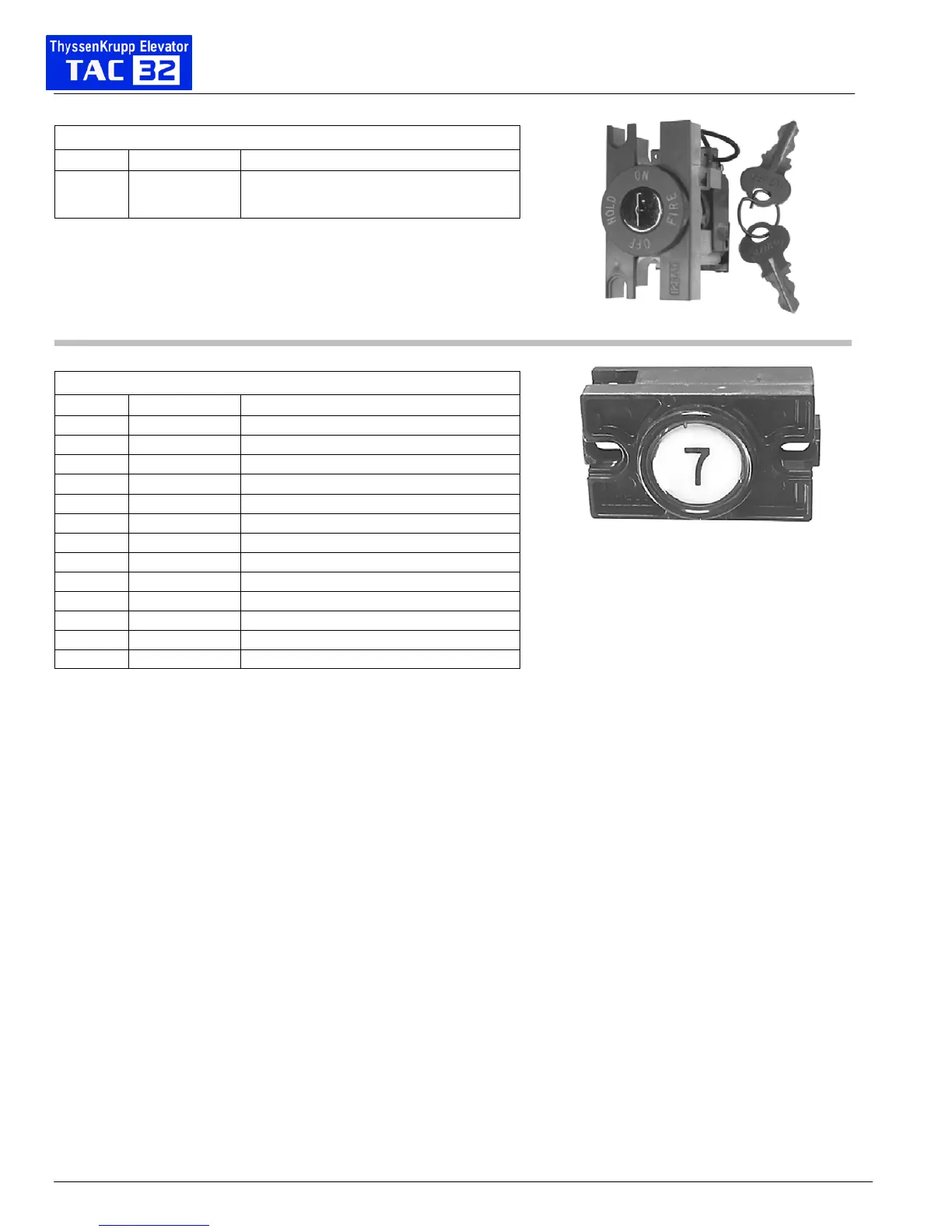

Traditional Signal Fixtures-26
Traditional Key Switch
Part No. Print No. Description
9715990 138513
Switch, Key, V7, H2389 Key, Micro Switch, 3 Pos,
”Car Fire Service,” Vertical, ”Off” ”Hold” ”On”
”Fire”
Traditional Push Button
Part No. Print No. Description
9822800 108301 Push Button Assembly, Marked ”1”
9822914 108310 Push Button Assembly, Marked ”10”
9822811 108302 Push Button Assembly, Marked ”2”
9822823 108303 Push Button Assembly, Marked ”3”
9822835 108304 Push Button Assembly, Marked ”4”
9822847 108305 Push Button Assembly, Marked ”5”
9822859 108306 Push Button Assembly, Marked ”6”
9822872 108307 Push Button Assembly, Marked ”7”
9822884 108308 Push Button Assembly, Marked ”8”
9822902 108309 Push Button Assembly, Marked ”9”
9822938 108335 Push Button Assembly, Marked ”B”
9822963 108339 Push Button Assembly, Marked ”G”
9822940 108333 Push Button Assembly, Marked ”L”
