Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010
Signa 4 Signal Fixtures-29
4

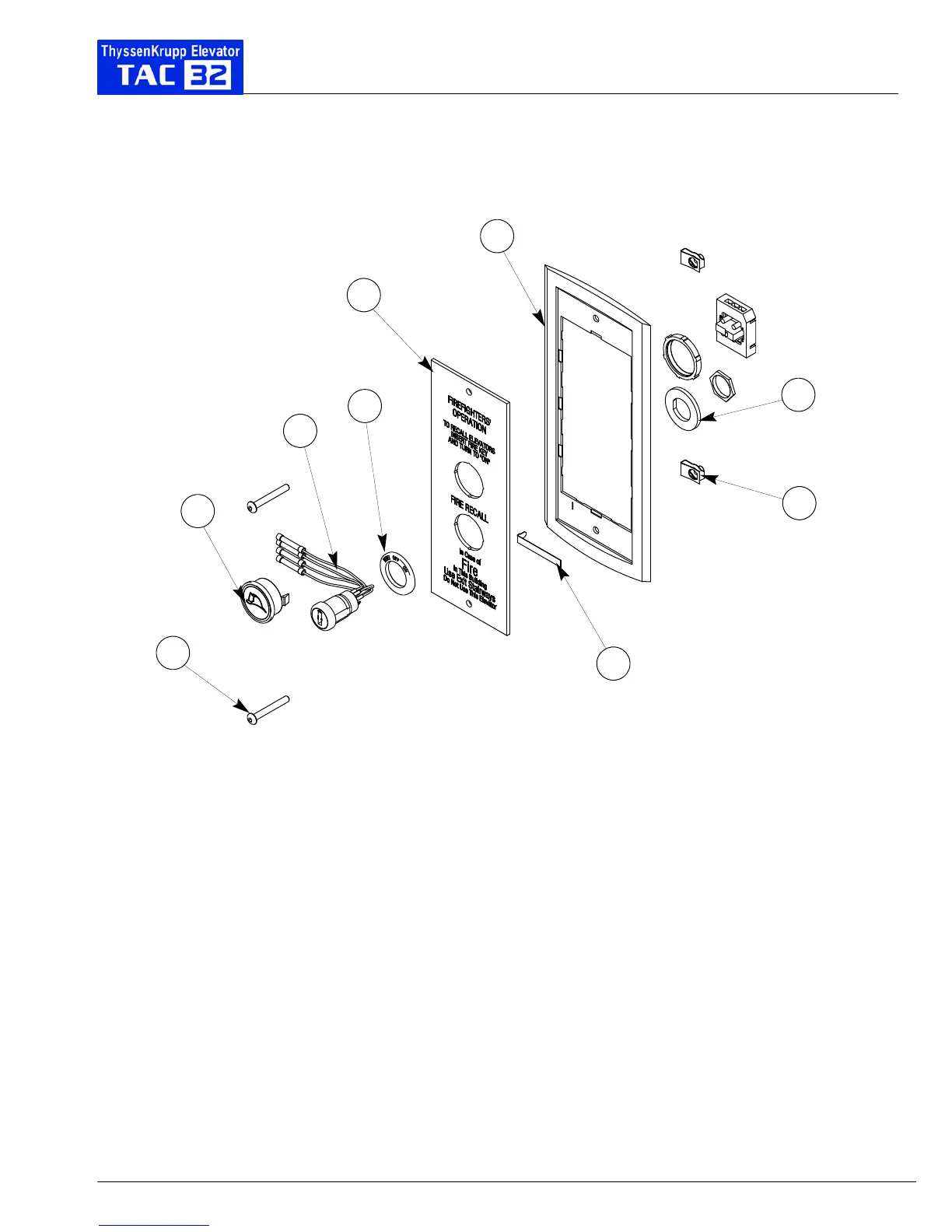

Hall Station Assembly
8503AN_3
1
2
3
4
5
9
6
7
8
ITEM PART NO. PRINT NO. DESCRIPTION
1 9752043 108288 FS, Screw, CSBHS, #10-24 x 1.500 SE
138148 FS, Screw, CSBHS, #10-24 x 1.500 SE, Mirror
9830224 130126 FS, Screw, CSBHS, #10-24 x 1.500 B, Laquered
130127 FS, Screw, CSBHS, #10-24 x 1.500 B, Mirror, Laquered
2 680AP12 J ewel Assembly, Firehat
3SeeKeySwitches
4 See Key Core Bezels
5 141KK1 Faceplate, Fire Service, Mass. 2000, #4 SS
141KK2 Faceplate, Fire Service, Mass. 2000, #8 SS
141KK3 Faceplate, Fire Service, Mass. 2000, #4 Muntz Metal
141KK4 Faceplate, Fire Service, Mass. 2000, #8 Muntz Metal
141KK9 Faceplate, Fire Service, Mass. 1998, #4 SS
141KK10 Faceplate, Fire Service, Mass. 1998, #8 SS
141KK11 Faceplate, Fire Service, Mass. 1998, #4 Muntz Metal
141KK12 FAceplate, Fire Service, Mass. 1998, #8 Muntz Metal
