Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010

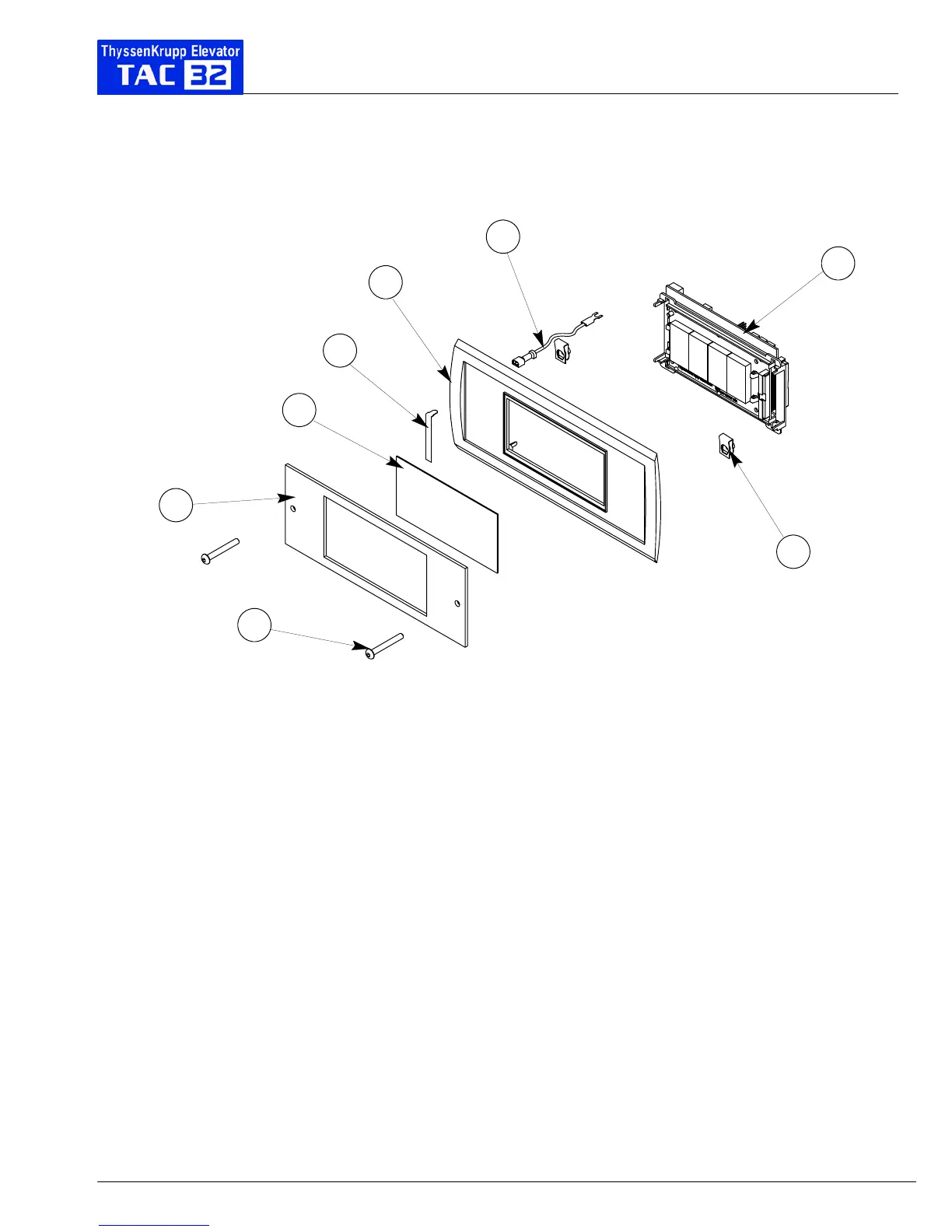

Signa 4 Signal Fixtures-19
CAN Position Indicator 178ME2
and LON Position Indicator 178ME4
1
2
3
4
5
6
8
7
ITEM PART NO. PRINT NO. DESCRIPTION
1 9752043 108288 FS, Screw, CSBHS, #10-24 x 1.500 SE
138148 FS, Screw, CSBHS, #10-24 x 1.500 SE, Mirror
9830224 130126 FS, Screw, CSBHS, #10-24 x 1.500 B, Lacquered
130127 FS, Screw, CSBHS, #10-24 x 1.500 B, Mirror, Lacquered
2 141KF1 Faceplate, Position Indicator, #4 SS
141KF2 Faceplate, Position Indicator, #8 SS
141KF3 Faceplate, Position Indicator, #4 Muntz Metal
141KF4 Faceplate, Position Indicator, #8 Muntz Metal
3 130CP1 Lens, Horizontal Position Indicator
4 297CG1 Contact Blade, Ground
5 141HJ9 Faceplate, Frame, Wall
6 900AD137 Wire Assembly, Ground, 10.000
7 178LP7 PCB Assembly, Serial PI (LON)
6300WR2 PCB Assembly, Serial PI (CAN)
8 9752018 35402 Fastener, Nut 10-24, Speed
