INSTALLATION
150
NA30 - Manual - 04 - 2022

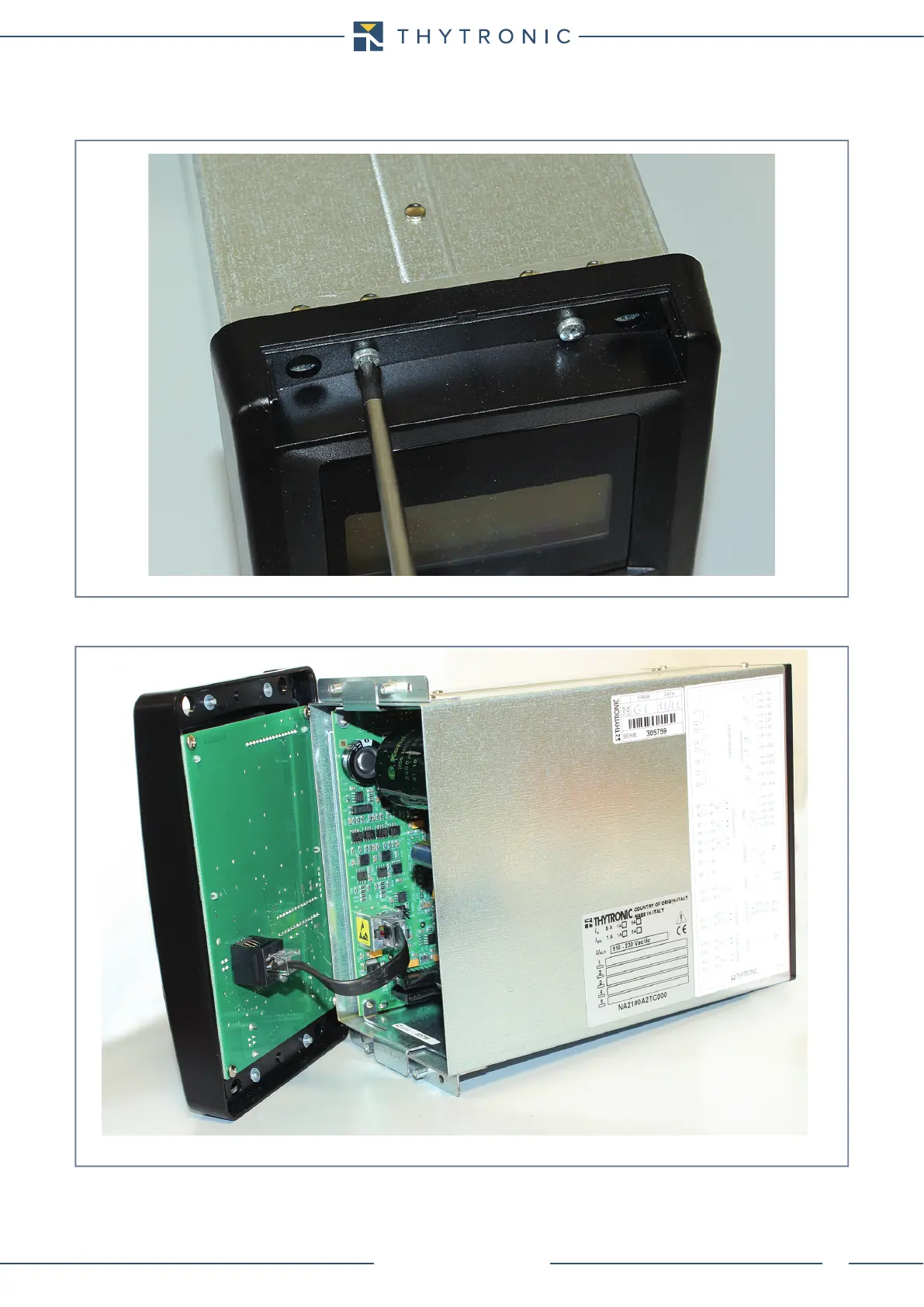

• Unscrew gradually back to back the four fastening screw in order avoid loss of the internal wash-
er.
Unmounting of the case from the switchboard is not needed.
• Split the MMI module and disconnect cable
set-in.ai
Unmounting
Split-MMI.ai
Split MMI module from fixed module
