INSTALLATION
151
NA30 - Manual - 04 - 2022

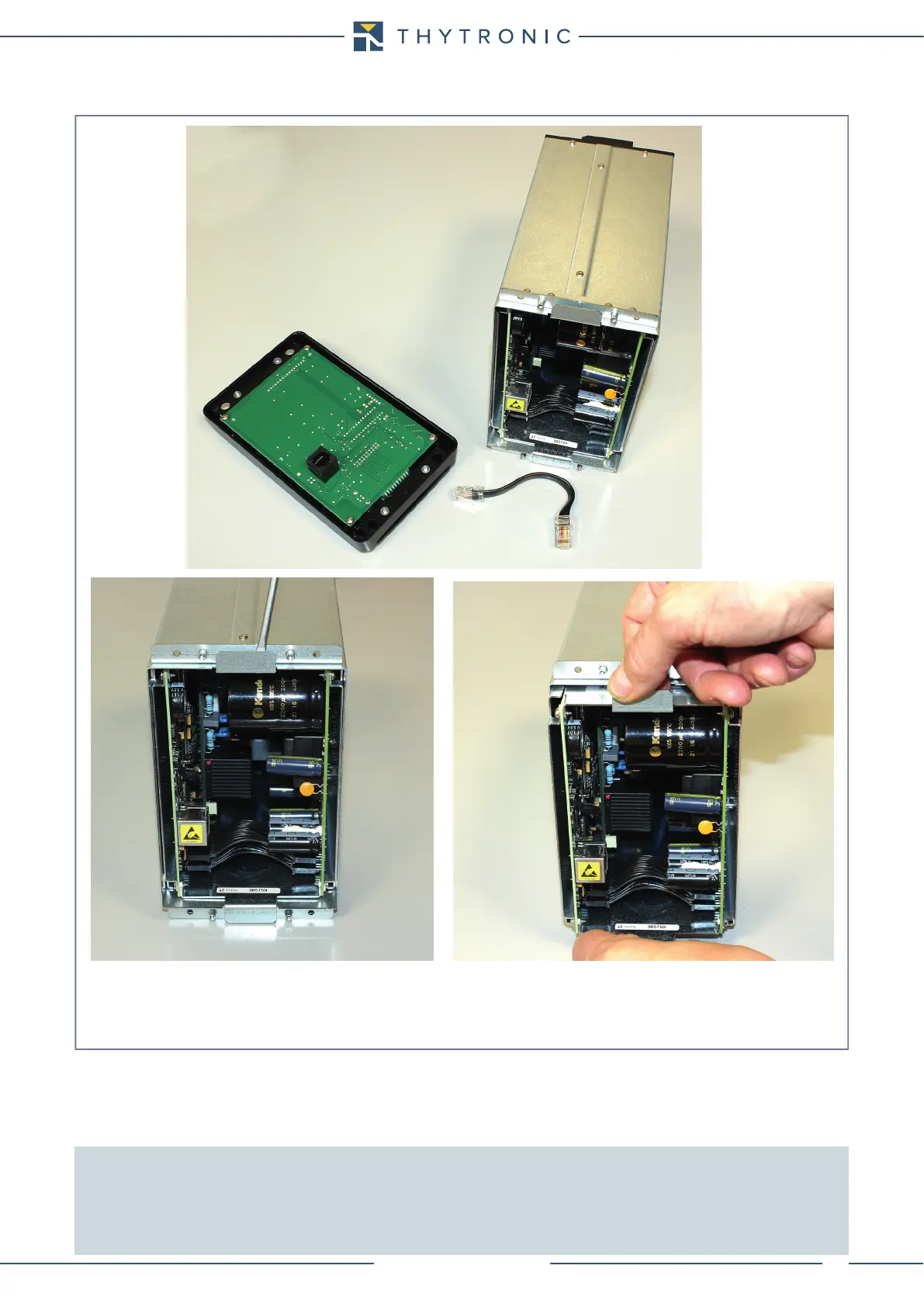

• Pull out the removable module grabbing the metal handles.
• Lean out the module on the grounded surface
[1]
,
• Set the dip-switches on the right-hand circuit board in accordance with the drawing shown be-
low,
Note 1 There are components present which are sensitive to electrostatic discharge.
When the module is removed, it is important to pay particular attention to avoid any accidental contact with the internal components.
In order to avoid the static electricity accumulated in the human body from causing damage, it is recommended to observe the following precautions:
- eliminate any potential differences between the human body and the device by touching the metallic case,
- avoid touching the printed circuit and connections (tracks, component terminals),
- avoid handing the device to others,
- set the programming DIPs by using antistatic tools.
extract.ai
Pull-out the module from the case
