INSTALLATION

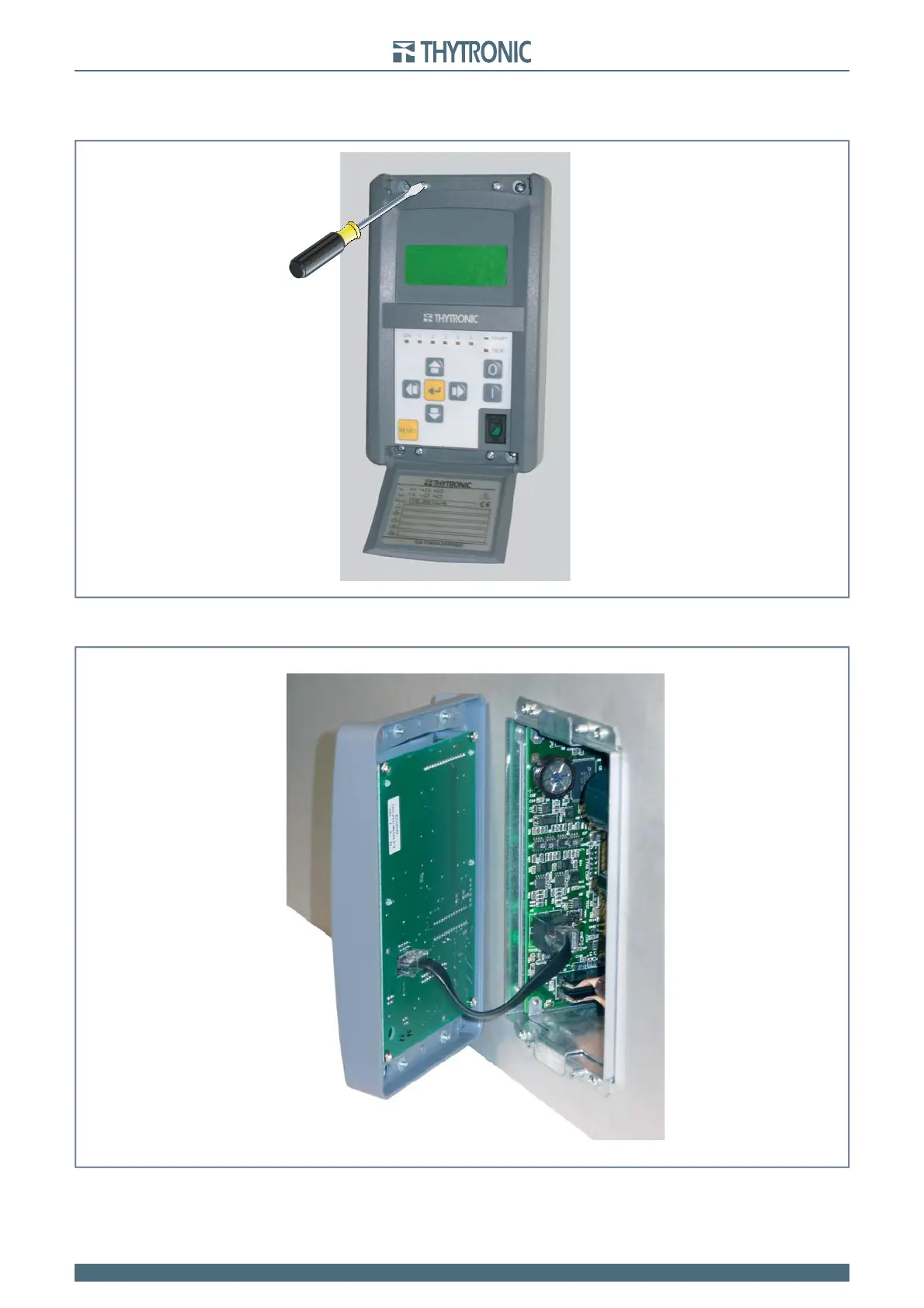

Unscrew gradually back to back the four fastening screw in order avoid loss of the internal wash-
er.
Unmounting of the case from the switchboard is not needed.
Split the MMI module and disconnect cable
•
•
set-in.ai
Unmounting
set-in.ai
Unmounting
Split-MMI.ai
Split MMI module from fixed module
Split-MMI.ai
Split MMI module from fixed module
