14. Power Supply
Do not use any other power supply than the one delivered by Tilgin. Using the wrong power
supply could be hazardous to you or the product.
The power supply shall be installed near the gateway and shall be easily accessible.

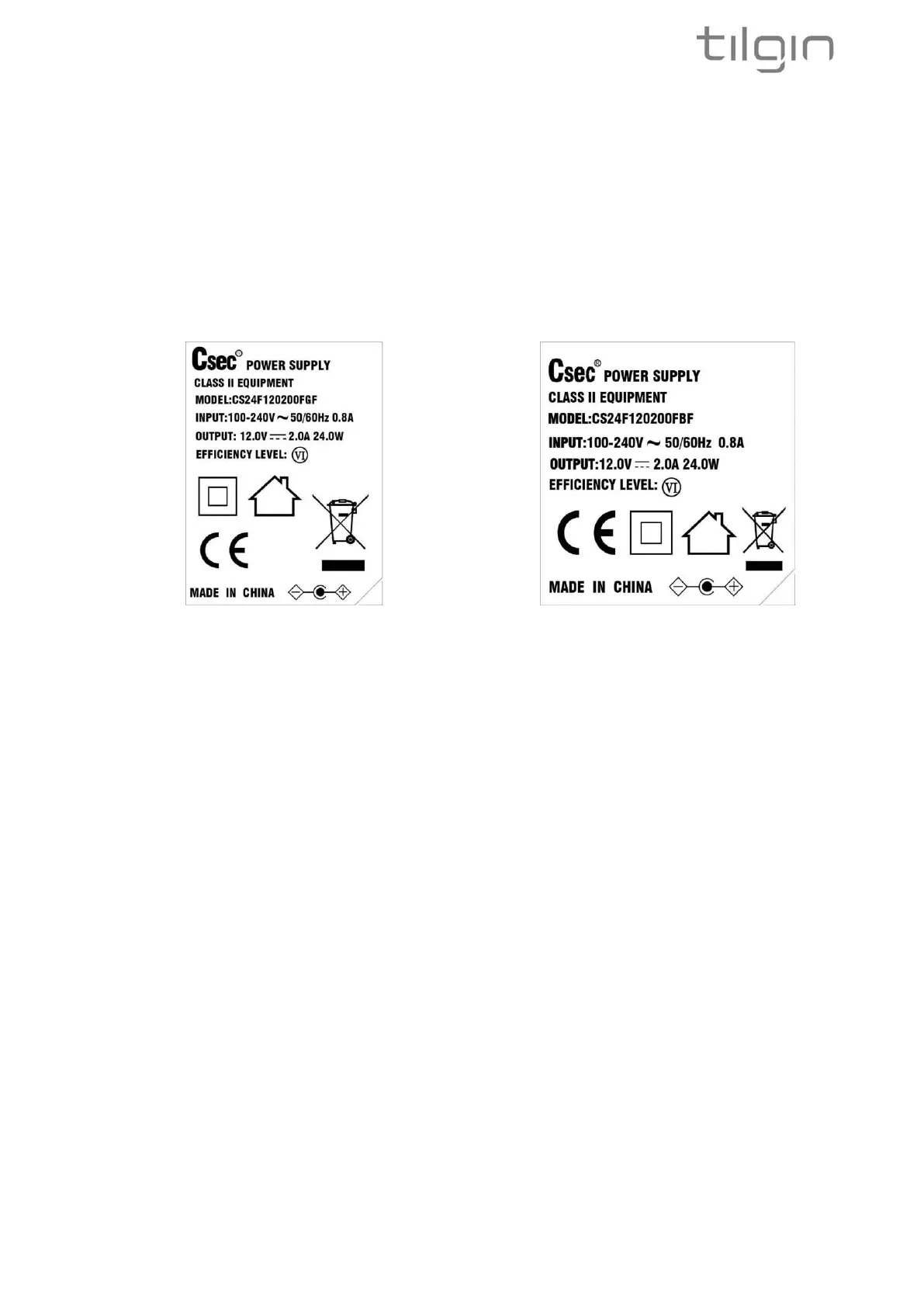

The power supply is approved by one or more of the following safety organizations:
1. 2.
Power supplies defined for these products.
1. For EU
CSEC: CS24F120200FGF, Input: 100-240V 50/60Hz 0.8A;
Output: 12V 2.0A 24.0W, supplied by Chou Sen Electronics (Shenzhen) Co., Ltd.
Average active efficiency: 86.2% (Min.)
Efficiency at low load (10%): 81.0% (Min.)
No load power consumption: 0.10W (Max.)
2. For UK
CSEC: CS24F120200FBF, Input: 100-240V 50/60Hz 0.8A;
Output: 12V 2.0A 24.0W, supplied by Chou Sen Electronics (Shenzhen) Co., Ltd.
Average active efficiency: 86.2% (Min.)
Efficiency at low load (10%): 81.0% (Min.)
No load power consumption: 0.10W (Max.)
