TiLite ZRA - Flip-Back Footrest; Adjusting the Angle; Adjusting the Height;Replacing

3-5
ZRA_Aero Z Owner’s Manual
OM_ZRA_Aero Z_0913RevA
CHAPTER 3: FOOTRESTS

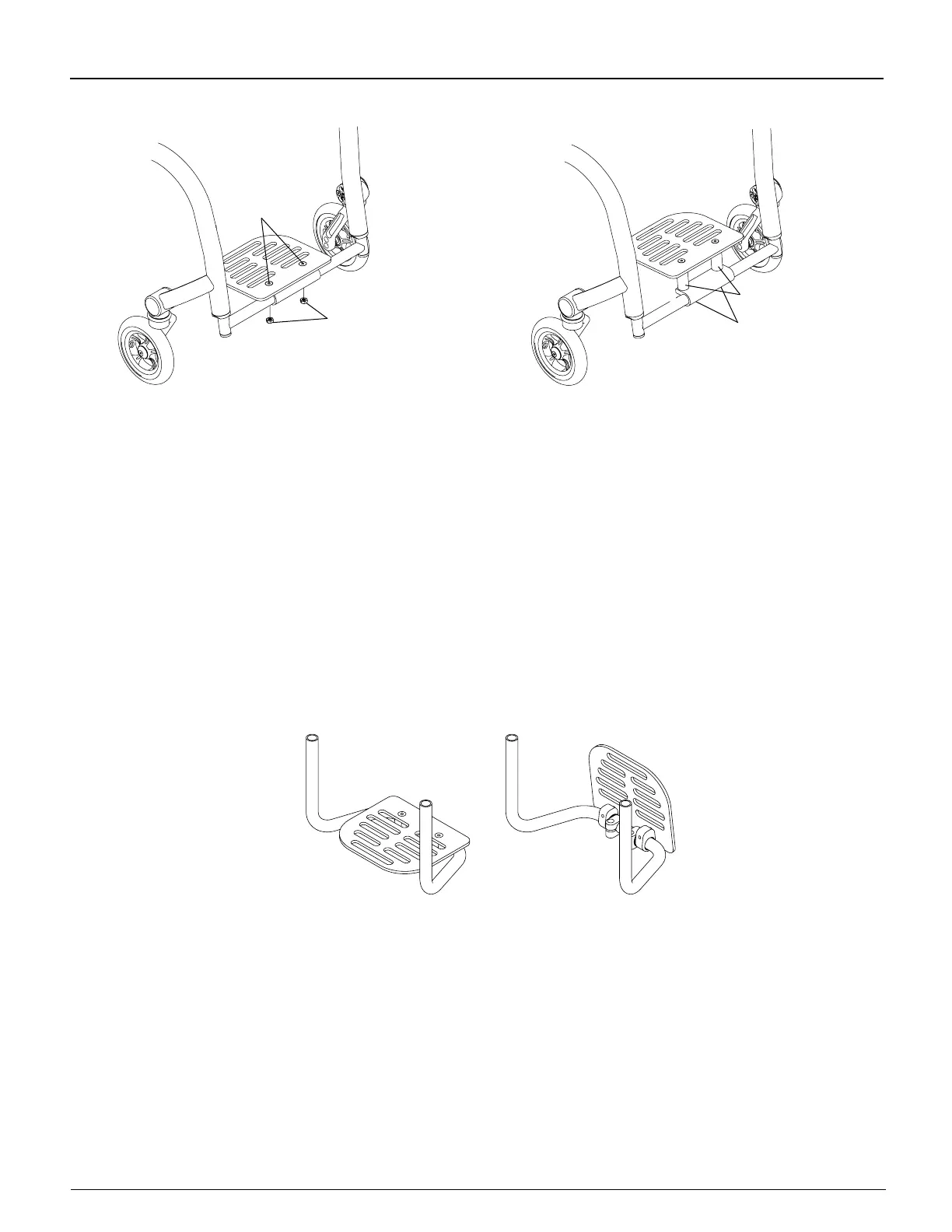

Figure 3-8
Angle Adjustable High Mount Footrest
Allen
Screws
Locknuts
Figure 3-9
Angle Adjustable High Mount Footrest with Extension Tubes
Extension Tubes
Allen Screws
Adjusting the Height/Replacing
The Angle Adjustable High Mount Footrest for the Aero Z wheelchairs can be replaced or the height adjusted by using
the tools and following the procedures under “Titanium Footrest (Aero Z)” on page 3-3.
Flip-Back Footrest
The Flip-Back Footrest can be ipped upward and backward to position the footplate out of the way for purposes of
transferring into and out of the wheelchair. See Figure 3-10.
You can adjust the height of, or replace, the Flip-Back Footrest by using the tools and following the procedures for
adjusting the height of, or replacing a footrest as set forth under “Titanium Footrest (ZRA)” on pages 3-2 and 3-3 or
under “Titanium Footrest (Aero Z)” on page 3-3.
Figure 3-10
Flip-Back Footrest
Adjusting the Angle
Tools needed:
• 3/16” Allen Wrench
1. Loosen, but do not remove, the two Allen screws that secure the stop clamps to the footrest extension tube. See
Figure 3-11.
2. Adjust the footrest to the desired angle.
3. Tighten the Allen screws. Make sure the screws are secure and will not permit the footplate to rotate downward
under weight.
