CHAPTER 4: BACKRESTS And PUSH HAndLES

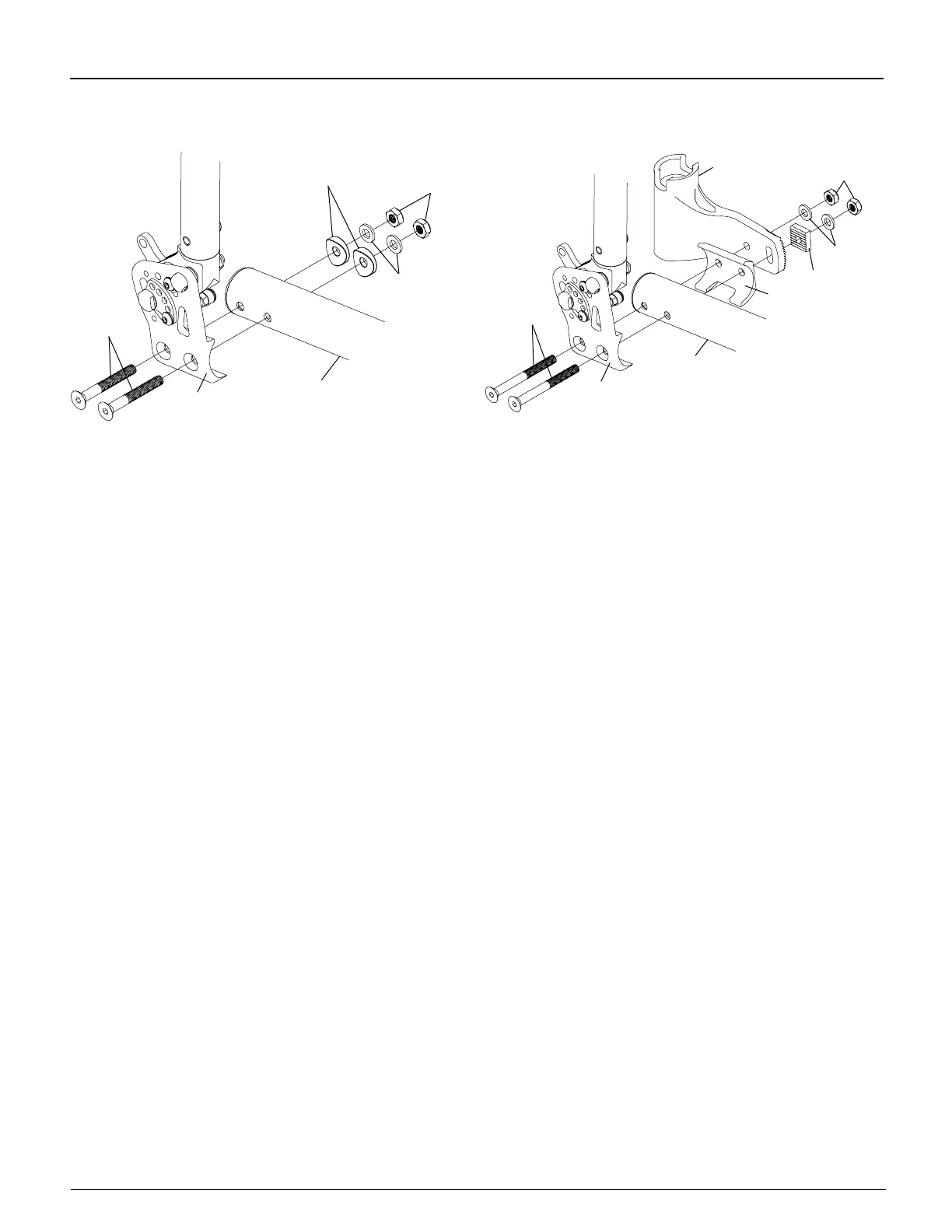

Figure 4-7
Adjusting the Depth
Allen
Screws
Back
Mount
Seat
Tube
Nylock
Nuts
Washers
Saddles
Figure 4-8
Adjusting the Depth with Swing Away Armrests
Allen
Screws
Back
Mount
Seat
Tube
Nylock
Nuts
Washers
Receiver
Locking Block
Backrest
Saddle
Bolt-On Push Handles
Note: Bolt-On Push Handles should only be used on aluminum backrests.
Mounting
Tools Needed:
• 3/16” Allen Wrench
• 5/32” Allen Wrench
1. See Figure 4-9 for the correct location to mount the Bolt-On Push Handles to the rigidizer bar.
2. Assemble the two halves of the clamp around the rigidizer bar. See Figure 4-10.
3. Using the 3/16” Allen wrench, insert the 1” Allen screw through a washer into the bottom hole on the clamp and
loosely tighten.
4. Insert the push handle into the clamp and align the holes in the push handle with the two upper holes in the
clamp.
5. Using the 5/32” Allen wrench, insert the two 1-1/8” Allen screws through the washers, the two halves of the clamp
and the push handle and securely tighten.
6. Make sure the push handle is correctly positioned for proper pushing and securely tighten the 1” Allen screw.
IWARNING
Your assistant or attendant should NEVER attempt to lift a wheelchair up a curb, step or ight of stairs by lifting on
any removable (detachable) parts, such as Bolt-On Push Handles. Similarly, your assistant or attendant should
NEVER attempt to lower a wheelchair down a curb, step or ight or stairs by holding onto any removable (detachable)
parts, such as the Bolt-On Push Handles. If you ignore this Warning, the removable parts, such as the Bolt-On Push
Handles, could detach from the wheelchair causing you to fall, tip over or lose control of the wheelchair and seriously
injure yourself or others or damage the wheelchair.
