CHAPTER 6: SIDE GUARDS
Fold-Down Rigid Side Guards (Aluminum and Carbon Fiber)
Using Fold-Down Side Guards
To fold down, simply remove the seat cushion and push the top of the side guard toward the seat sling. To unfold,
simply pull the side guard up away from the seat sling. See Figure 6-4.

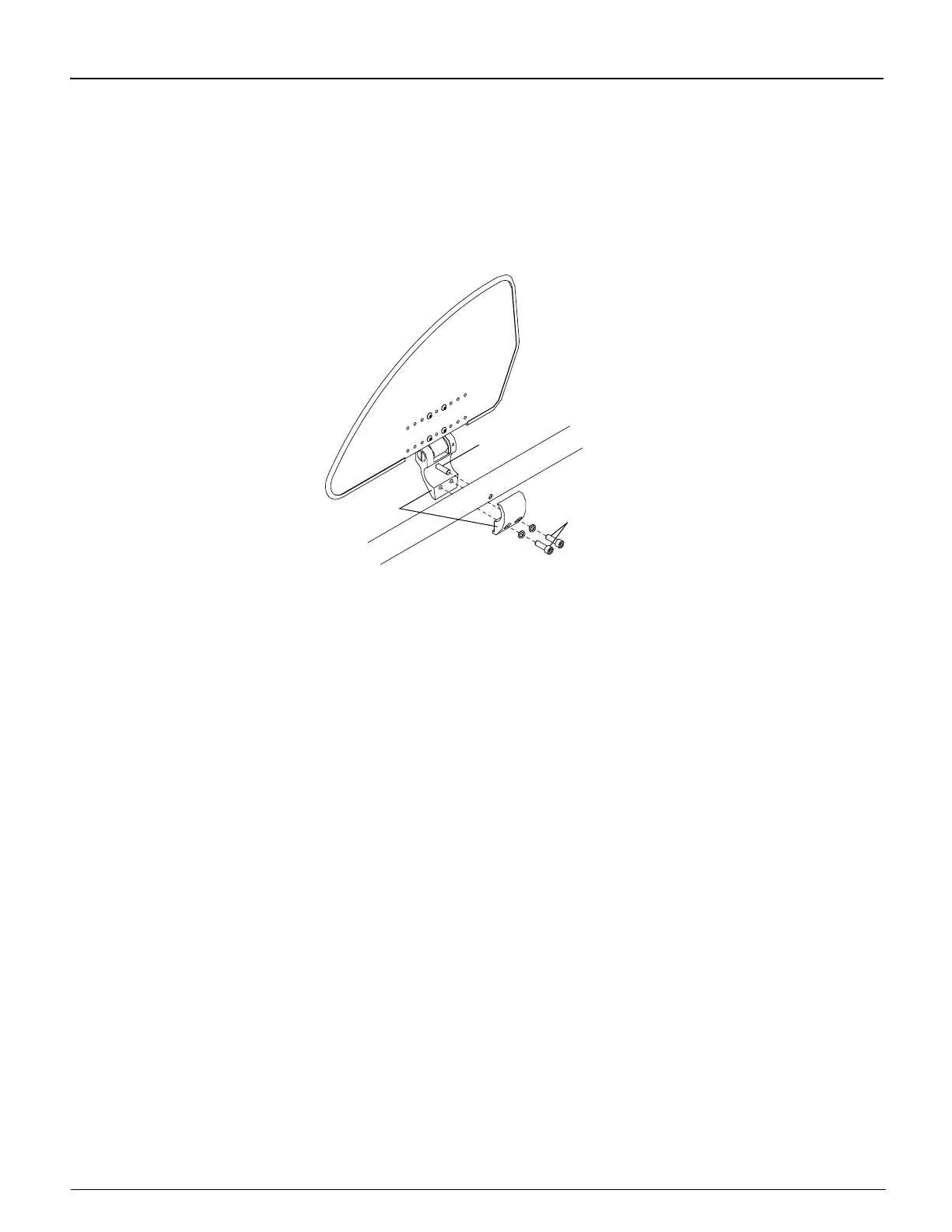

Figure 6-4
Removing/Reinstalling
Allen
Screws
Clamp
Dowel
Pin
Removing
Tools Needed:
• 3/16” Allen Wrench
1. Remove the two Allen screws that secure the two halves of the side guard clamp. See Figure 6-4.
2. Remove the Fold-Down Side Guard clamp assembly.
Reinstalling
Tools Needed:
• 3/16” Allen Wrench
1. Align the two halves of the side guard clamp around the seat tube of the frame. See Figure 6-4.
Note: The half of the side guard clamp to which the side guard mount is attached has a dowel pin protruding from
the clamp that must be inserted into the side guard clamp hole on the wheel side of the frame.
2. Insert the two Allen screws through the washers and the two halves of the clamp and securely tighten.
Fendered Carbon Fiber Side Guard
Using Fendered Side Guards
To remove the Fendered Side Guard, lift the side guard out of the side guard mount. To replace, place the bracket
into the slot between the side guard mount and the clamp. Make sure the rearward end of the side guard is inside the
stabilizer tab. See Figure 6-5.
To adjust the fendered side guards, see “Adjusting” on page 6-2.
