CHAPTER 3: FOOTRESTS

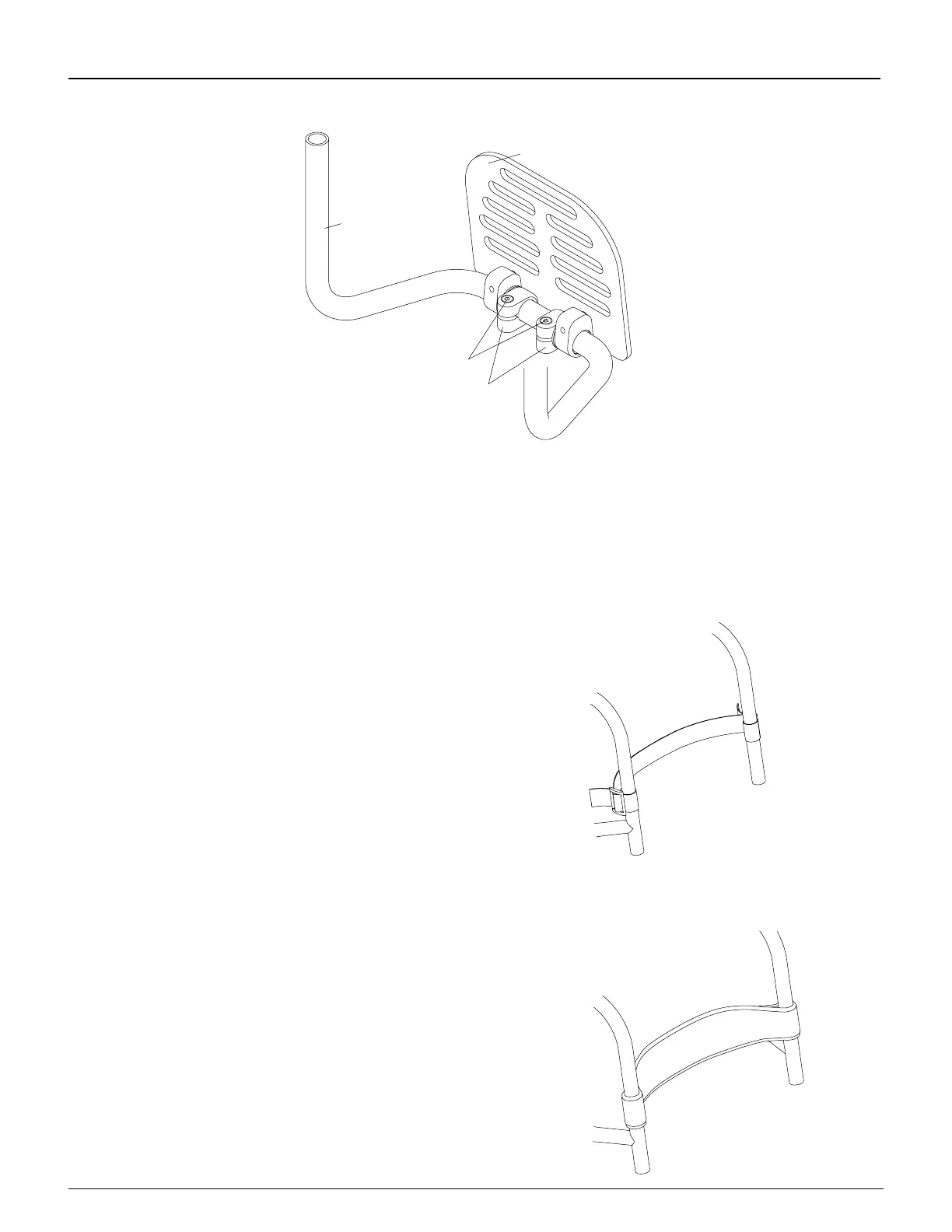

Figure 3-11
Adjusting the Angle
Footplate
Footrest
Extension Tube
Stop
Clamp
Allen
Screws
Adjusting the Height/Replacing
You can adjust the height of, or replace, the ip back footrest by using the tools and following the procedures for
adjusting the height of, or replacing a footrest as set forth under “Titanium Footrest (ZRA)” on pages 3-2 and 3-3 or
“Titanium Footrest (Aero Z)” on page 3-3.
Buckle Adjustable Calf Strap
Buckle Adjustable Calf Strap is shown in Figure 3-12.
Install the calf strap as shown in Figure 3-12.
Velcro® Adjustable Calf Strap/ Velcro®
Padded Adjustable Calf Strap
The Adjustable Calf Strap and Padded Adjustable Calf
Straps are shown in Figure 3-13. Install the calf straps as
shown in Figure 3-13.
Figure 3-12
Buckle Adjustable Calf Strap
Figure 3-13
Padded Adjustable Calf Strap
