Tippmann X7 PHENOM - Page 19

19
E
N
G
L
I
S
H

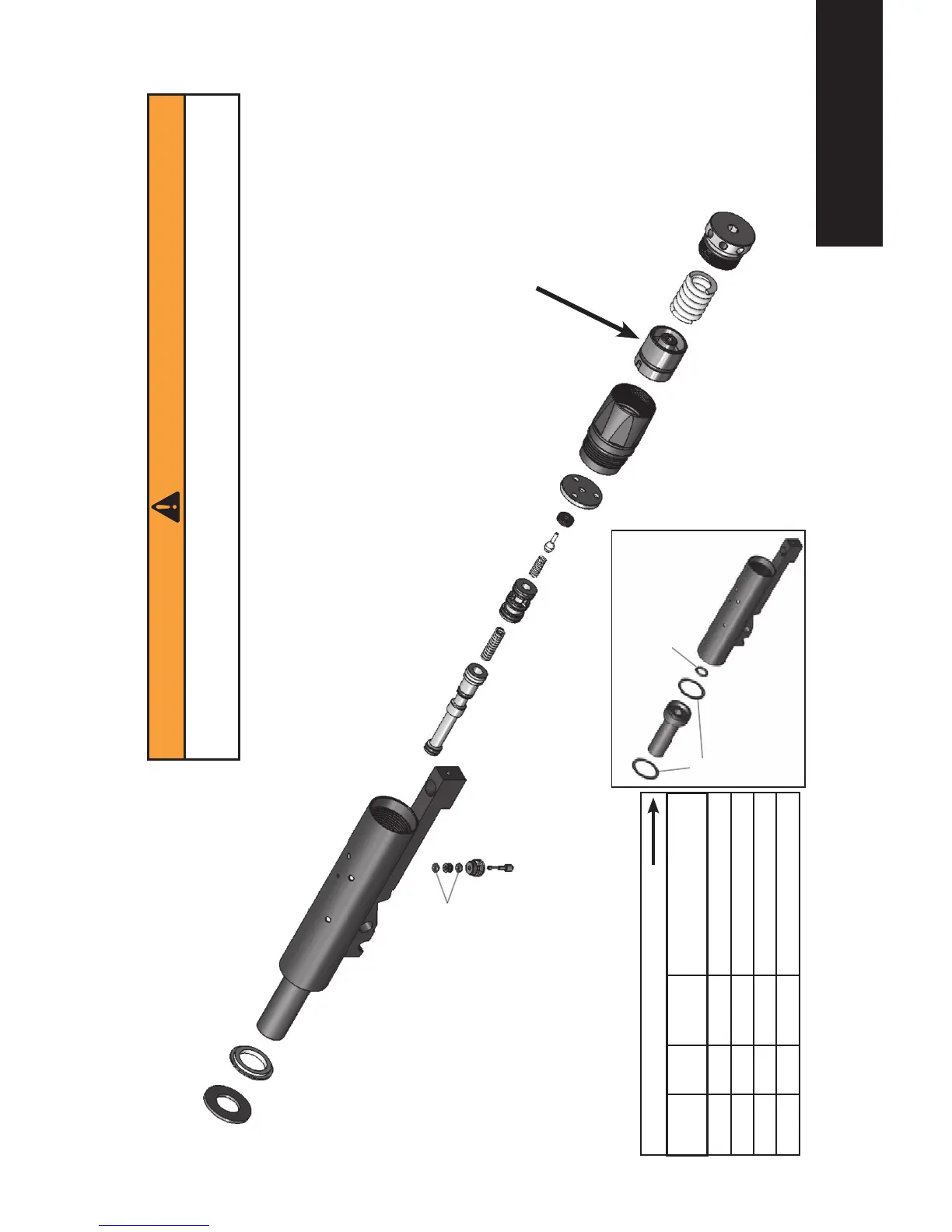

Figure 13: Flex Valve Assembly
G
G = Use Tippmann grease on item 63 every 8 - 10,000 shots.
48
49
47
50
51
52
53
54
55
56
61
63
65
64
57
58
59
60
WARNING
Do not disassemble this marker while it is pressurized. Do not pressurize a partially assembled marker.
Tippmann
®
Service Department
1-800-533-4831 www.tippmann.com
Rev. 04/13/10
6
5
1
4
Power Tube Assembly
ITEM
NO. QTY. PT. NO. DESCRIPTION
1 1 TA30024 Valve Body, Machined
4 1 TA30050 O-Ring, 2-011
5 2 TA30056 Spiral Retaining Ring, .875” Bore
6 1 TA30102 Power Tube Assembly
Figure 14. Power Tube and Valve Body
