on page 14 and take your air/CO2 cylinder to a “C5” Certied Airsmith for inspection
or contact the cylinder manufacturer.

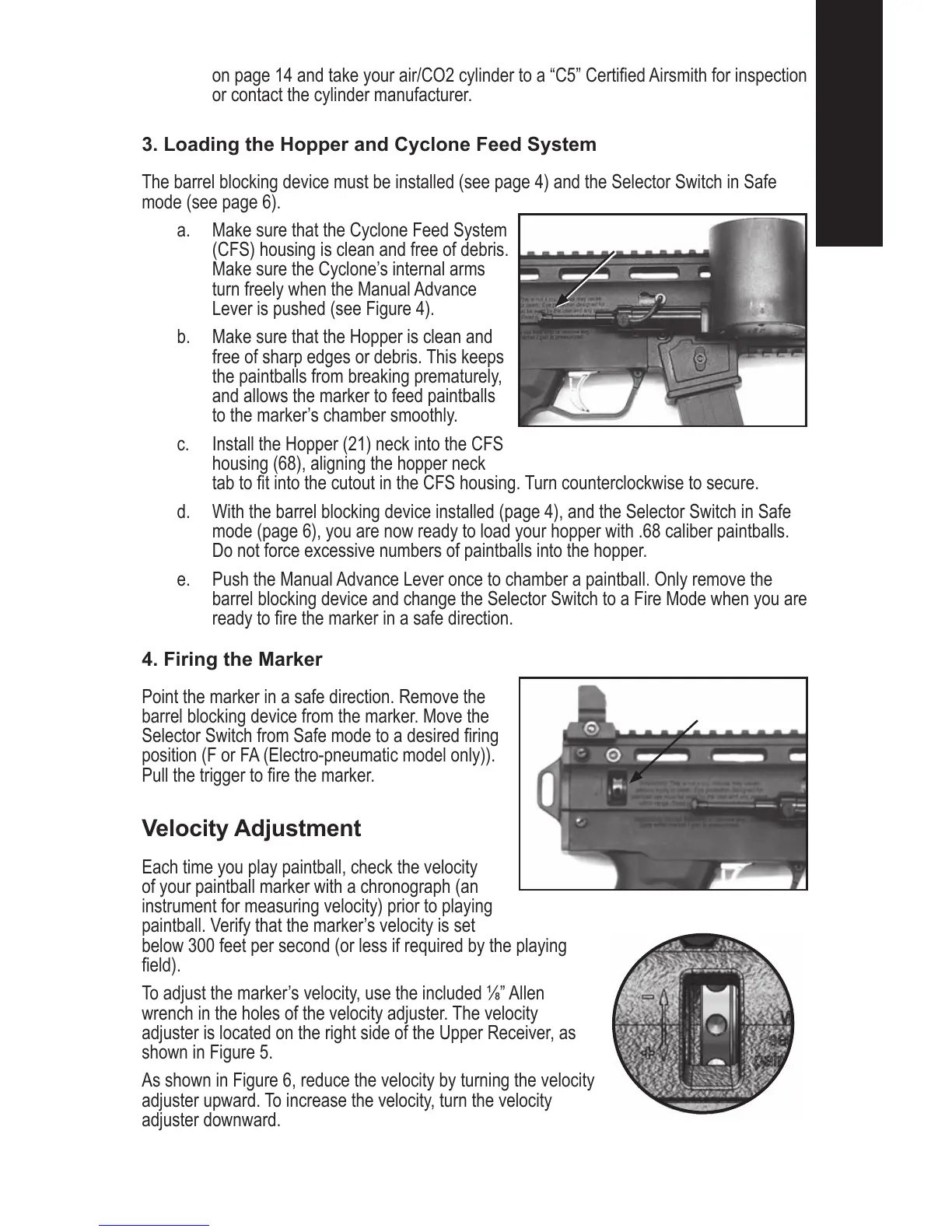

3. Loading the Hopper and Cyclone Feed System
The barrel blocking device must be installed (see page 4) and the Selector Switch in Safe
mode (see page 6).
a. Make sure that the Cyclone Feed System
(CFS) housing is clean and free of debris.
Make sure the Cyclone’s internal arms
turn freely when the Manual Advance
Lever is pushed (see Figure 4).
b. Make sure that the Hopper is clean and
free of sharp edges or debris. This keeps
the paintballs from breaking prematurely,
and allows the marker to feed paintballs
to the marker’s chamber smoothly.
c. Install the Hopper (21) neck into the CFS
housing (68), aligning the hopper neck
tab to t into the cutout in the CFS housing. Turn counterclockwise to secure.
d. With the barrel blocking device installed (page 4), and the Selector Switch in Safe
mode (page 6), you are now ready to load your hopper with .68 caliber paintballs.
Do not force excessive numbers of paintballs into the hopper.
e. Push the Manual Advance Lever once to chamber a paintball. Only remove the
barrel blocking device and change the Selector Switch to a Fire Mode when you are
ready to re the marker in a safe direction.
4. Firing the Marker
Point the marker in a safe direction. Remove the
barrel blocking device from the marker. Move the
Selector Switch from Safe mode to a desired ring
position (F or FA (Electro-pneumatic model only)).
Pull the trigger to re the marker.
Velocity Adjustment
Each time you play paintball, check the velocity
of your paintball marker with a chronograph (an
instrument for measuring velocity) prior to playing
paintball. Verify that the marker’s velocity is set
below 300 feet per second (or less if required by the playing
eld).
To adjust the marker’s velocity, use the included ⅛” Allen
wrench in the holes of the velocity adjuster. The velocity
adjuster is located on the right side of the Upper Receiver, as
shown in Figure 5.
As shown in Figure 6, reduce the velocity by turning the velocity
adjuster upward. To increase the velocity, turn the velocity
adjuster downward.
Figure 5: Velocity Adjuster Location
Velocity Adjuster
Figure 6: Velocity Adjuster
Detail
Figure 4: Manual Advance Lever for the
Cyclone Feed System
Cyclone Feed System
Manual Advance Lever
