Parts Listing

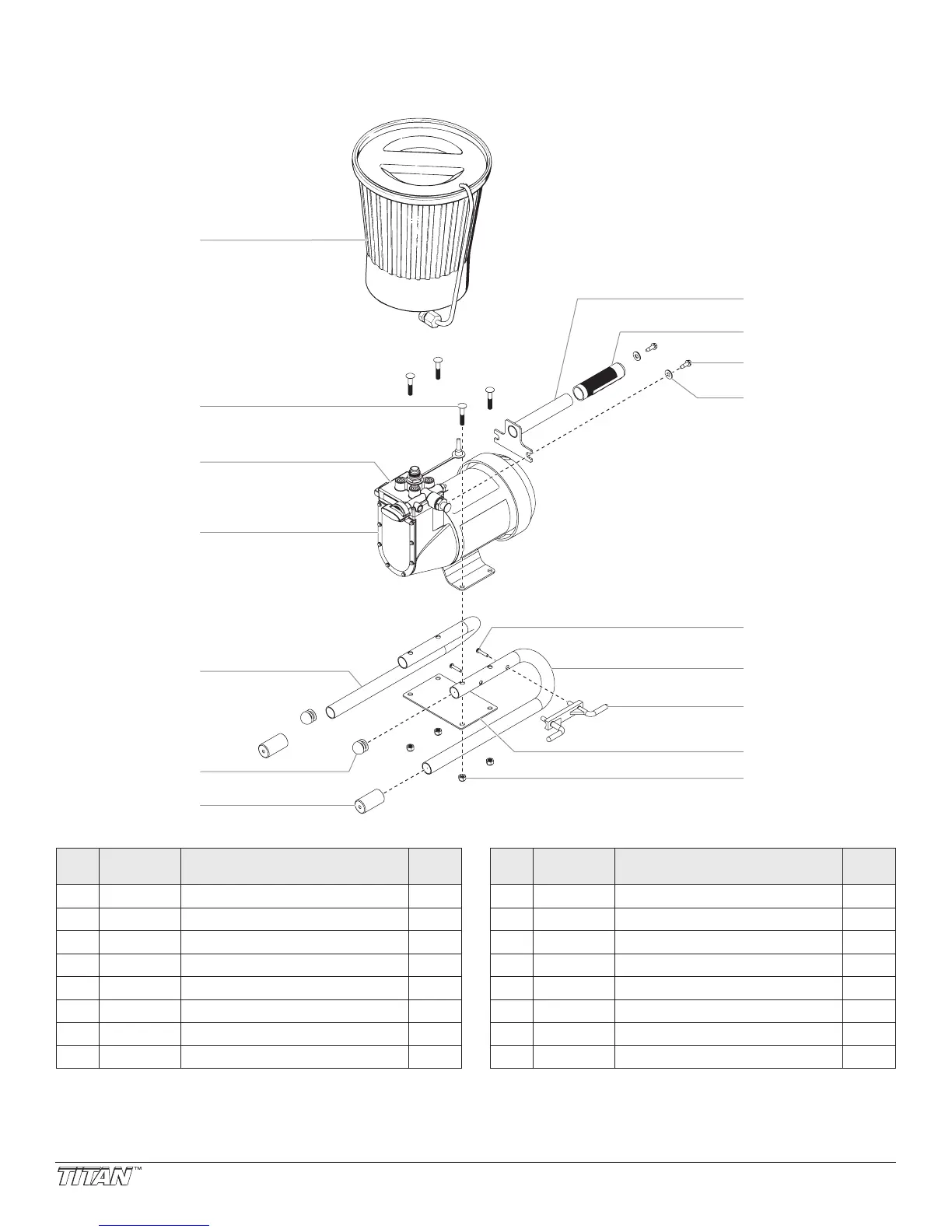

Main Assembly
1
2
3
4
10
11
12
13
14
15
16
8
9
5
6
7
Item Part No. Description Qty.
1 0288144 Hopper assembly 1
2 9801533 Carriage bolt 4
3 ---------- Pump head assembly 1
4 0555124 Diaphragm pump 1
5 0508271 Left leg 1
6 0551525 Plug 2
7 0555513 Tube cap 2
8 0508259 Handle assembly 1
Item Part No. Description Qty.
9 0288478 Handle grip 1
10 0508276 Screw 2
11 9820206 Washer 2
12 0508660 Screw 2
13 0508270 Right leg 1
14 0508377 Cord wrap 1
15 0508267 Mounting plate 1
16 9811122 Lock nut 4
