Titan ED655 - Diaphragm Pump

© Titan Tool Inc. All rights reserved. 17

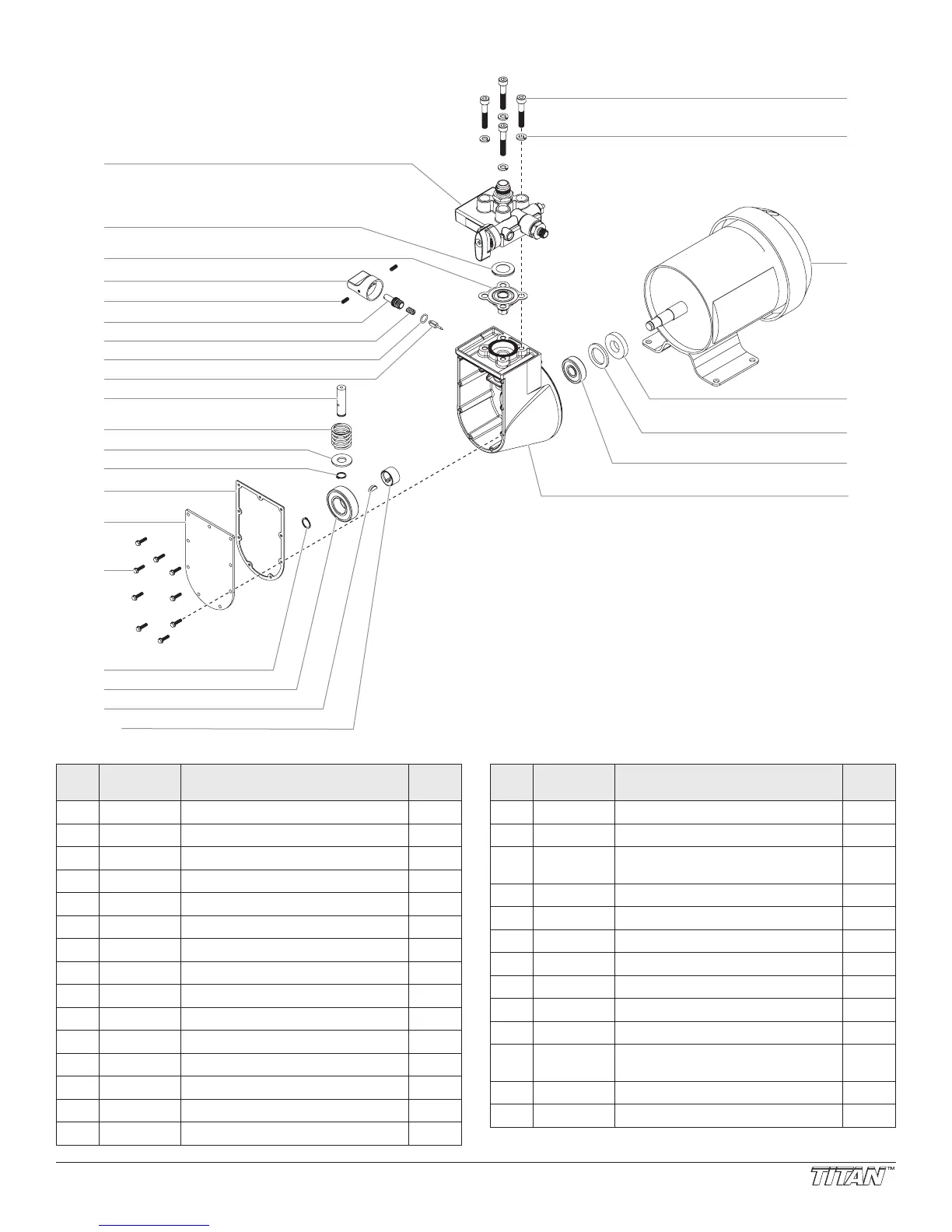

Diaphragm Pump (P/N 0555124)
17
18
19
18
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
20
21
22
23
25
24
26
Item Part No. Description Qty.
1 0555123 Pump head 1
2 0270494 Diaphragm ring 1
3 0278240 Diaphragm 1
4 0288775 Pressure control knob 1
5 9801109 Set screw 2
6 0270529 Valve stem 1
7 0047373 Pressure regulating spring 1
8 0089518 O-ring 1
9 0089475 Pressure valve needle 1
10 0278339 Hydraulic piston 1
11 0005311 Piston spring 1
12 0270548 Piston washer 1
13 0089456 Retainer 1
14 0278359 Gasket 1
15 0278341 Hydraulic cover 1
Item Part No. Description Qty.
16 9800049 Screw 9
17 0047393 Retaining ring 1
18 0090031 Eccentric sleeve and bearing
assembly
1
19 0089829 Shaft key 1
20 9900355 Socket screw 4
21 9921601 Lock washer 4
22 0270546 Motor (includes items 27 and 28) 1
23 0089930 Seal 1
24 0270477 Seal 1
25 0089929 Ball bearing 1
26 0278237 Hydraulic housing assembly
(includes items 23 – 25)
1
27 0270462 Fan (not shown) 1
28 0270612 Fan cover (not shown) 1
