ATV winch
Clutch knob manual

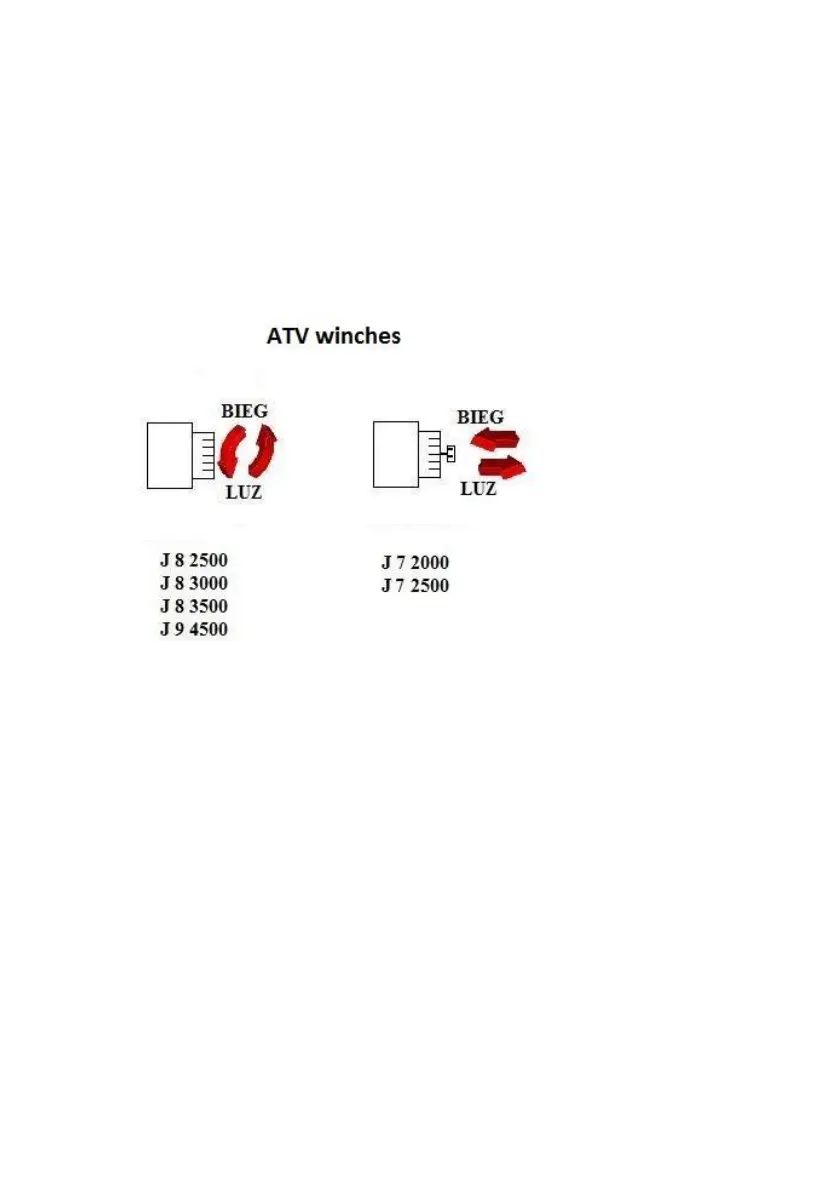

Pool and turn the clutch knob to the “free” position, like on the picture below. If the
rope is with the load withstand may appear. Do not force the clutch to turn- pull out
some rope and make a less stretch. Then pull, turn the knob and pull out the rope to
catch the load. Check if on the drum are still 8 rolls of the rope. Connect the drum
with turning the clutch knob again to the “ on” position.
General tips:
1. Do not wrap the rope around any objects and mount the hook with steel rope
it may damage the rope while pulling.
2. Keep your hands, legs, cloths, hair and jewelry away from the working winch
and the rope.
3. Do not use the winch with broken or damaged rope.
4. Do not allow anybody to stand close to working winch and rope. If the rope
breaks it may cause serious personal injuries. Always stand in safe distance.
5. Do not leave the winch switched on while you are not working with it.
